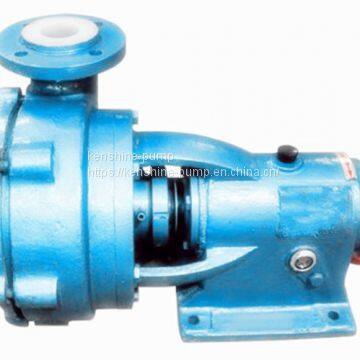

UHB-ZK Corrosion Resistant Slurry Centrifugal Pump

FOB Price

US$ 300 - 10000 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	kenshine-pump	Place of Origin	China
Model Number	100UHB-ZK-80-65	Application	Other, slurry transfer
Fuel	Other, electric motor	Power	Electric
Usage	Other, slurry transfer	Theory	Centrifugal Pump
Standard or Nonstandard	Standard	Structure	Single-stage Pump
Pressure	Low Pressure

Product Description

UHB-ZK series anticorrosive and wear-resisting pump belongs to single-stage single-suction cantilever type centrifugal pump. The flow parts are made of steel lined with Ultra-high molecular weight polyethylene (UHMWPE) .

UHMWPE material is a new corrosion resistant and wear-resistant engineering plastics in the world. Its most outstanding advantage is that it has excellent abrasion resistance and impact resistance (especially low temperature impact resistance) among all plastics. No deformation ,no cracking and excellent corrosion resistance.

The remarkable feature of the pump is multi-function. The pump can be used in a variety of different conditions, such as the delivery of acid, alkaline liquid or slurry; All kinds of corrosive pulp in smelting industry; Various dilute acids in sulfuric acid industry; Environmental protection industry all kinds of sewage. The pump is corrosion resistant and wear resistant with the use of a very wide range.

Performance range:

Pump inlet/outlet:32 to 350mm

Flow rate:5 to 2600m3/h

Head:5 to 80m

Working temperature:-20 to 105 degree Celsius

Model	Flow Q(M3/H）	Head H（m）	SPEED（r/min）	Power		Inlet/Outlet	Weight（kg）
Model	Flow Q(M3/H）	Head H（m）	SPEED（r/min）	SHAFT	Motor	Inlet/Outlet	Weight（kg）
32UHB-2K-3-13	3	13	2900	0.3	0.75	32x25 80	80
32UHB-ZK-5-12	5	12	2900	0.42	0.75
32UHB-ZK-7-10	7	10	2900	0.5	0.75
32UHB-ZK-5-5	5	5	1450	0.25	0.75
32UHB-ZK-3-18	3	18	2900	0.4	1.1
32UHB-ZK-5-15	5	15	2900	0.55	11
32UHB-ZK-8-12	8	12	2900	0.7	11
32UHB-ZK-5-20	5	20	2900	0.72	1.1
32UHB-ZK-8-18	8	18	2900	1.2	1.5
32UHB-ZK-12-15	12	15	2900	1.3	2.2
32UHB-ZK-5-25	5	25	2900	1.1	2.2
32UHB-ZK-10-20	10	20	2900	1.6	2.2
32UHB-2K-15-15	15	15	2900	1.7	2.2
32UHB-2K-7.5-6	7.5	6	1450	0.4	0.75
40UHB-2K-10-18	10	18	2900	1.3	2.2	40x32	130
40UHB-ZK-15-15	15	15	2900	1.7	2.2
40UHB-2K-10-30	10	30	2900	2.2	3
40UHB-ZK-15-25	15	25	2900	2.7	3
40UHB-ZK-18-20	18	20	2900	2.6	3
50UHB-ZK-10-7.5	10	7.5	1450	0.6	1.1	50x40	170
50UHB-2K-10-35	10	35	2900	3.2	4
50UHB-2K-20-20	20	20	2900	3	4
50UHB-ZK-25-18	25	18	2900	3.2	4
50UHB-ZK-30-15	30	15	2900	3.1	4
50UHB-ZK-15-32	15	32	2900	3.5	5.5
50UHB-ZK-20-30	20	30	2900	4.3	5.5
50UHB-ZK-25-28	25	28	2900	5	5.5
50UHB-2K-12-40	12	40	2900	3.8	5.5
50UHB-2K-15-43	15	43	2900	5.6	7.5
65UHB-2K-15-8	15	8	1450	0.9	1.1	65x50	220
65UHB-2K-30-25	30	25	2900	53	5.5
65UHB-ZK-35-20	35	20	2900	5.1	55
65UHB-2K-40-15	40	15	2900	4.5	5.5
65UHB-ZK-30-32	30	3?	2900	6.5	7.5
65UHB-ZK-35-25	35	25	2900	6.2	7.5
65UHB-ZK-40-20	40	20	2900	5.9	7.5
65UHB-ZK-5-11	5	11	1450	0.6	11	65x50	270
65UHB-ZK-10-12.5	10	12.5	1450	1.2	2.2
65UHB-ZK-15-12.5	15	12.5	1450	1.6	2.2
65UHB-2K-10-45	10	45	2900	4.8	7.5
65UHB-ZK-10-40	10	40	2900	4.2	5.5
65UHB-ZK-20-50	20	50	2900	8.7	11
65UHB-ZK-30-50	30	50	2900	12	15
65UHB-2K-30-40	30	40	2900	9.6	11	65 x 50	270
65UHB-2K-10-55	10	55	2900	8.6	11
65UHB-ZK-B-10-50	10	50	2900	5 1	7.5
65UHB-ZK-B-10-55	10	55	2900	8.6	11
65UHB-ZK-B-20-50	20	50	2900	8.7	11
65UHB-ZK-B-20-55	20	55	2900	11.8	15
65UHB-ZK-B-30-50	30	50	2900	12	15
65UHB-ZK-B-30-55	30	55	2900	15.3	18.5
65UHB-ZK-20-20	20	20	1450	3.2	4	65 x 50	330
65UHB-2K-35-15	35	15	1450	5.1	5.5
65UHB-ZK-30-20	30	20	1450	5	5.5
65UHB-ZK - 35-20	35	20	1450	5.8	7.5
65UHB-ZK-AH-10-70	10	70	2900	8.4	11	65 x 50	350
65UHB-ZK-AH-15-70	15	70	2900	11.2	15
65UHB-ZK-AH-25-70	25	70	2900	15.9	18.5
65UHB-ZK-AH-30-60	30	60	2900	18.9	22
80UHB-ZK-17.5-11	17.5	11	1450	1.5	2.2	80 x 65	270
80UHB-2K-^2.5- 12.5	22.5	12.5	1450	2.3	3
80UHB-2K-40-20	40	20	2900	5.8	7.5
80UHB-2K-45-18	45	18	2900	6.1	7.5
80UHB-2K-50-15	50	15	2900	5.6	7.5
80UHB-ZK-35-45	35	45	2900	10.8	11
80UHB-ZK-40-35	40	35	2900	10.2	11
80UHB-ZK-45-32	45	32	2900	10.1	11
80UHB-ZK-50-30	50	30	2900	10.2	11
80UH 日-2K-60-30	60	30	2900	12.6	15
80UHB-ZK-45-50	45	50	2900	14 8	15
80UHB-2K-55-40	55	40	2900	15.8	18.5
80UHB-ZK-40-40	40	40	1450	14.8	18.5	80 x 65	750
80UHB-ZK-30-50	30	50	1450	15.3	18.5
80UHB-ZK-40-50	40	50	1450	179	22
80UHB-ZK-30-60	30	60	1450	17.6	22
80UHB-2K-50-56	50	56	1450	23.2	30
80UHB-2K-40-60	AO	60	1450	24.3	30
80UHB-ZK-60-55	60	55	1450	25.2	30
80UHB-2K-AH-20-60	20	60	2900	10.3	15	80 x 65	370
80UHB-ZK-AH-20-75	20	75	2900	134	15
80UH 巳-ZK-AH-25-75	25	75	2900	15.3	18.5
80UHB-ZK-AH-30-70	30	70	2900	19.6	22
80UHB-ZK-AH-35-65	35	65	2S00	22.5	30
80UHB-ZK-AH-40 - 60	40	60	2900	226	30
100UHB-ZK-50-11	50	11	1450	4.2	5.5	100x80	370
100UHB-ZK-80-15	80	15	2900	10.2	11
100UHB-ZK-60-30	60	30	2900	13.8	15
100UHB-ZK-100-20	100	20	2900	15	15
100UHB-ZK-50-60	50	50	2900	17.5	18.5
100UHB-ZK-60-40	60	40	2900	16.8	18.5
100UHB-ZK-80-35	80	35	2900	17.8	18.5
100UHB-2K-80-30	80	30	2900	17.5	18.5	100x80	370
100UHB-ZK-100-25	100	25	2900	17.9	18.5
100UHB-ZK-100-20	100	20	2900	17.2	18.5
100UHB-ZK- 140-15	140	15	2900	16.8	18.5
100UHB-ZK-100-20	100	20	2900	16.2	18.5
100UHB-2K-120-15	120	15	2900	17.1	18.5
100UHB-ZK-140-10	140	10	2900	16.4	18.5
100UHB-ZK-50-58	50	58	2900	21	22
100UHB-ZK-60-50	60	50	2900	21.5	22
100UHB-2K-100-27	100	27	2900	18.4	22
100UHB-2K-70-45	70	45	2900	23.5	30
100UHB-ZK-80-50	80	50	2900	27	30
100UHB-ZK-100-45	100	‘is	2900	28	30
100UHB-ZK-120-40	120	40	2900	28.5	30
100UHB-2K-145-28	145	28	2900	29.5	30
100UHB-ZK-80-35	80	35	1450	19.3	22	100 x 80	950
100UHB-ZK-80-40	80	40	1450	22.3	30
100UHB-2K-60-70	60	70	1450	35.9	37
100UHB-ZK-60-65	60	65	1450	33.6	37
100UHE3 - ZK-50-70	50	70	1450	31.4	37
100UHB-ZK-80-60	80	60	1450	35.9	37
100UHB-ZK-80-50	80	50	1450	24.5	30-37
100UHB-ZK-100-57	100	57	1450	37.9	37-45
100UHB-ZK-80-65	80	65	1450	40.3	45
100UHB-ZK-120-50	120	50	1450	39.9	45
100UHB-ZK -100-65	100	65	1450	48.9	55
100UHB-ZK-120-60	120	60	1450	51.5	55
100UHB-ZK-AH-40-75	40	75	2900	28	30	100x80	480
100UHB-ZK-AH-50-80	50	80	2900	32.5	37
100UHB-ZK-AH-50-70	50	70	2900	30	37
100UHB-ZK-AH-60-80	60	80	2900	33.6	37
100UHB-ZK-AH-80-60	80	60	2900	35.4	37
125UHB-ZK-120-20	120	20	2900	17.2	18.5	125x100	480
125UHB-ZK-140-18	140	18	2900	21	22
125UHB-ZK-150-15	150	15	2900	21.5	22
125UHB-ZK-100-40	100	40	2900	28.8	30
125UHB-ZK-120-35	120	35	2900	29.4	30
125UHB-ZK-140-25	140	25	2900	25	30
125UHB-2K-120-32	120	32	2900	26.8	30
125UHB-ZK-140-28	140	28	2900	27.6	30
125UHB-2K-160-24	160	24	2900	28.1	30
125UHB-ZK-80-15	80	t5	1450	10.2	11
125UHB-ZK-80-15	80	15	980	10.2	11	125x100	950
125UHB-ZK-100-40	100	40	1450	28.8	30
125UHB-ZK-120-35	120	35	1450	29.4	30
125UHB-ZK-140-25	140	25	1450	25	30
125UHB-ZK-120-32	120	32	1450	26.8	30
125UHB-ZK-140-28	140	28	1450	27.6	30
125UHB-ZK-100-50	100	50	1450	33.2	37	125x100	950
125UHB-2K-120-40	120	40	1450	32.1	37
125UHB-2K-100-60	100	60	1450	40.5	45
125UHB-ZK-120-50	120	50	1450	38.5	45
125UHB-2K-100-65	100	65	1450	47.6	55
125UHB-ZK-120-60	120	60	1450	49.2	55
125UHB-ZK-140-56	140	56	1450	46.9	55
125UHB-ZK-150-56	150	56	1450	50.3	55
125UHB-ZK-180-40	180	40	1450	48.5	55
150UHB-ZK-180-14	180	14	1450	28.2	30	150x 125	950
150UHB-ZK-160-16	160	16	1450	28	30
150UHB-2K-150-20	150	20	1450	24.5	30
150UHB-ZK-120-25	120	25	1450	24.5	30
150UHB-ZK-138-8	138	8	980	10.5	11
150UHB-ZK-190-18	190	18	1450	19.8	22
150UHB-ZK-210-26	210	26	1450	36.4	37
150UH 巳-ZK-240-24	240	24	1450	35.2	37
150UHB-ZK-270-20	270	20	1450	36	37
150UHB-ZK-148-11	148	11	980	13.6	15	150x 125	1000
150UHB-ZK-101-18	101	18	980	12.8	15
150UHB-ZK-80-11	80	11	980	8.9	11
150UHB-2K-120-40	120	40	1450	33.6	37
150UHB-ZK-150-40	150	40	1450	42	45
150UHB-ZK-200-32	200	32	1450	43.4	45
150UH 巳-ZK-250-30	250	30	1450	41.5	45
150UHB-ZK-300-25	300	25	1450	42.3	45
150UHB-ZK-AH-120-70	120	70	1450	45.8	55	150x125	1200
150UHB-2K-AH-150-70	150	70	1450	58.9	75
150UHB-ZK-AH-180-70	180	70	1450	68.6	75
200UHB-ZK-215-10	215	10	980	15.6	18.5	200x150	1200
200UHB-ZK-210-14	210	14	980	18.4	18.5
200UHB-ZK-168-20	168	20	980	27	30
200UHB-ZK-320-24	320	24	1450	37.3	45
200UHB-ZK-350-20	350	20	1450	37.1	45
200UHB-ZK-400-18	400	18	1450	38.3	45
200UHB-ZK-500-12	500	12	1450	38.6	45
200UHB-ZK-320-32	320	32	1450	51.8	55
200UHB-ZK-350-28	350	28	1450	45.2	55
200UHB-2K-400-25	400	25	1450	70	75
200UHB-ZK-250-45	250	45	1450	74	75
200UHB-ZK-300-38	300	38	1450	69.5	75
200UHB-ZK-350-34	350	34	1450	67.3	75
200UHB-ZK-AH-200-70	200	70	1450	76.3	90	200 x 150	2200
200UHB-ZK-AH-280-70	280	70	1450	106.7	110
200UHB-ZK-AH-300-70	300	70	1450	114.3	132
200UHB-ZK-AH-350-70	350	70	1450	133.4	160
