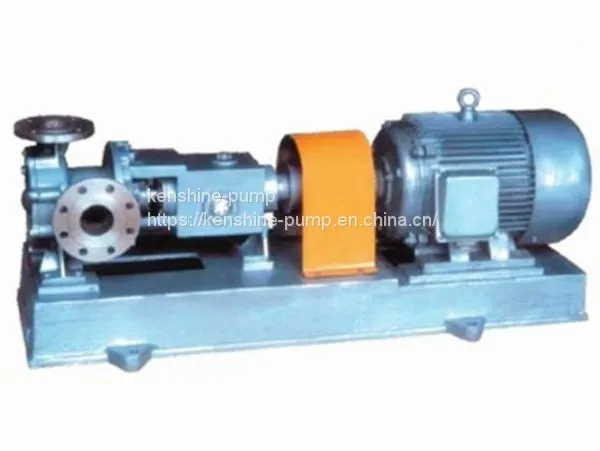

DY Stainless Steel Chemical Centrifugal Pump
US$ 650 - 10000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
kenshine-pump
Place of Origin:
China
Model Number:
DY50-32-125
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days
Related Products
-
FP FRPP Plastic Centrifugal PumpUS$ 200 - 3000MOQ: 1 Set -
FZB Fluoroplastic PVDF Self Priming Chemical PumpUS$ 300 - 6000MOQ: 1 Set
-
SL Vertical Fiberglass Pipeline Centrifugal PumpUS$ 300 - 3000MOQ: 1 Set
-
FZB Plastic Self Priming Chemical Transfer PumpUS$ 300 - 4000MOQ: 1 Set
-
FB,AFB Stainless Steel Corrosion Resistant Centrifugal PumpUS$ 650 - 10000MOQ: 1 Set
Brand Name
kenshine-pump
Place of Origin
China
Model Number
DY50-32-125
Application
Other, Chemical liquid transfer
Fuel
Other, electric motor
Power
Electric
Usage
Other, chemical fluid transfer
Theory
Centrifugal Pump
Standard or Nonstandard
Standard
Structure
Single-stage Pump
Pressure
Low Pressure
DY series electrophoresis pumps are horizontal single-stage single-suction centrifugal pumps developed by relevant scientific research departments and experts according to the production process characteristics of coating industry. This kind of electrophoresis pump is mainly suitable for conveying corrosive medium containing particles, high viscosity, strong permeability and easy to crystallize. It is an ideal special equipment used in coating industry and completely solves the disadvantages of general centrifugal pump such as easy damage to seal, poor sealing performance and short life of parts. The pump is mainly made of 304, 316L and other materials.
| Model | Flow | Head | Speed | Power（KW） | Efficiency | NPSH | ||
| m3/h | L/S | m | r/min | Shaft | Motor | % | m | |
| DY25-25-125 | 1.6 | 0.44 | 5 | 1450 | 0.05 | 0.55 | 45 | 1 |
| DY25-25-160 | 8 | 0.09 | 0.55 | 37 | ||||
| DY25-25-200 | 12.5 | 0.155 | 0.75 | 35 | ||||
| DY25-25-250 | 20 | 0.26 | 1.5 | 33 | ||||
| DY40-32-125 | 3.2 | 0.89 | 5 | 0.09 | 0.55 | 46 | 1 | |
| DY40-32-160 | 8 | 0.17 | 0.75 | 42 | ||||
| DY40-32-200 | 12.5 | 0.29 | 1.1 | 38 | ||||
| DY40-32-250 | 20 | 0.49 | 2.2 | 35 | ||||
| DY50-32-125 | 6.3 | 1.75 | 5 | 0.19 | 0.55 | 45 | 1 | |
| DY50-32-160 | 8 | 0.34 | 0.75 | 40 | ||||
| DY50-32-200 | 12.5 | 0.65 | 1.5 | 33 | ||||
| DY50-32-250 | 20 | 1.27 | 2.2 | 27 | ||||
| DY65-50-125 | 12.5 | 3.47 | 5 | 0.31 | 0.55 | 55 | 1.2 | |
| DY65-50-160 | 8 | 0.53 | 0.75 | 51 | ||||
| DY65-40-200 | 12.5 | 0.93 | 1.5 | 46 | ||||
| DY65-40-250 | 20 | 1.75 | 3 | 39 | ||||
| DY65-40-315 | 32 | 3.3 | 5.5 | 33 | ||||
| DY80-65-125 | 25 | 6.94 | 5 | 0.53 | 0.75 | 64 | 1.4 | |
| DY80-65-160 | 8 | 0.88 | 1.5 | 62 | ||||
| DY80-50-200 | 12.5 | 1.49 | 2.2 | 57 | ||||
| DY80-50-250 | 20 | 2.569 | 4 | 53 | ||||
| DY80-50-315 | 32 | 5.067 | 7.5 | 43 | ||||
| DY100-80-125 | 50 | 13.88 | 5 | 0.92 | 1.5 | 74 | 1.7 | |
| DY100-80-160 | 8 | 1.58 | 2.2 | 69 | ||||
| DY100-65-200 | 12.5 | 2.5 | 4 | 68 | ||||
| DY100-65-250 | 20 | 4.3 | 5.5 | 65 | ||||
| DY100-65-315 | 32 | 7.5 | 11 | 58 | ||||
| DY100-65-400 | 50 | 23.5 | 30 | 29 | ||||
| DY125-100-200 | 100 | 27.77 | 12.5 | 4.66 | 7.5 | 73 | 2.2 | |
| DY125-100-250 | 20 | 7.56 | 11 | 72 | ||||
| DY125-100-315 | 32 | 12.82 | 18.5 | 68 | ||||
| DY125-100-400 | 50 | 22.69 | 30 | 60 | ||||
| DY150-125-250 | 200 | 55.55 | 20 | 14.1 | 18.5 | 77 | 3.2 | |
| DY150-125-315 | 32 | 23.2 | 30 | 75 | ||||
| DY150-125-400 | 50 | 38.9 | 45 | 70 | ||||
| DY150-125-450 | 65 | 53.6 | 75 | 66 | ||||
| DY200-150-250 | 400 | 111.1 | 20 | 26.9 | 37 | 81 | 4.5 | |
| DY200-150-315 | 32 | 44.1 | 55 | 79 | ||||
| DY200-150-400 | 50 | 69.8 | 90 | 78 | ||||
| DY25-25-125 | 3.2 | 0.89 | 20 | 2900 | 0.33 | 1.1 | 53 | 1.8 |
| DY25-25-160 | 32 | 0.61 | 2.2 | 46 | ||||
| DY25-25-200 | 50 | 1.01 | 4 | 43 | ||||
| DY25-25-250 | 80 | 1.74 | 7.5 | 40 | ||||
| DY40-32-125 | 6.3 | 1.75 | 20 | 0.66 | 1.5 | 52 | 1.8 | |
| DY40-32-160 | 32 | 1.17 | 3 | 47 | ||||
| DY40-32-200 | 50 | 2.26 | 5.5 | 38 | ||||
| DY40-32-250 | 80 | 4.28 | 11 | 32 | ||||
| DY50-32-125 | 12.5 | 3.47 | 20 | 1.33 | 3 | 51 | 1.8 | |
| DY50-32-160 | 32 | 2.37 | 4 | 46 | ||||
| DY50-32-200 | 50 | 4.38 | 7.5 | 39 | ||||
| DY50-32-250 | 80 | 8.25 | 15 | 33 | ||||
| DY65-50-125 | 25 | 6.94 | 20 | 2.2 | 3 | 62 | 2 | |
| DY65-50-160 | 32 | 3.82 | 5.5 | 57 | ||||
| DY65-40-200 | 50 | 6.55 | 11 | 52 | ||||
| DY65-40-250 | 80 | 11.84 | 18.5 | 46 | ||||
| DY65-40-315 | 125 | 21.8 | 30 | 39 | ||||
| DY80-65-125 | 50 | 13.88 | 20 | 3.95 | 5.5 | 69 | 2.4 | |
| DY80-65-160 | 32 | 6.5 | 11 | 67 | ||||
| DY80-50-200 | 50 | 10.8 | 15 | 63 | ||||
| DY80-50-250 | 80 | 19.11 | 30 | 57 | ||||
| DY80-50-315 | 125 | 36.21 | 45 | 47 | ||||
| DY100-80-125 | 100 | 27.77 | 20 | 7.074 | 15 | 77 | 3.2 | |
| DY100-80-160 | 32 | 11.9 | 22 | 73 | ||||
| DY100-65-200 | 50 | 18.9 | 37 | 72 | ||||
| DY100-65-250 | 80 | 32 | 45 | 68 | ||||
| DY125-100-200 | 200 | 55.55 | 50 | 35.4 | 45 | 77 | 4.5 | |
| DY125-100-250 | 80 | 58.1 | 75 | 75 | ||||
