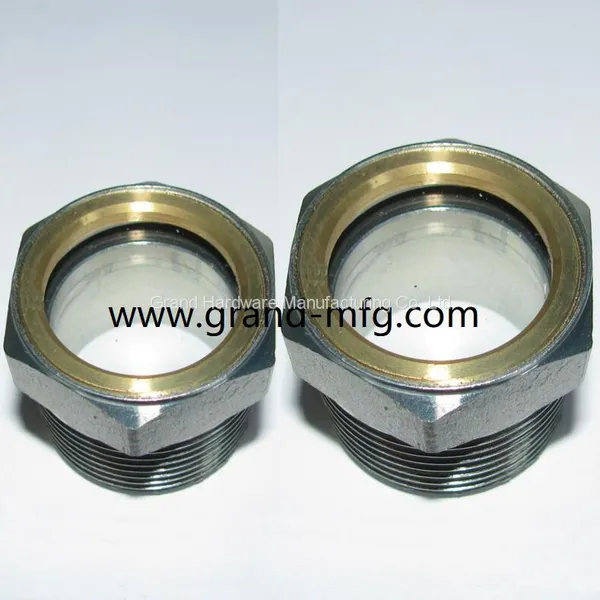

Help CenterNickel Plated MNPT Carbon Steel Oil Sight Glass With Stainless Steel Reflector
Related Products
-
NPT 1/2 Compressors Pump Oil Sight Glass Carbon Steel Oil LevelsUS$ 0.68 - 10MOQ: 2000 Pieces -
NPT Threaded Steel Oil Sight Glass Pump Speed Reducer Carbon Steel Oil Sight GlassUS$ 0.68 - 10MOQ: 2000 Pieces
-
NPT Threaded 1/2 Inch Brass Domed Shaped Liquid Oil Sight Glasses Supplier for TrucksUS$ 0.68 - 10MOQ: 500 Pieces
-
Stainless Steel 304 BSP G Thread 1/2 Inch Borosilicate Oil Level Sight GlassUS$ 0.1 - 20MOQ: 500 Pieces
-
NPT 1/2 Inch Domed Hex Sight Glasses for Radiator Coolant Tank Sight GlassUS$ 0.68 - 10MOQ: 500 Pieces
Steel Oil level Sight glass, oil sight gauge, oil sight gage,
oil level indicator, liquid sight glass, sight window, view ports,
male thread sight glasses, domed sight glass plug
Material
Body: Aluminum, Steel, PMMA, Plastic and Brass
O-Ring: Viton and NBR
Glass: Natural Glass
Glass Thickness: 2mm to 5 mm
Glass Type: General Glass, Tempered Glass and Borosilicate Glass
Resist Temperature Range: -30 Cent degrees to 120 Cent degrees.
Pressure Range: 5-10 Bar or 0.5MPa to 1 MPa.
Connections: NPTF, NPT, UNC, UNF, Metric and BSP (G thread)
Size:M10X1, M16X1.5,M20X1.5, ,M27X1.5,M33X1.5,
G 3/8,G 1/2,G 3/4,G 1 NPT 3/8, NPT 1/2,NPT 3/4,NPT 1
MOQ: 2000 Pcs each size
Delivery time: 20 days.
Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission.
| item | steel sight glasses |
| material | steel |
| O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
| window | Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness | 2mm to 5 mm |
| Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range | .-30'C TO 120'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
Any demands just contact us or vist our GRAND-MFG website to get details.Thank you.
