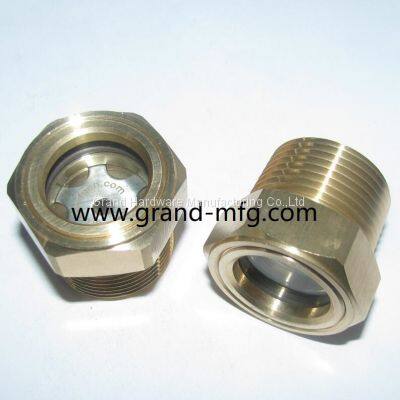

Help CenterGM-HDN38 Dome Brass Oil Sight Glass Used for Compressor,roots Blower,speed Reducers,pump
Related Products
-
NPT 1/2 Inch Domed Shaped Sight Glass for Truck Radiators Surge TanksUS$ 0.68 - 10MOQ: 500 Pieces -
Domed Shaped Quality Peep Sites Surge Tank Sight Gauge NPT 1/2 Inch ThreadUS$ 1.52 - 2.89MOQ: 500 Pieces
-
NPT Pipe Thread 1/4" 3/8" 1/2" 3/4" Brass Oil Sight Glass IndicatorsUS$ 0.68 - 10MOQ: 500 Pieces
-
Metric Thread M27x1.5 Brass Oil Level Sight Glass for Air Compressor Pumps GearboxesUS$ 0.68 - 10MOQ: 500 Pieces
-
Metric Thread M16x1.5 M18x1.5 M20x1.5 M22x1.5 M24x1.5 Brass Oil Sight Glass IndicatorUS$ 0.68 - 10MOQ: 500 Pieces
GRAND-MFG sight glasses & breather vent plugs
Any special demands please just contact us and send detailed requirements for solutions.
Grand-MFG sincerely to support every customer, hope our quality parts help with your fulture business soon!
Material Body: Brass
O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal
Glass Thickness: 2mm to 5 mm
Reflectors: Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 120'C
Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.
| item | brass sight glasses |
| material | brass |
| O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
| window | Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness | 2mm to 5 mm |
| Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range | .-30'C TO 120'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
| item | sight glasses,oil gauges |
| oil drain plugs,steel plugs | |
| breather vent plugs | |
| auto radiator parts | |
| magnetic drain plugs | |
| precision machined parts(brass,steel,stainless steel,aluminum) hydraulic steel fittings OEM and ODM business welcome. | |
| website | |
| sales department | Grace |
Any demands just contact us or vist our GRAND-MFG website to get details.Thank you.
