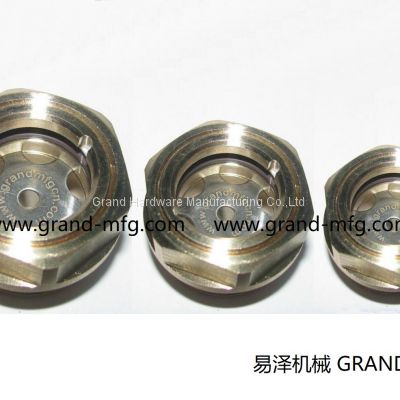

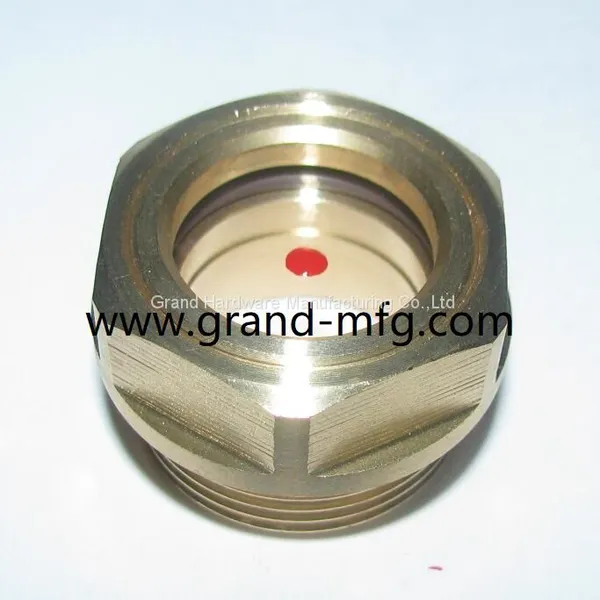

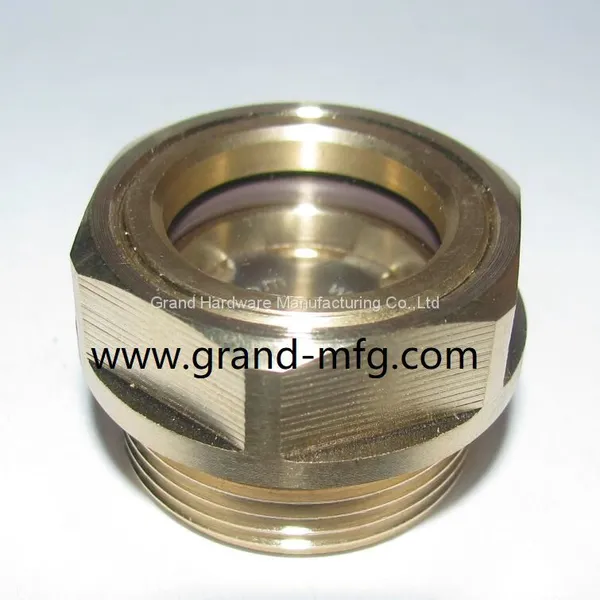

G Thread 3/8 1/2 3/4 Inch Oil Level Indicators to Check Oil Level Sight Glass
US$ 0.5 - 12.5
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
grand-mfg
Place of Origin:
China
Model Number:
GRAND-MFG
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
45 days
Related Products
-
GM-HDN38 Dome Brass Oil Sight Glass Used for Compressor,roots Blower,speed Reducers,pumpUS$ 0.68 - 10MOQ: 500 Pieces -
NPT 1/2 Inch Domed Shaped Sight Glass for Truck Radiators Surge TanksUS$ 0.68 - 10MOQ: 500 Pieces
-
Domed Shaped Quality Peep Sites Surge Tank Sight Gauge NPT 1/2 Inch ThreadUS$ 1.52 - 2.89MOQ: 500 Pieces
-
NPT Pipe Thread 1/4" 3/8" 1/2" 3/4" Brass Oil Sight Glass IndicatorsUS$ 0.68 - 10MOQ: 500 Pieces
-
Metric Thread M27x1.5 Brass Oil Level Sight Glass for Air Compressor Pumps GearboxesUS$ 0.68 - 10MOQ: 500 Pieces
Brand Name
grand-mfg
Place of Origin
China
Model Number
GRAND-MFG
Type
Oil PUmp
Size
1/2“,3/4“,3/8“,1“,11/4“,11/2“,2“
Warranty
grandmfg
Material Body: Brass
O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal
Glass Thickness: 2mm to 5 mm
Reflectors: Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 120'C
Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.
| item | brass sight glasses |
| material | brass |
| O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
| window | Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness | 2mm to 5 mm |
| Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range | .-30'C TO 120'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
Any demands just contact us or visit our GRAND-MFG web to get the item No..Thank you.
