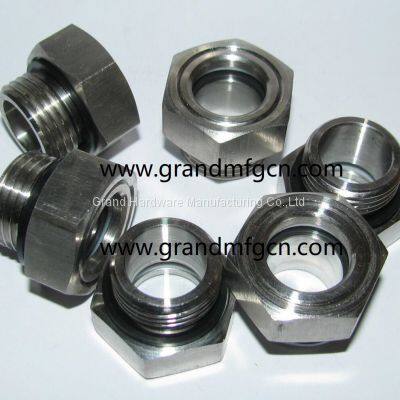

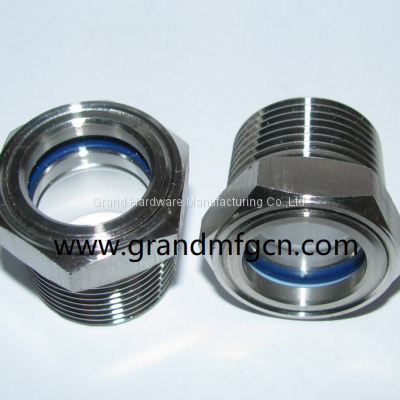

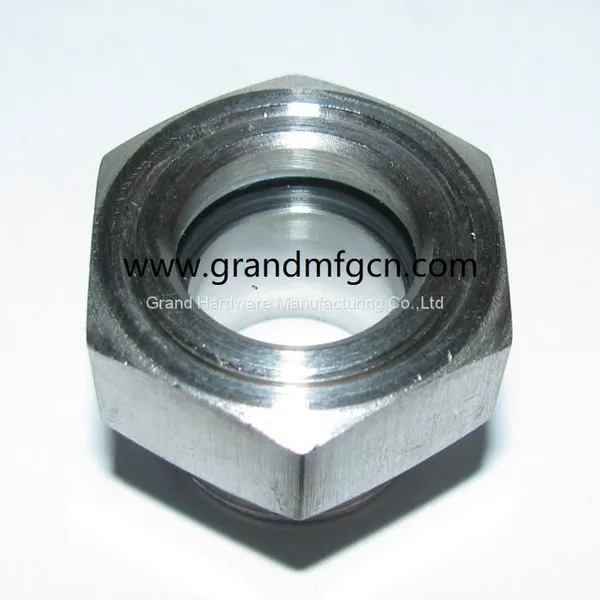

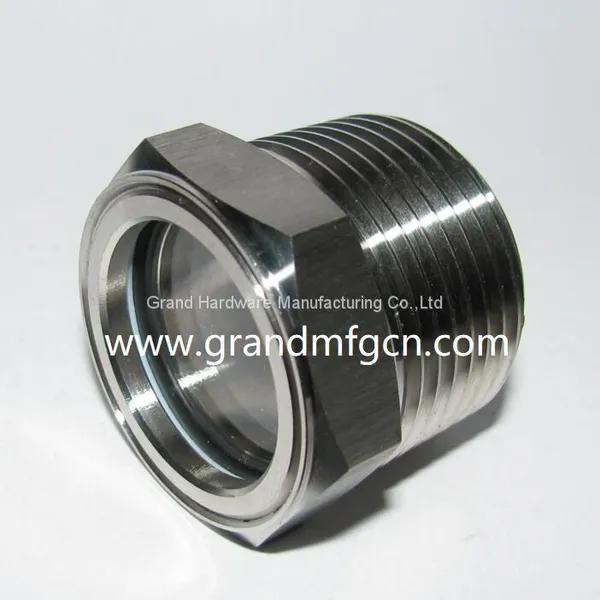

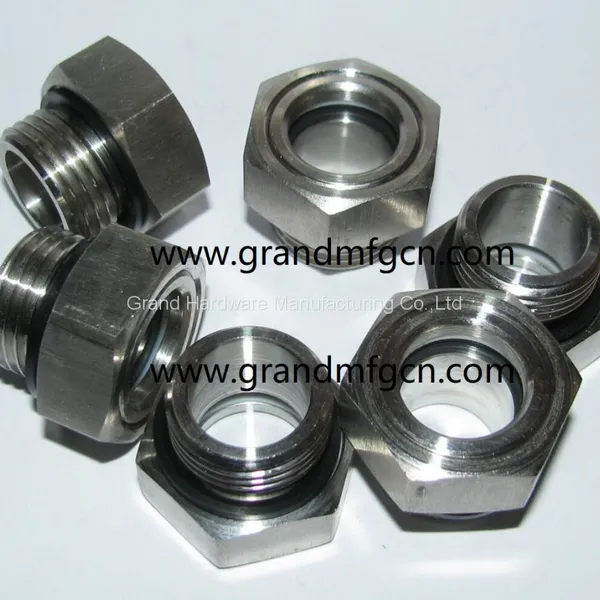

Help CenterStainless Steel 304 BSP G Thread 1/2 Inch Borosilicate Oil Level Sight Glass
Related Products
-
BSP Thread G1 INCH Stainless Steel 304 Liquid Oil Level Sight Glass With Borosilicate GlassUS$ 0.1 - 20MOQ: 500 Pieces -
Stainless Steel 304 Liquid Water Flow Sight Glass Manufacturer NPT BSP Metric ThreadUS$ 0.68 - 10MOQ: 500 Pieces
-
MNPT 2 INCH Stainless Steel Ss304 Liquid Sight Glass Oil Levels Glass WindowUS$ 0.68 - 10MOQ: 500 Pieces
-
MNPT 3/4 Stainless Steel Sight Glass SS304 Pressure Vessel Liquid Level Sight GaugeUS$ 0.68 - 10MOQ: 500 Pieces
-
Male Metric Thread M36X1.5 Oil Sight Glasses for Radiator Cooling System Sight GlassUS$ 0.68 - 20MOQ: 500 Pieces
Stainless steel Oil level Sight glass, oil sight gauge, oil sight gage, oil level indicator,
liquid sight glass, sight window, view ports, male thread sight glasses, domed sight glass plug
Material
Body: SS304, SS304L, SS316, SUS316L SUS304, SUS304L, SUS316, SUS316L
O-Ring: Viton and NBR
Glass: Natural Glass
Glass Thickness: 2mm to 5 mm
Glass Type: General Glass, Tempered Glass and Borosilicate Glass
Resist Temperature Range: -30 Centigrade to 120 Centigrade.
Pressure Range: 5-10 Bar or 0.5MPa to 1 MPa.
Connections: NPTF, NPT, UNC, UNF, Metric and BSP (G thread)
Size:M10X1, M16X1.5,M20X1.5, ,M27X1.5,M33X1.5,
G 3/8,G 1/2,G 3/4,G 1 NPT 3/8, NPT 1/2,NPT 3/4,NPT 1
MOQ: 2000 Pcs each size
Delivery time: 20 days.
Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission
| item | SS sight glasses |
| material | Stainless steel 304,Stainless steel 304L,Stainless Steel 316, Stainless steel 316L |
| O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
| window | Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness | 2mm to 5 mm |

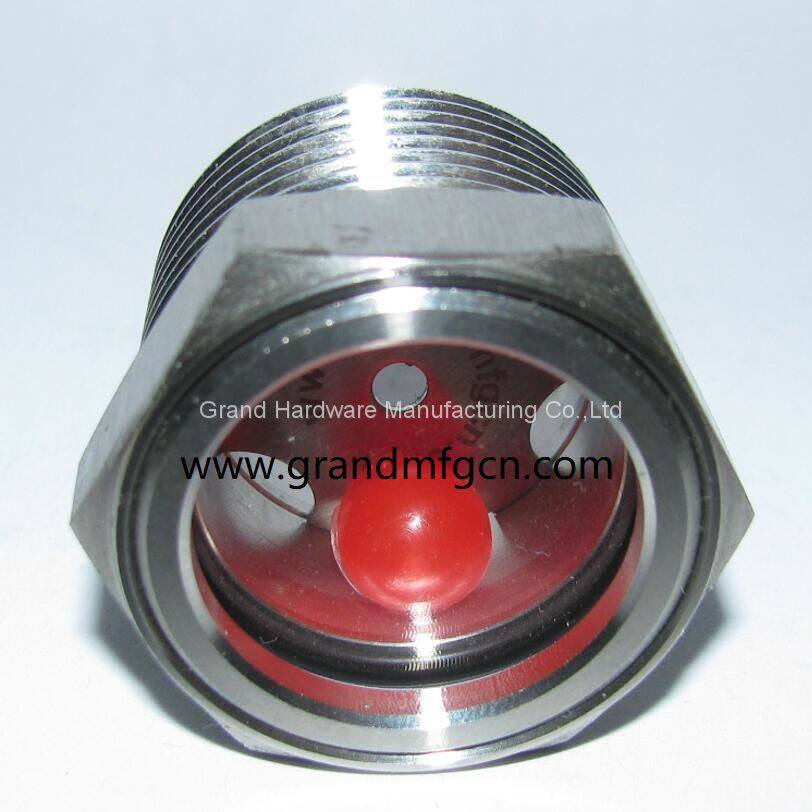

| Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range | .-30'C TO 120'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
Any demands just contact us or vist our GRAND-MFG website to get details.Thank you.
