Home > Products > Auto Radiator Parts > NPT 1/2" 3/8" domed shaped oil sight glass for cooling system
NPT 1/2" 3/8" domed shaped oil sight glass for cooling system
- 300000 Piece / Pieces per Month
- Ningbo port
- T/T
- 45 days
- PPC's low-cost sight glasses on the market for visual inspection of flow liquids
- Hydraulic oil level indicator with level marks
- NPT 1/2 inch domed shaped sight glass for truck radiators surge tanks
- domed shaped quality peep sites surge tank sight gauge NPT 1/2 inch thread
- stainless steel 304 liquid water flow sight glass manufacturer NPT BSP Metric thread
- Fused sight windows for vertical liquid receiver
Product Details
Brand Name: | GRAND-MFG | Place of Origin: | China | Model Number: | GM-DHN12 |
Type: | Radiator | Size: | 1/2“,3/4“,1“,1-1/4“,1-1/2“,2“ | Warranty: | grandmfg |
Product Description
GRAND-MFG SIGHT GLASSES:

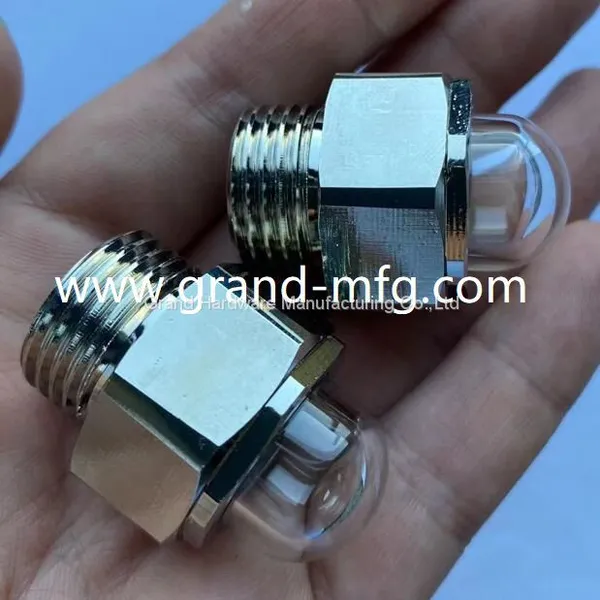

1/2" NPT Domed Shaped oil sight glass for cooling system
1.Main area used: Various brands of car,truck,etc.
2.Material: Brass/Glass/Viton
3. Size: 1/2" NPT
2.All goods are strictly monitored and inspected from production to delivery.
3.Transportation: Container Freight & International Multimodal Transport
4.Packing: General exporting package or according to customers' requirements.
item | brass sight glasses |
material | brass |
O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
window | Natural Glass,Tempered Glass and Borosilicate Glass |
Glass Thickness | 2mm to 5 mm |
Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
Resist Tempreature Range | .-30'C TO 120'C |
Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
Thread type | NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
item | sight glasses,oil gauges |
oil drain plugs,steel plugs | |
breather vent plugs | |
auto radiator parts | |
magnetic drain plugs | |
precision machined parts(brass,steel,stainless steel,aluminum) hydraulic steel fittings OEM and ODM business welcome. | |
website | |
sales department | Grace |
grandmfg@vip.126.com |
item | brass machined parts |
material | Brass,Copper and Bronze. |
finish | Natural,Polished,Nickel plated and Chrome Plated |
Processing | Brass Hot Forged,Bronze Sand Castings,CNC machining, CNC turning or CNC Lathing,Milling,Sandblasted |
Dimension Tolerance: | CNC Lathe +/-0.01 mm. General Lathe +/-0.1 to 0.2 mm |
item | brass sight gauges |
Housing | brass tube |
tube | quartz glass tube |
O-Ring and flat gaskets | NBR Rubber |
Thread szie | M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2” |
Temperature resistant | : -20’C to 120 ‘C. / 0’F to 260 ‘F |
Distance of two bolts | 80mm to 600mm |
item | brass breather vent plugs |
material | brass or aluminum |
Thread Type | BSP,Metric,NPT |
finish | Natural and Nickel Plated |
size | Any Size OEM are welcome. |
Work Pressure | 0.005 MPa to M 0.03 Mpa |
Tempture Range | : -30 Cent degree to 130 Cent degree. |
Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
Thread type | Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission. |
