NPT 1/2 Inch Domed Hex Sight Glasses for Radiator Coolant Tank Sight Glass
US$ 0.68 - 10
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Brand Name:
grandmfg
Place of Origin:
China
Model Number:
grandmfg
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo port
Delivery Detail:
45 days
Related Products
-
NPT 1/2\" 3/8\" Domed Shaped Oil Sight Glass for Cooling SystemUS$ 2 - 3MOQ: 500 Pieces -
MNPT Brass Oil Sight Glass for Gearbox,speed Reducer,compressors,cooling SystemUS$ 2 - 4MOQ: 500 Pieces
-
Brass Radiator Coolant Filler Neck and CapsUS$ 0.68 - 10MOQ: 500 Pieces
-
Auto Radiator Coolant Filler Neck and Caps OEM and ODM Business ServiceUS$ 0.68 - 10MOQ: 1000 Pieces
-
Brass Radiator Coolant Filler Necks and Caps Custom AvailableUS$ 0.68 - 10MOQ: 500 Pieces
Brand Name
grandmfg
Place of Origin
China
Model Number
grandmfg
Certification
CE
Type
Other, radiator
After-sales Service Provided
No overseas service provided
Condition
New
Mounting
Wall / Window Mount

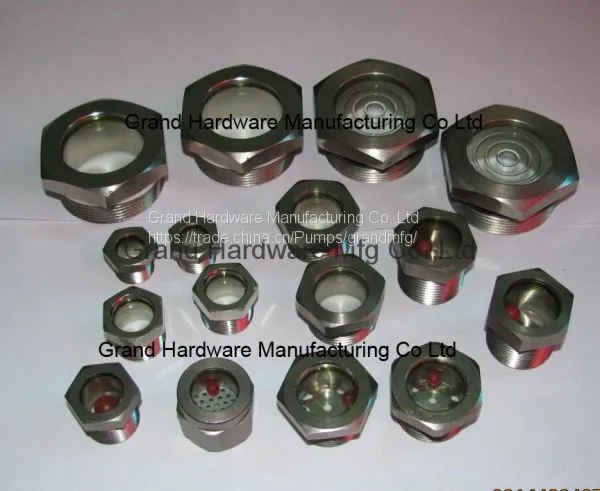

GRAND-MFG SIGHT GLASSES:
Domed shape oil sight glass, domed oil sight gauge,
domed sight glass plug, domed sights gauge
Material
Body: Aluminum, Steel and Brass
O-Ring: Viton and NBR
Glass Thickness: 3mm
Glass Type: Borosilicate Glass
Resist Temperature Range: -30 Cent degrees to 200 Cent degrees.
Pressure Range: 5-10 Bar or 0.5MPa to 1 MPa.
Connections: NPTF, NPT, UNC, UNF, Metric and BSP (G thread)
Size:M10X1, M16X1.5,M20X1.5, ,M27X1.5,M33X1.5,
G 3/8,G 1/2,G 3/4,G 1 NPT 3/8, NPT 1/2,NPT 3/4,NPT 1
MOQ: 2000 Pcs each size
Delivery time: 20 days.
Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers,
Gearboxes, Speed Reducer, Compressor and Power Transmission.
| item | brass sight glasses |
| material | brass |
| O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
| window | Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness | 2mm to 5 mm |
| Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range | .-30'C TO 120'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
