NPT 1/2 inch domed shaped sight glass for truck radiators surge tanks
- 100000 Piece / Pieces per Month
- Ningbo port
- T/T
- domed shaped quality peep sites surge tank sight gauge NPT 1/2 inch thread
- stainless steel 304 liquid water flow sight glass manufacturer NPT BSP Metric thread
- Fused sight windows for vertical liquid receiver
- Hexagon aluminum oil drain plugs
- aluminum flange for machinery
- NPT pipe thread 1/4" 3/8" 1/2" 3/4" brass oil sight glass indicators
Product Details
Brand Name: | grand-mfg | Place of Origin: | China | Model Number: | grand-mfg |
Use: | truck radiators | Weight: | 80g | Expiration Date: | grand-mfg |
Product Description
Material Body: Brass/aluminum/stainless steel
O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal
Glass Thickness: 2mm to 5 mm
Reflectors: Stainless Steel 304 Reflector

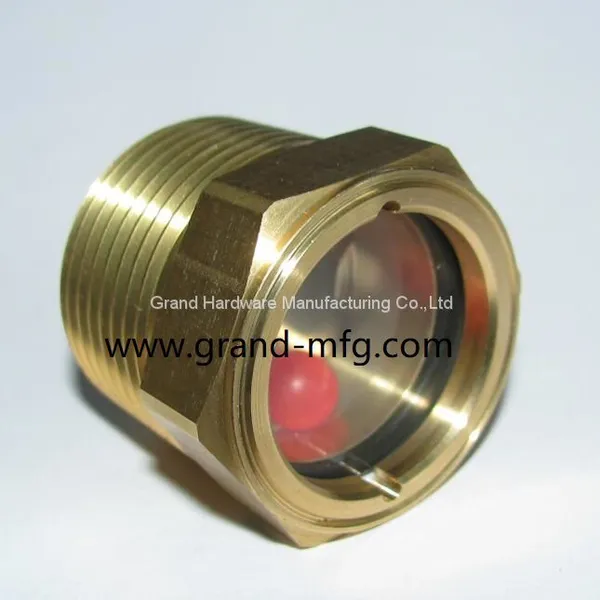

(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 120'C
Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.
item | brass sight glasses |
material | brass |
O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
window | Natural Glass,Tempered Glass and Borosilicate Glass |
Glass Thickness | 2mm to 5 mm |
Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
Resist Tempreature Range | .-30'C TO 120'C |
Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
Thread type | NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
item | brass machined parts |
material | Brass,Copper and Bronze. |
finish | Natural,Polished,Nickel plated and Chrome Plated |
Processing | Brass Hot Forged,Bronze Sand Castings,CNC machining, CNC turning or CNC Lathing,Milling,Sandblasted |
Dimension Tolerance: | CNC Lathe +/-0.01 mm. General Lathe +/-0.1 to 0.2 mm |
item | SS sight glasses |
material | Stainless steel 304,Stainless steel 304L,Stainless Steel 316, Stainless steel 316L |
O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
window | Natural Glass,Tempered Glass and Borosilicate Glass |
Glass Thickness | 2mm to 5 mm |
Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
Resist Tempreature Range | .-30'C TO 120'C |
Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
Thread type | NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
item | brass sight gauges |
Housing | brass tube |
tube | quartz glass tube |
O-Ring and flat gaskets | NBR Rubber |
Thread szie | M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2” |
Temperature resistant | : -20’C to 120 ‘C. / 0’F to 260 ‘F |
Distance of two bolts | 80mm to 600mm |
item | Hydraulic oil level indicator |
Housing | Aluminum alloy housing and inside thermoplastic (PC) |
O-Ring and flat gaskets | NBR Rubber |
Reflector | aluminum with printed white |
Bolt | M10 Hexagon nut and washer in galvanized steel |
Temperature resistant | : -20’C to 100 ‘C. / 0’F to 220 ‘F |
Distance of two bolts | 50mm to 500mm |
Usage | Thin-wall container, Radiator, Hydraulic reservoir and receivers. |
item | plastic sight glasses |
material | plastic |
seal | NBR |
Reflectors | Plastic PMMA |
Resist Tempreature Range | : -30'C to 70'C |
Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
Thread type | Metric and BSP(G thread) |
Any demands just contact us or vist our GRAND-MFG website to get details.Thank you.
