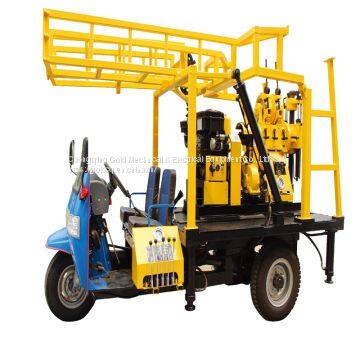

Chinese supplier's Water Well Drilling Machine Tricycle Mounted Drilling Rig Prices
Product Introduction
Geological survey and exploration; basic exploration for roads and high buildings; hole inspection on various concrete structure, river dams, grouting holes, civil wells and geothermal central air conditioning
Specification
Drilling depth(m) |
30-200 |
||
Drilling diameter(mm) |
300-75 |
||
Drilling angle |
90-75° |
||
Spindle rotary speed(r/min) |
64,128,287,557 |
||
Spindle stroke(mm) |
450 |
||
Main winch lifting force(with single line)(Kg) |
1600 |
||
Main winch rope capacity(m) |
35 |
||
Lifting speed(r/s) |
17, 35, 75, 151 |
||
Rope diameter(mm) |
12.5 |
||
Drill Mast height(mm) |
7000 |
||
Drill Effective height(mm) |
6500 |
||
Driving Drilling rod(mm) |
59*53 |
||
Drilling rod(mm) |
42, 50, 60 |
||
Weight(Kg) |
1150 |
||
Engine |
Model: ZS1115 Diesel engine |
||
Rated power: 14.7kW/2200rpm | |||
BW-160 Mud pump |
Rated flow(L/min) |
160 |
|
Rated power(Mpa) |
1.3 |
||
Driving power(kW) |
5.15 |
||
Host weight(Kg) |
190 |
||
Dimension(mm) |
1110*725*965 |
||
Chassis |
Model |
Tricycle of brand Wuzheng 7YP-1475D1 |
|
Drive way |
RWD(Rear wheel drive) |
||
Engine |
Model |
ZS1115E2 |
|
Emission standard |
GB18322-2002, GB19756-2005 |
||
Rated power(kW) |
16.2 |
||
Rotary speed(r/min) |
2200 |
||
Packaging & Shipping
1. Inudustrial professional export packing, full inspection on all packing details.
2. Standard wooden case for Gold Drilling Equipment exporting and shock absorbing for better outerior protection.
3. Considerate interior plastic sheeting protection to prevent from wet and moisture.
