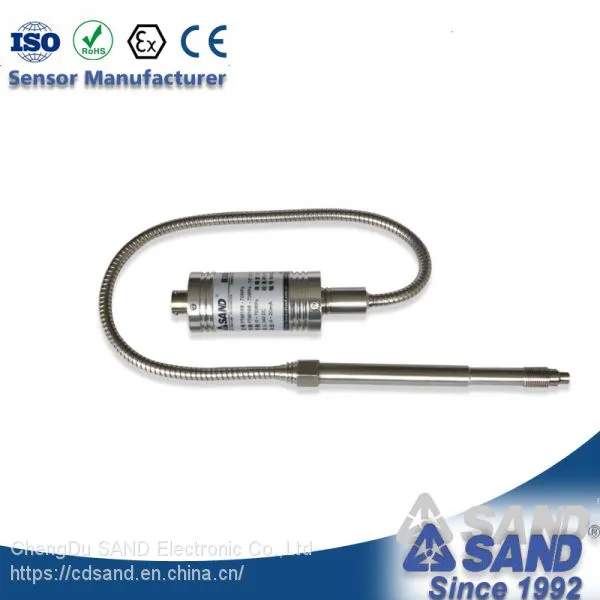

[Environmental Type]Melt Pressure Sensor, Used in Food, Beverage, Wine, Medical And Other Industries

FOB Price

US$ 90 - 200 / Piece

1 Piece(Min. Order)

Port chengdu
Payment TermsL/C D/P D/A PayPal
Delivery Detail20 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SAND		Place of Origin	China
Model Number	PT3716/PT3816/PT3826

Product Description

Introduction
This series of products adopted safe structure & non-toxic, pollution-free transmission medium, All the constituent components of the sensor are safe, does not produce harmful toxic substances or gases, so that it can contact with raw materials directly. When it working, it won't pollute the surrounding environment and the measuring medium. The products have been widely used in the food, beverage, wine, medical and other industries.

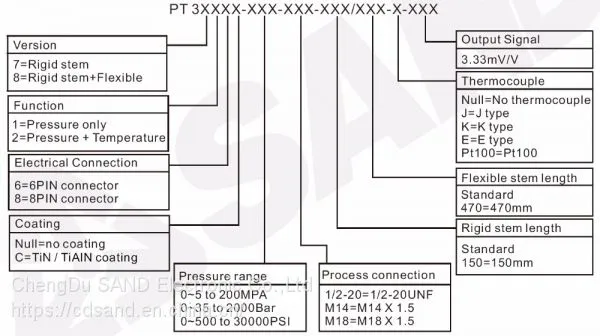

Model Description

	Pressure Transducer	Pressure Transmitters
Rigid Stem Type	PT3516,PT3716	PT3516B,PT3716B
Flexible Stem Type	PT3616,PT3816	PT3616B,PT3816B
Pressure and Temperature Dual Ability Type	PT3626,PT3826	PT3626B,PT3826B

Performance indicators

1 Adopt safe structure & non-toxic, pollution-free transmission medium;
2 Comply with U.S. FDA standards and the EU ROHS directive;
3 1/2 "-20, M14 x 1.5, M22 x 1.5, G3 / 4" a variety of mounting dimensions to facilitate the user to select;
4 Accuracy: ± 1.0% FS, ± 1.5% FS (default);
5 Green shell, elegant appearance;
6 Output signal:

Pressure sensors; 2.0mV / V, 3.0mV / V, 3.33mV / V;

Pressure transmitter: 0 ~ 10V, 4 ~ 20mA;

7 Corrosion resistant coating to extend the service life of3 to 5 times; (optional)
8 Thermometric Config:
Thermocouple: E, J, K type, etc., Thermal resistance: Pt100 etc. (Optional)
