Introduction
PT500 series polymer to provide accurate and reliable partial pressure display, and has better resolution and other high temperature extrusion process. PT500 Series extruder vibration better than mechanical gauges immunity. Five large digital tube, two rows of 50 cells fine color barcode reality, can choose the best readings after the installation location, allowing maximum rotation angle of 285 degrees, PT500 Series offers a variety of structures PT451, PT542, PT543, PT545, PT555, etc. and models to facilitate your selection and installation needs.
Model Description
| Single measurement type melt pressure gauge | Dual measurement type melt pressure gauge | |

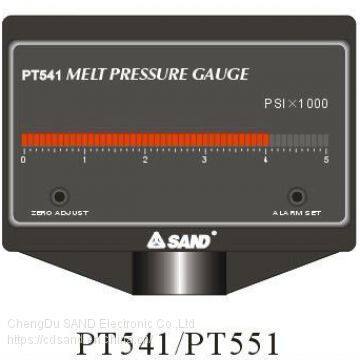

| Single row of electronic bar display type | PT541 | PT551 |

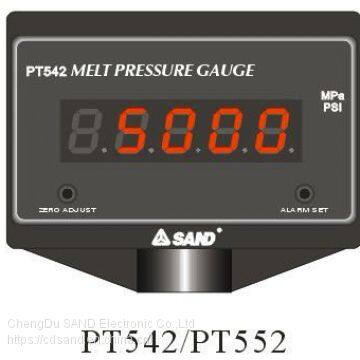

| Five digital display type | PT542 | PT552 |

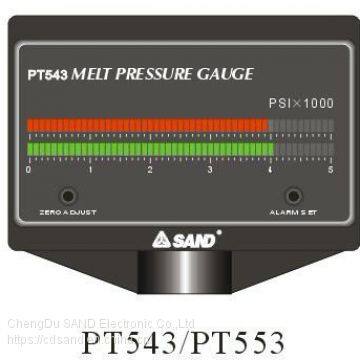

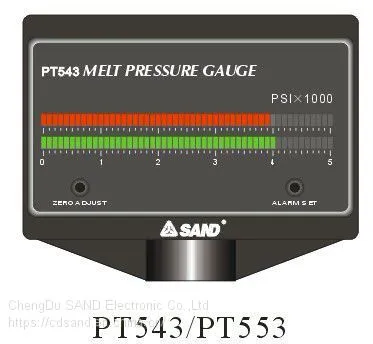

| E-rod type double color | PT543 | PT553 |

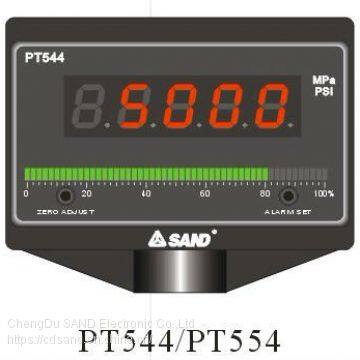

| Five digital & electronic bar-type single row | PT544 | PT554 |

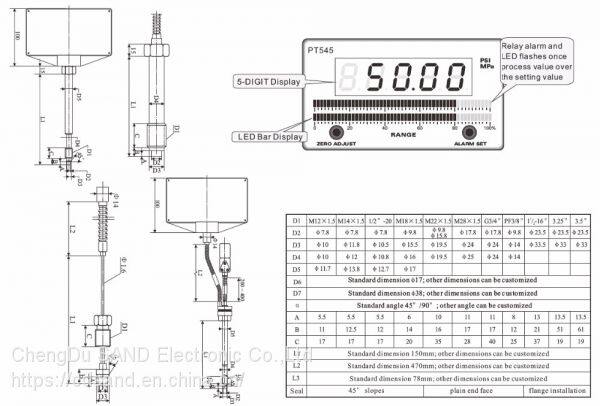

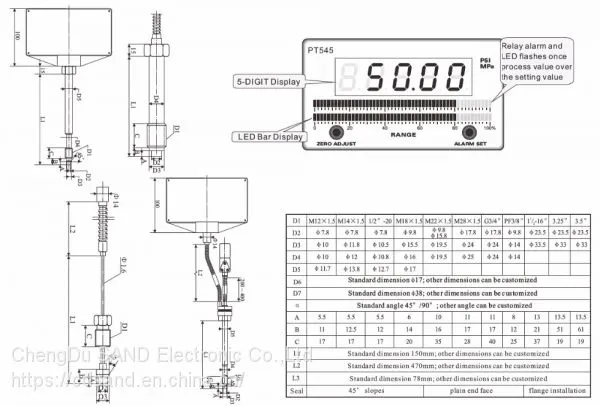

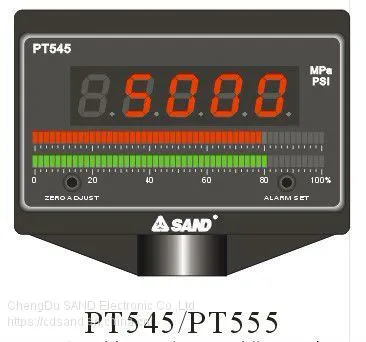

| Five digital & electronic bar-type double | PT545 | PT555 |
Order Format
Format: PT model - coating code- Range - Process Connection - Rigid / Flexible- Temperature configuration - Output
Example: PT545 - 5000psi - 1/2 "- 20 - 150/470 - 4 ~ 20mA
Description: Product Design Model "PT545"
Coating Uncoated code vacancy, said probe;Pressure Range 0 ~ 5000psi, Process Connection Size Inch 1/2 "-20UNF,Rigid rod length 150mm / Flexible length 470mm; Qutput signal 4 ~ 20mA, single-function without temperature configurations.
