4-20mA 0-10V Proint Melt Pressure Guage

Introduction

PT135 series stainless steel melt pressure gauge is our company's new industrial instrumentation.  They are widely used in chemical fiber, petroleum, brewing, plastics and other industries. They are mainly used in high temperature melt pressure measuring & controling
and pressure  measurement in the absence of any electrical equipment. This series can be competed with the top grand clock mechanism, and they also can built-in pressure sensor & transmitter and mating with PS series pressure indicator. Products adopt rotating dial  design, stainless steel shell and ; beautiful and durable; import movement to ensure high precision and high reliability.It is easy for customers to use.

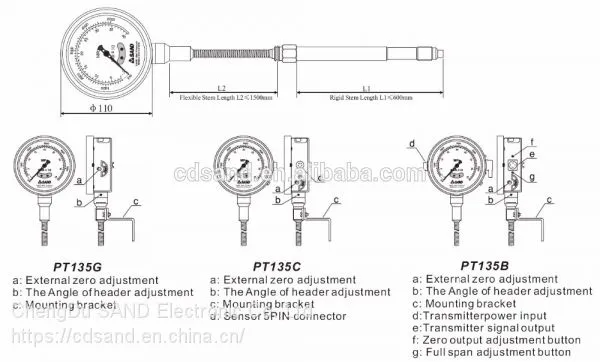

Model Description

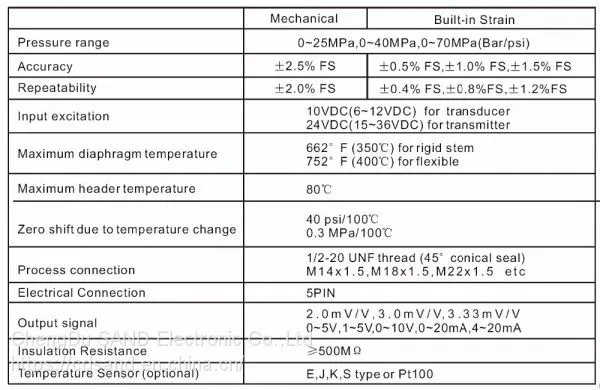

   Performance indicators

1  Adopting imported clock mechanism to achieve high accuracy, high reliability;
2  External nulling design, easy to clear temperature drift;
3  Rotary table head design, easy to install and read;
4  Stainless steel shell, durable and firm, elegant appearance;
5  Multiple installation thread size, convenient for users to choose;

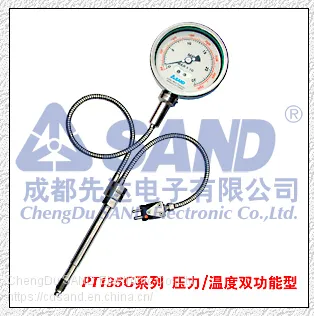

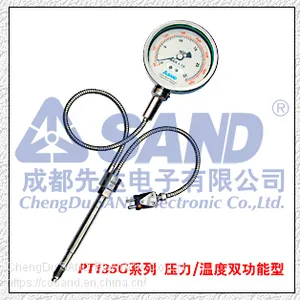

6  Measuring temperature and pressure in the same spot, a multi-purpose guage (optional);
7  Voltage / mA current flow, multiple output modes (optional);
8  Remote transmitter and contactor alarm output (optional);

Order Format
Format: PT 135 - function code - coating code - Range -  Process Connection- Rigid / Flexible- Thermometric -  Output
Example: PT135B - 40MPa - M22 -150/700 - 4-20mA
Description:
Product  Model "PT135B",
Function code "B" stands for the melt pressure gauge internal melt pressure transmitter, Coating code null stands for without coating;
Pressure range 0 ~ 40MPa, thread size M22 × 1.5, rigid stem length 150mm / flexible stem length 700mm;
Internal melt pressure transducer pressure output signal 4-20mA, single-function without temperature configurations.
