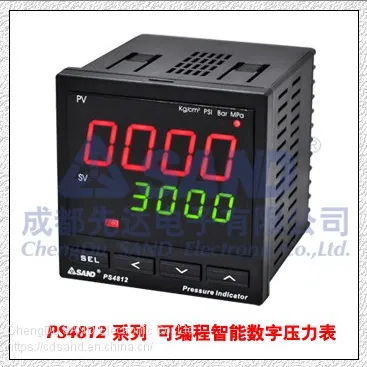

Help CenterPS4812/PS4812TProgrammable Intelligent Pressure Indicator
Related Products
-
PS4810/PS4810T Intelligent Pressure IndicatorUS$ 70 - 100MOQ: 1 Piece -
PS1016 Intelligent Pressure GaugesUS$ 60 - 100MOQ: 1 Piece
-
PS1016T Intelligent Pressure /Temperature IndicatorUS$ 70 - 100MOQ: 1 Piece
-
SAND PS1016-035-205-311US$ 60 - 130MOQ: 1 Piece
-
4-20mA Output Intelligent Pressure IndicatorUS$ 60 - 150MOQ: 1 Piece
Introduction
PS4812/PS4812T series programmable intelligent digital pressure display table is the latest development of a whole new generation of industrial pressure gauges . The series PS series pressure gauge in the other instruments on the basis of adding a number of programmable features, so there is a substantial upgrade in functionality , can substitute similar high-end international market pressure indicator, with a high cost and compatibility particularly suitable for measurement and control in the field of high-temperature melt pressure . And PT series melt pressure sensor / transmitter supporting the use , can be widely used in petrochemical, textile and chemical fiber , plastics, rubber, non-woven fabrics, machinery and equipment industries accurate measurement of the melt temperature , fluid, gas pressure and perfection control . With full-featured , high reliability , good stability , appearance, anti-interference ability , etc. , to ensure that the system of long-term stability.
Perforemance
Pressure range, engineering units (MPa, psi, bar, kgf / cm), programmable decimal point position ;
All the way to the pressure signal output, providing a variety of signal types, programmable settings ;
Two alarm outputs , offers a variety of alarm mode , programmable settings ;
The perfect combination of triple anti-jamming technology to ensure system stability ;
Automatic calibration function , the panel error correction , simple and quick operation , ensuring more accurate ;
Complete specifications , compatible with a variety of pressure sensor / transmitter ;
More than 20,000 hours trouble-free operation ;
Providing computer communication interface , mailing address , baud rate programmable settings. ( Optional )
Specifications
| Model |
Pressure Range |
Power supply |
The output signal |
Alarm |
Input Signal |
Dimensions |
Temperature Configuration |
Communication |
| PS4812/ PS4812T 96×96mm方表 |
0~5~150Mpa 范围内任选 Mpa/bar/psi/Kg 压力单位 可编程设置 （必选参数） |
空:85~265VAC (默认为空） 101:24VDC 111:110VAC 122:220VAC 124:240VAC (可选参数） |
200:无输出信号 20X:1路线性输出 201:0~5V 201:1~5V 203:0~10mA 204:0~20mA 205:4~20mA 206:0~10V (可编程设置） |
300:无报警功能 PS4812 31X:继电器报警 310:上限 311:上/下限 312:上/上上限 313:上/上上/下限 PS4812T 31X:继电器报警 311:压力上限 温度上限（默 认） 315:压力上/下限 316:压力上/上上限 317:压力上/下限， 温度上限报警 (可编程设置) |
空:2.0mV/V (默认) 420:2.0mV/V 430:3.0mV/V 433:3.33mV/V 402:0~20mA 442:4~20mA 401:0~10V 405:0~5V 415:1~5V (可选功能） |
|
仅对PS4812T 6E:E型热电偶 6J:J型热电偶 6K:K型热电偶 6S:S型热电偶 6P:Pt100铂电阻等 （可选其一） |
空:无通讯 7R:RS485 7C:CANopen (可选功能） |
| PS4812/ PS4812T 48×96mm竖表 |
同上 （必选参数） |
同上 (可选参数) |
|
同上 | 同上 （可选功能） |
|||
| PS4812/ PS4812T 96×48mm横表 |
同上 （必选参数） |
同上 （可选参数） |
|
同上 | 同上 （可选功能） |
Format: PS4812--Rang Code--Power Code--Output Code--Alarm Code--Input Code--Shape COde--Communication
e.g.1:PS4812-035-206-311
Product Model"PS4812",Programmable Intelligent Pressure Indicator.
Pressure Rang Code"035",The pressure rang is 0~35MPa;
Output Signal Code"206",The factory setting output signal is 0~10V;
Alram Methods COde"311".The factory setting adopts 2-way relay top and bottom limitation alarm;
Vacancies and not marked funtion codes are the default values.
Format: PS4812--Rang Code--Power Code--Output Code--Alarm Code--Input Code--Shape COde--Temperaure--Communication
e.g.2:PS4812T-050-205-311-433-5H-6E-7R
Product Model"PS4812T",Programmable Intelligent Pressure/Temperature Indicator.
Pressure Rang Code"050",The pressure rang is 0~35MPa;
Output Signal Code"205", The factory setting output signal 4~40mA;
Pressure Rang Code"035",The pressure rang is 0~35MPa;
Output Signal Code"206",The factory setting output signal is 0~10V;
Alram Methods COde"311".The factory setting adopts 2-way relay top and bottom limitation alarm;
Input Signal Code"433",It is mating for the transducer that has 3.33mV/V output;
Shape Code"5H",The Dimension is 96*48mm;
Temperature Measurement Code"6K",Ability K-type thermocoupleof measuring temperature;
Communication Method Code"7R",It adopts RS485 communication interface.
Send Inquiry to This Supplier
You May Also Like
-

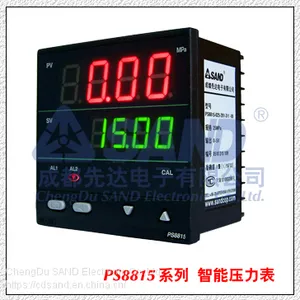

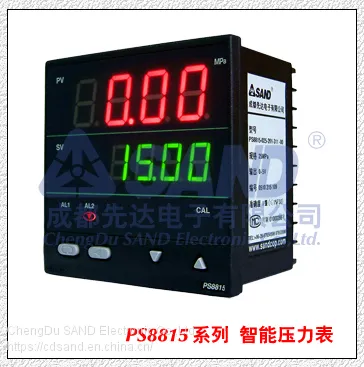

Ps8815Intelligent Pressure GaugesUS$ 90 - 130MOQ: 1 Piece
-
