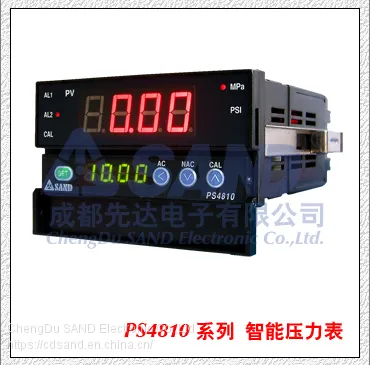

Help CenterPS4810/PS4810T Intelligent Pressure Indicator
Related Products
-
PS1016 Intelligent Pressure GaugesUS$ 60 - 100MOQ: 1 Piece -
PS1016T Intelligent Pressure /Temperature IndicatorUS$ 70 - 100MOQ: 1 Piece
-
SAND PS1016-035-205-311US$ 60 - 130MOQ: 1 Piece
-
4-20mA Output Intelligent Pressure IndicatorUS$ 60 - 150MOQ: 1 Piece
-
Ps8815Intelligent Pressure GaugesUS$ 90 - 130MOQ: 1 Piece
Inroduction
Automatic calibration function, the panel error correction, simple and quick operation, ensuring more accurate;
Four double-color digital display;
Two relay alarm, power protection, safe and reliable;
More than 20,000 hours trouble-free operation;
The perfect combination of triple anti-jamming technology to ensure system stability;
Available in a variety of voltage (for example, 0 ~ 10V) or current (for example, 4 ~ 20mA) linear output signal;
Complete specifications, compatible with a variety of pressure input signal;

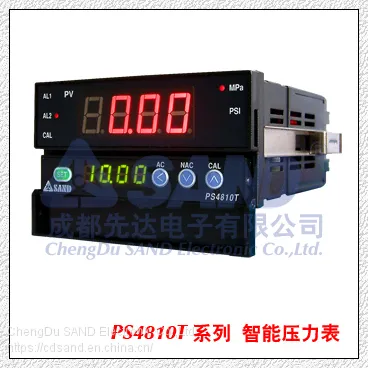

Can provide the same point pressure / temperature measurement dual display dual function, support for multiple thermocouple input E-, J-, K-, S-type. (For PS4810Tonly)
Specifications
| Model |
Pressure Range |
Power supply |
The output signal |
Alarm |
Input Signal |
Dimensions |
Temperature Configuration |
Communication |
| PS4810 96×48mm横表 |
0~5~150MPa 范围内任选 （必选参数） |
空:85~265VAC (默认为空） 101:24VDC 111:110VAC 122:220VAC 124:240VAC (可选参数） |
200:无输出信号 20X:1路线性输出 201:0~5V 202:1~5V 203:0~10mA 204:0~20mA 205:4~20mA 206:0~10V |
300:无报警功能 31X:继电器报警 310:压力上限 311:压力上/下限 312:压力上/上上限 314:压力下限 （必选参数） |
空:2.0mV/V (默认） 420:2.0mV/V 430:3.0mV/V 433:3.33mV/V 402:0~20mA 442:4~20mA 401:0~10V 405:0~5V 415:1~5V (可选功能） |
|
无测温 | 无通讯 |
| PS4810T 96×48mm横表 |
同上 （必选参数） |
同上 （可选参数） |
无输出 （必选参数） |
31X:继电器报警 311:压力上限 温度上限（默认） 315:压力上/下限 316:压力上/上上限 317:压力上/下限，温度上限报警 317:压力上/上上限，温度上限报警 （必选参数） |
6E:E型热电偶 6J:J型热电偶 6K:K型热电偶 6S:S热电偶等 （可选其一） |
无通讯 |
Order Format
Format :PSModel--Rang Code--Power Code--Output Code--Alarm Code--Input Code--Shape Code--Temperature
e.g:PS4810-035-225-311-433
Product Model"PS4810",Intelligent Pressure Indicaor
Pressure Rang Code"035",The presure rang is 0~35"MPa;
Output Signal Code"225",Two-Way signal output 4-20mA and 1~5V;
Alarm Methods Code"311",Adopts 2-way relay top and bottom limitation alarm;
Iput Signa Code"433",Mating for the transducer that has 3.33mV/V output;
Vacancies and not marked funtion codes are the defult values.
Send Inquiry to This Supplier
You May Also Like
-

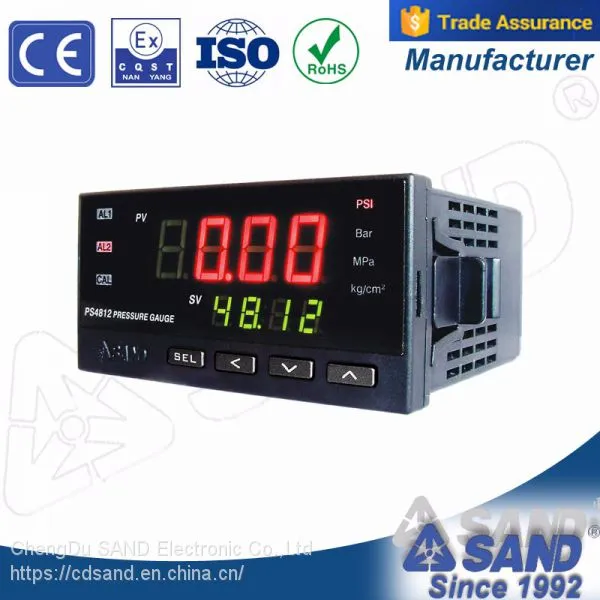

PS4812/PS4812TProgrammable Intelligent Pressure IndicatorUS$ 81 - 134MOQ: 1 Piece
-
