Help CenterOriginal Manufacturer Sony Violet 450nm 20mw Laser Diode
Related Products
-
SHARP Blue 450nm TO56 Laser Diode for Plant LightingUS$ 7 - 10MOQ: 10 Pieces -
Hot and Cheap 808nm 500mw Infrared Laser DiodeUS$ 2 - 5MOQ: 10 Pieces
-
Sony Violet 405nm 20mw To18-5.6mm Laser DiodeUS$ 2 - 5MOQ: 5 Pieces
-
SHARP Blue Color 450nm 80mw Laser Diode for Plant LightingUS$ 7 - 10MOQ: 10 Pieces
-
High Quality Osram 450nm 80mw Blue Laser Diode For Stage LightsUS$ 5 - 7MOQ: 10 Pieces
Features:
1. blue-violet laser diode 405nm 20mw
2. SONY laser diode

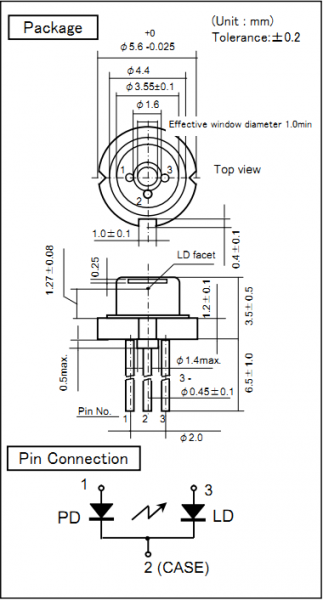

3. TO18-5.6mm package type
Sony violet 450nm 20mw To18-5.6mm Laser Diode
Excellent beam quality High stability Advanced technology Long Lifetime
Absolute Maximum Ratings (Tc = 25ºC)
| Parameter |
Symbol |
Ratings | Unit |
Light Output |
Po(CW) |
35 | mW |
Reverse Voltage（LD） |
Vr | 2 | V |
Operating Temperature |
Topr |
0 to +75 |
ºC |
Storage Temperature |
Tstg | -40 to +85 |
ºC |
Optical and Electrical Characteristics (Tc=25°C)
| Parameter |
Symbol |
Condition | Min. | Tye. | Max. | Unit |
| Threshold Current | Ith |
CW | - | 20 | 30 | mA |
| Operating Current | Iop |
Po=20mW | - | 35 | 45 | mA |
| Operating Voltage | Vop | Po=20mW | - | 4.8 | 5.6 | V |
| Lasing Wavelength | Lp | Po=20mW | 400 |
405 | 410 | nm |
| Differential Efficiency | SE |
Po=20mW | 0.7 |
1.1 | - | mW/mA |
| Monitoring Output Current | Im | Po=20mW | 0.1 | 0.2 | 0.5 | mA |
Description:
1.Salable SONY high quality 405nm 20mw laser diode.
2.TO18-5.6mm packing.
3.Package Details：100 pieces/tray, 10 trays/vacuum bag, 10 vacuum bags/carton.
Welcome your inquiry
TO: Ms. Elin
Mob: +86 18002689266
Dongguan BU Laser Co., Ltd
Shipping：
1.The items normally will be shipped within 3 working days after the payment is reached.Delivery time is about 3-5 days.
2.The items will be shipped by DHL/FedEx or other ways. Please contact us directly and choose the way you prefer.
Company Information&Services:
A. Main products: Semiconductor laser diode, laser module, bicycle laser light.
B. Since the establishment, DongguanBlueuniverse Laser Co., Ltd has its own brand "LANJI, VIAN", access to China's outstanding semiconductor laser supplier reputation, with a number of domestic and foreign technology patent certification, product quality inspection certification and TUV, BV, SGS, ISO9001: 2015 quality management system certification.
Warranty：
All products have been tested before the shipment and it was packaged in good condition. Please tested the products at first before you assemble it, if any problem here, please inform us within 3 days of receipt. We can arrange the replacement for you if the situation is confirmed.
