Features:
1.Maximum optical power output:200mW(CW)
2.Wavelength:TYP.784nm

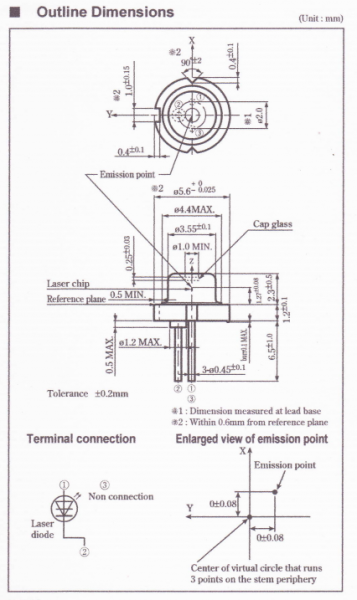

3.φ5.6mm package
Salable Sharp IR 780nm 200mw Laser Diode
Excellent beam quality High stability Advanced technology Long Lifetime
Absolute Maximum Ratings (Tc = 25ºC)
| Parament | Symbol | Rating |
Unit |
| Optical power output | Po | 200 | mW |
| Optical power output(pulse) |
Pp | 355 |
mW |
| Reverse voltage(LD) |
Vr |
2 |
V |
| Operating temperature(CW) |
Topc(c) |
-10~+65 | °C |
| Operating temperature(pulse) | Topp(c) | -10~+75 | °C |
| Storage temperature | Tstg |
-40~+85 |
°C |
| Soldering temperature |
Tsld |
300 | °C |

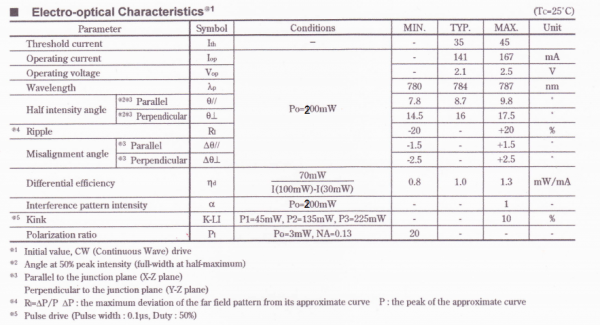

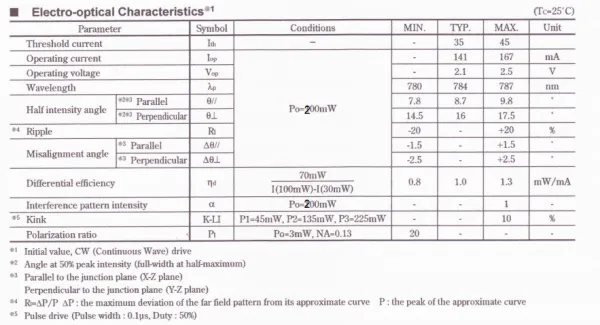

Optical and Electrical Characteristics (Tc=25°C)
| Item | Symbol | Min | Typ. | Max | Unit | Test Condition | |
| Threshold current | Ith | - | 35 | 45 | mA | - | |
| Operating current | Iop | - | 141 | 167 | mA | Po=100mW | |
| Operating voltage | Vop | - | 2.1 | 2.5 | V | ||
| Wavelength | λp | 780 | 784 | 787 | nm | ||
| Half intensity angle | Parallel | θ// | 7.8 | 8.7 | 9.8 | º | |
| Perpendicular | θ⊥ | 14.5 | 16 | 17.5 | º | ||
| Ripple | Ri | -20 | - | +20 | % | ||
| Misalignment angle | Parallel | Δθ// | -1.5 | - | +1.5 | º | |
| Perpendicular | Δθ⊥ | -2.5 | - | +2.5 | º | ||
Description:
1. Small Package 5.6mm Diameter.
2. Cheap price high quality sharp 780nm 200mw infrared laser diode .
3. Package details: Plastic box package, it depends on different kinds of laser diodes with different sizes.Normally 100pcs in one tray, 10 trays in one bag ,then 10 bags in one carton box.
Welcome your inquiry
TO: Ms. Elin
Mob: +86 18002689266
Dongguan BU Laser Co., Ltd
Shipping:
1.1-3 days after receiving the payment by T/T, PAYPAL.
2. It will be shipped by DHL/FedEx/UPS/TNT or other special ways, please contact us to choose the best one.
3. Delivery time will be usually 3~5 working days.
Company Information&Services:
A. Main products: Semiconductor laser diode, laser module, bicycle laser light.
B. Since the establishment, DongguanBlueuniverse Laser Co., Ltd has its own brand "LANJI, VIAN", access to China's outstanding semiconductor laser supplier reputation, with a number of domestic and foreign technology patent certification, product quality inspection certification and TUV, BV, SGS, ISO9001: 2015 quality management system certification.
Warranty:
All products have been tested before the shipment and it was packaged in good condition. Please tested the products at first before you assemble it, if any problem here, please inform us within 3 days of receipt. We can arrange the replacement for you if the situation is confirmed.
