Features:
1. Shorter wavelength: 638nm Typ.
2. High optical output power: 700mW
3. Small package: 5.6mm diameter
Oclaro 638nm 700mw TO56 Red Laser Diode(HL63193MG)
Excellent beam quality High stability Advanced technology Long Lifetime
Absolute Maximum Ratings (Tc=25ºC)
| Item | Symbol | Ratings | Unit |
| Optical Output Power(-10~+30ºC) | Po(1) | 700 | mW |
| Optical Output Power(+30~+40ºC) | Po(2) | 550 | mW |
| LD Reverse Voltage | Vr(LD) | 2 | V |
| Operating Temperature | Tpor | -10~+40 | ºC |
| Storage Temperature | Tstg | -40~+85 | ºC |
Electrical/Optical Characteristics (Tc=25ºC)
| Parameter | Symbol | Min | Typ | Max | Unit | Test Condition |
| Lasing Wavelength | λp | 632 | 638 | 643 | nm | Po=700mW |
| Threshold Current | Ith | - | 200 | 250 | mA | - |
| Operating Current | Iop | - | 900 | 1100 | mA | Po=700mW |
| Operating Voltage | Vop | - | 2.3 | 2.8 | V | Po=700mW |
| Beam Divergence Parallel to the junction | - | 8 | 20 | ° | Po=700mW | |
| Beam Divergence Perpendicular to the junction | - | 20 | 35 | 50 | ° | Po=700mW |
Description:
1. Multi Transverse Mode laser diode.

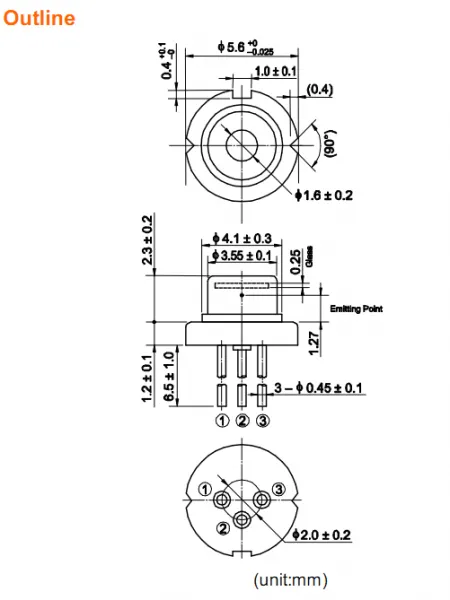

2. Can Type: φ 5.6 mm Floating Mounted with Protection device.
3. Oclaro high power 638nm 700mw laser diode HL63193MG.
4. Package details:: Plastic box package, it depends on different kinds of laser diodes of different sizes. Normally 50pcs in one tray, 10 trays in one bag, then 10 bags in one carton box.
Welcome your inquiry
TO: Ms. Elin
Mob: +86 18002689266
Dongguan BU Laser Co., Ltd
Packaging&Shipping:
1. Plastic box, standard and normal package.
2.1-3 days after receiving the payment by T/T, PAYPAL.
3. It will be shipped by DHL/FedEx/UPS/TNT or other special ways, please contact us to choose the best one.
4. Delivery time will be usually 3~5 working days.
Company Information&Services:
A. Main products: Semiconductor laser diode, laser module, bicycle laser light.
B. Since the establishment, DongguanBlueuniverse Laser Co., Ltd has its own brand "LANJI, VIAN", access to China's outstanding semiconductor laser supplier reputation, with a number of domestic and foreign technology patent certification, product quality inspection certification and TUV, BV, SGS, ISO9001: 2015 quality management system certification.
Warranty:
All products have been tested before the shipment and it was packaged in good condition. Please tested the products at first before you assemble it, if any problem here, please inform us within 3 days of receipt. We can arrange the replacement for you if the situation is confirmed.
