Features:
1. Tye.emission wavelength 450nm
2. OSRAM laser diode PLTB450B
3. TO18-5.6mm package type

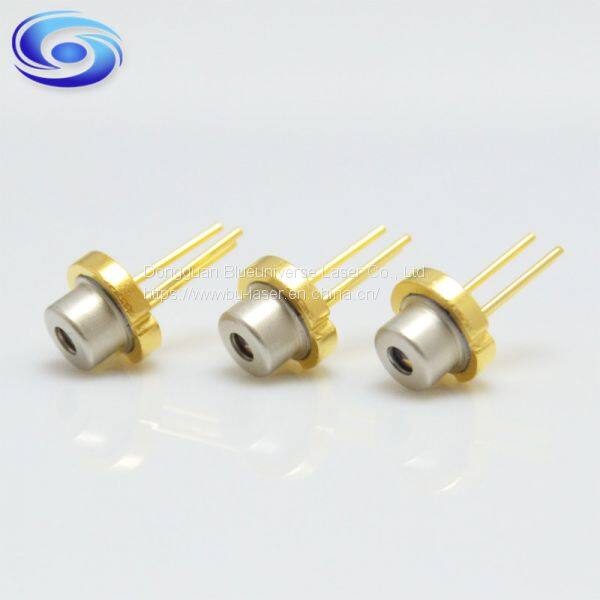

Osram High Power 450nm 1.6w TO56 Blue Laser Diode
Excellent beam quality High stability Advanced technology Long Lifetime
Absolute Maximum Ratings (Tc = 25ºC)
| Parament |
Symbol | Min. | Max. | Unit |
| Operating Current | if | - | 1.6 | A |
| Operating Temperature |
Tc | 0 |
+70 | °C |
| Storage Temperature | Tstg |
-40 |
+85 | °C |
| Reverse Voltage |
Vr | - |
5 | A |
| Soldering Temperature max. 10 sec | Ts |
- |
260 | °C |
| Junction temperature |
Tj |
- | 150 | °C |
Optical and Electrical Characteristics (Tc=25°C)
| Parament | Symbol | Min. | Tye. | Max. | Unit |
| Emission Wavelength | λp | 440 | 450 | 460 |
nm |

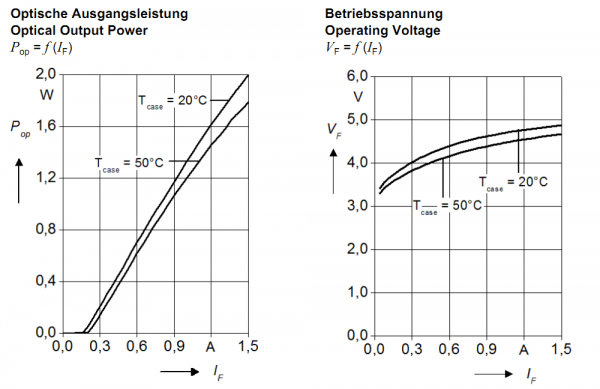

| Optical Output Power |
Po | 1.3 |
1.6 | - | W |
| Spectral Width(FWHM) | △λ | - | 4 | - | nm |

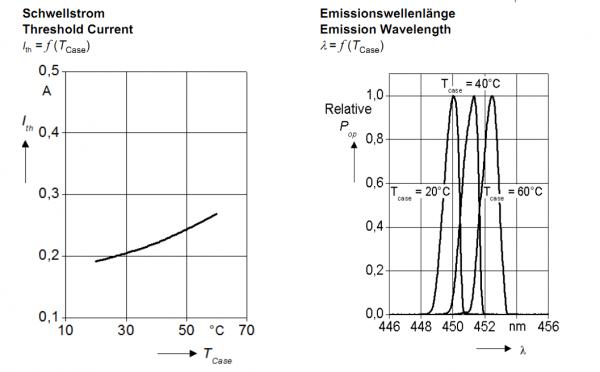

| Threshold Current | Ith | - |
0.2 | 0.3 | A |
| Operating Current | If | - | 1.2 | 1.5 | A |
| Operating Voltage | VF | - |
- | 6.0 | V |
| Beam Divergence(FWHM) |
θ∥ θ⊥ |
- 18 |
- - |
15 25 |
deg |
| Polarization Ratio | PR | - | 20:1 | - | TE:TM |
| Thermal resistance (junction to case) | Rth | - | 15 | - | K/W |
Description:

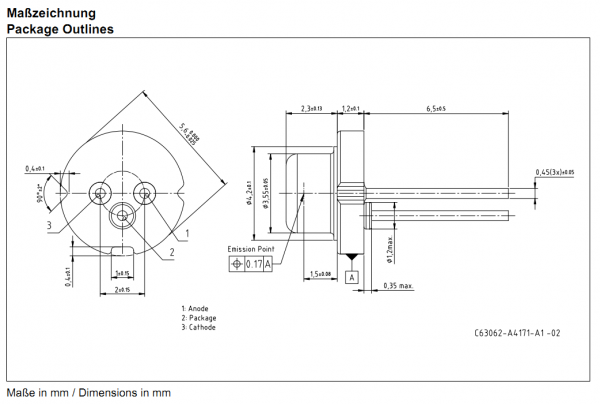

1. Multi Transverse Mode laser diode.2. Can Type: φ 5.6 mm Floating Mounted with Protection device.
3. OSRAM high power 450nm 1.6w blue laser diode PLTB 450B.
4. Package details: Plastic box package, it depends on different kinds of laser diodes of different sizes. Normally 200pcs in one tray, 10 trays in one bag, then 10 bags in one carton box.
Welcome your inquiry
TO: Ms. Elin
Mob: +86 18002689266
Dongguan BU Laser Co., Ltd
Shipping:
1.1-3 days after receiving the payment by T/T, PAYPAL.
2. It will be shipped by DHL/FedEx/UPS/TNT or other special ways, please contact us to choose the best one.
3. Delivery time will be usually 3~5 working days.
Company Information&Services:
A. Main products: Semiconductor laser diode, laser module, bicycle laser light.
B. Since the establishment, DongguanBlueuniverse Laser Co., Ltd has its own brand "LANJI, VIAN", access to China's outstanding semiconductor laser supplier reputation, with a number of domestic and foreign technology patent certification, product quality inspection certification and TUV, BV, SGS, ISO9001: 2015 quality management system certification.
Warranty:
All products have been tested before the shipment and it was packaged in good condition. Please tested the products at first before you assemble it, if any problem here, please inform us within 3 days of receipt. We can arrange the replacement for you if the situation is confirmed.
