Rohm Cheap 658nm 7mW TO5.6mm Red Laser Diode

Rohm Cheap 658nm 7mW TO5.6mm Red Laser Diode thumbnail-1
Rohm Cheap 658nm 7mW TO5.6mm Red Laser Diode thumbnail-2
Rohm Cheap 658nm 7mW TO5.6mm Red Laser Diode thumbnail-3
Rohm Cheap 658nm 7mW TO5.6mm Red Laser Diode thumbnail-4
Rohm Cheap 658nm 7mW TO5.6mm Red Laser Diode photo-1

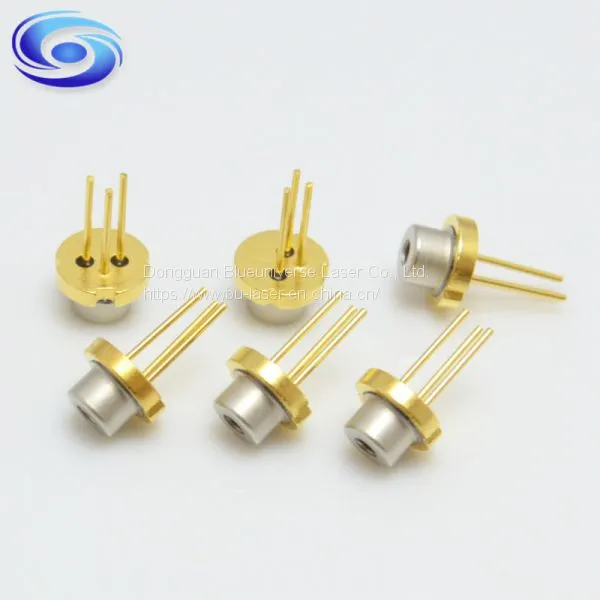

Rohm Cheap 658nm 7mW TO5.6mm Red Laser Diode photo-2
Rohm Cheap 658nm 7mW TO5.6mm Red Laser Diode photo-3
Rohm Cheap 658nm 7mW TO5.6mm Red Laser Diode photo-4
US$ 1 - 3 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
Rohm
Place of Origin:
Japan
Model Number:
RLD65MPT9
Contact Supplier Request Quote Chat Now
Dongguan Blueuniverse Laser Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Rohm
Place of Origin Japan
Model Number RLD65MPT9
Type Laser Diode
Max. Reverse Current Standard
Max. Forward Current Standard
Max. Reverse Voltage 2V
Max. Forward Voltage Standard
Package Type Through Hole

Features:
1. red laser diode 658nm 7mw
2. Rohm laser diode RLD65MPT9

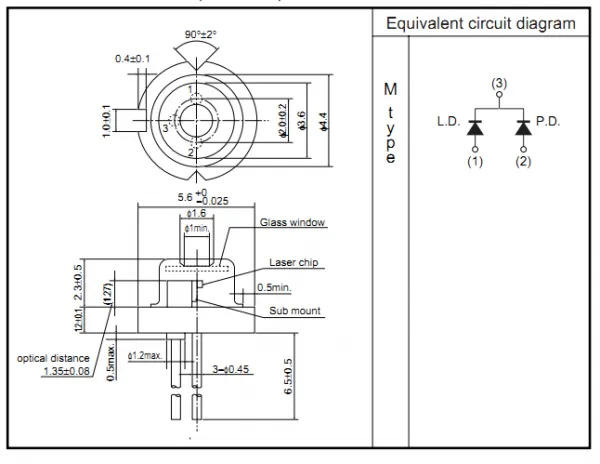

3. Small package: φ5.6mm


Rohm cheap 658nm 7mW TO5.6mm Red Laser Diode

Excellent beam quality   High stability   Advanced technology   Long Lifetime



Absolute Maximum Ratings    (Tc=25ºC)

Parameter Symbol Ratings Unit
Optical Output Power Po 7 mW
Reverse Voltage LD Vr (LD) 2 V

Pin PD Vr (PD) 30 V
Operating Temperature Tc -10~40 ºC
Storage Temperature Tstg -40~+85 ºC


Characteristics  (Tc=25ºC)




Parameter 		Symbol Conditions     Min. Typ. Max  Unit
Lasing Wavelength λd Po=5mW  650 660 666 nm
Threshold Current  Ith - - 13 40 mA
Operating Current Iop Po=5mW   - 18 50  mA
Operating Voltage   Vop Po=5mW   - 2.3 2.8 V
Output  Efficiency  η 2mW/(I(5mW)-I(3mW)) 0.4 0.9 1.3 W/A
Monitor current Im Po=5mW  0.05 0.15 0.4 mA
Beam Divergence  Parallel Θ// Po=5mW  6 8.5 14  °
Perpendicular θ⊥ 20 27 34  °
Beam tolerance Parallel θ//  Po=5mW  -4 0 +4  °
Perpendicular θ⊥ -4 0 +4  °
Emission Point Accuracy XYZ  - -100 0
 		 +100  μm
Astigmatic Difference As NA=0.55, Po=5mW - 1 6 μm



Description:

1. Optimization of a strained multiquantum well realizes the reduction in threshold current, and the good temperature characteristic.



2. Low threshold current: 13mA (T C =25°C)



3. Low noise is realized by a high-frequency modulation element.


4.Package details: Plastic box package, it depends on different kinds of laser diodes with different sizes.Normally 200pcs in one tray, 10 trays in one bag ,then 10 bags in one carton box.


Welcome your inquiry

TO: Ms. Elin

Mob: +86 18002689266

Dongguan BU Laser Co., Ltd


Packaging＆Shipping：

1.Plastic box,ESD bag,standard and normal package.

2.The items normally will be shipped within 3 working days after the payment is reached.Delivery time is about 3-5 days.

3.The items will be shipped by DHL/FedEx or other ways. Please contact us directly and choose the way you prefer.


Company Information&Services:
A. Main products: Semiconductor laser diode, laser module, bicycle laser light.

B.  Since the establishment, DongguanBlueuniverse Laser Co., Ltd has its own brand "LANJI, VIAN", access to China's outstanding semiconductor laser supplier reputation, with a number of domestic and foreign technology patent certification, product quality inspection certification and TUV, BV, SGS, ISO9001: 2015 quality management system certification.


Warranty:
    All products have been tested before the shipment and it was packaged in good condition. Please tested the products at first before you assemble it, if any problem here, please inform us within 3 days of receipt. We can arrange the replacement for you if the situation is confirmed.





Product Tags: Rohm Laser Diode , Cheap Laser Diode , 658nm Laser Diode , 7mw Laser Diode , Red Laser diode , TO5.6mm Laser Diode
