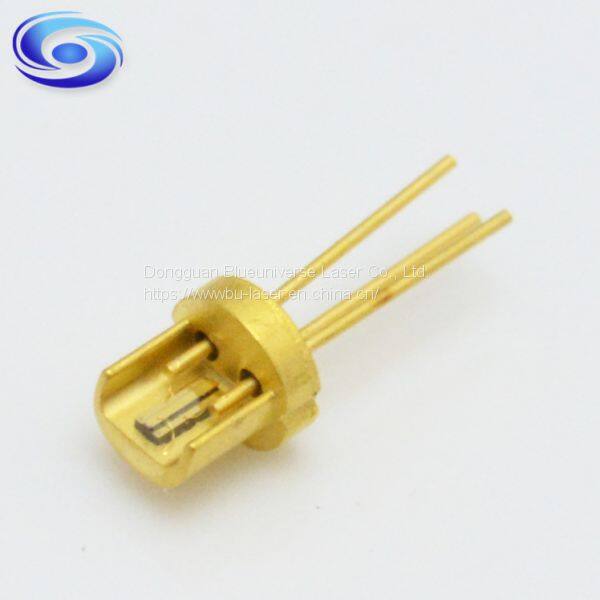

Mitsubishi Red 638nm 500mw TO56 Laser Diode(ML501P75)

Mitsubishi Red 638nm 500mw TO56 Laser Diode(ML501P75) thumbnail-1
Mitsubishi Red 638nm 500mw TO56 Laser Diode(ML501P75) thumbnail-2
Mitsubishi Red 638nm 500mw TO56 Laser Diode(ML501P75) thumbnail-3
Mitsubishi Red 638nm 500mw TO56 Laser Diode(ML501P75) photo-1

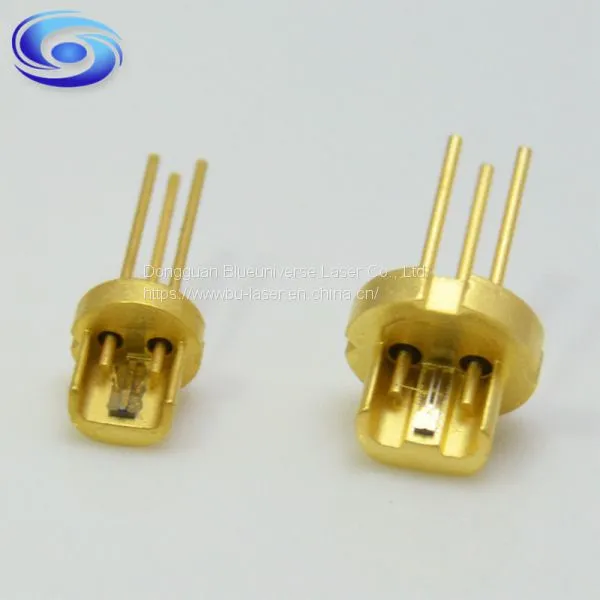

Mitsubishi Red 638nm 500mw TO56 Laser Diode(ML501P75) photo-2

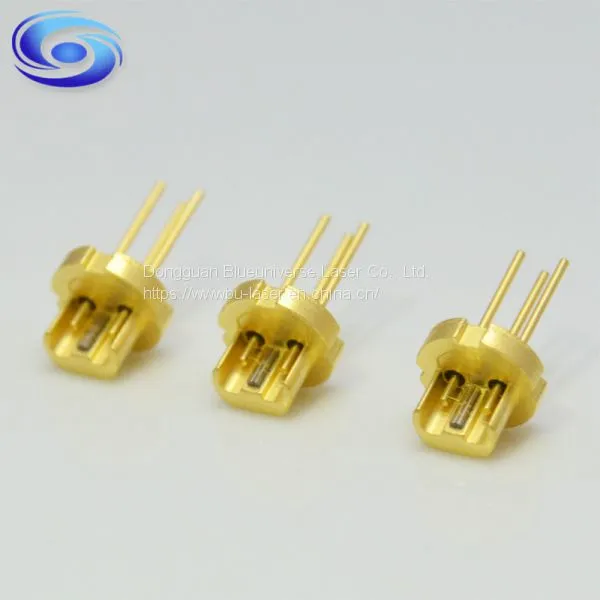

Mitsubishi Red 638nm 500mw TO56 Laser Diode(ML501P75) photo-3
US$ 15 - 19 MOQ: 1 Piece
Key Specifications
Get Latest Price
Model Number:
ML501P75
Type:
Laser Diode
Max. Reverse Current:
Standard
Contact Supplier Request Quote Chat Now
Dongguan Blueuniverse Laser Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number ML501P75
Type Laser Diode
Max. Reverse Current Standard
Max. Forward Current Standard
Max. Reverse Voltage 2V
Max. Forward Voltage Standard
Package Type Through Hole

Features:

1.Visible Light:638nm(Tye)

2. Optical output power : 500mW CW

3. TO18 package: 5.6mm Capless PKG



 Mitsubishi red 638nm 500mw TO56 Laser Diode(ML501P75)

Excellent beam quality   High stability   Advanced technology   Long Lifetime



Absolute Maximum Ratings (Tc = 25ºC)


Parameter Symbol   Ratings   Unit
Light output power CW Po 0.8 W
Pulse 1.5
Reverse voltage VRL 2 V
Operating Case Temperature   Tc -5 ~ +40    ℃
Storage Temperature   Tstg -40 ~+100    ℃

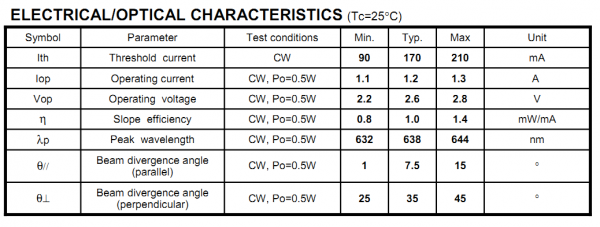

Optical and Electrical Characteristics (Tc=25°C)






Description:

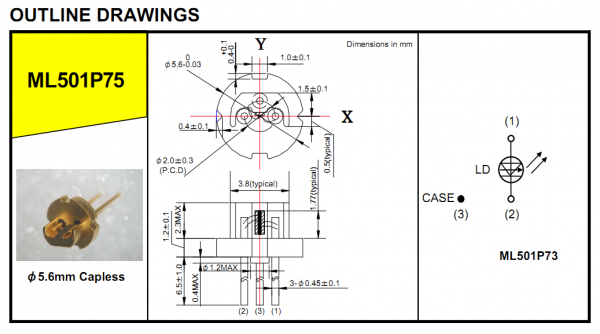

1. Can Type: φ 5.6 mm capless PKG



2. Mitsubishi red 638nm 500mw TO56 Laser Diode(ML501P75)


3. Package details:: Plastic box package, it depends on different kinds of laser diodes of different sizes. Normally 50pcs in one tray, 10 trays in one bag, then 10 bags in one carton box.



Welcome your inquiry

TO: Ms. Elin

Mob: +86 18002689266

Dongguan BU Laser Co., Ltd


Shipping:


1.1-3 days after receiving the payment by T/T, PAYPAL.


2. It will be shipped by DHL/FedEx/UPS/TNT or other special ways, please contact us to choose the best one.


3. Delivery time will be usually 3~5 working days.


Company Information&Services:

A. Main products: Semiconductor laser diode, laser module, bicycle laser light.

B.  Since the establishment, DongguanBlueuniverse Laser Co., Ltd has its own brand "LANJI, VIAN", access to China's outstanding semiconductor laser supplier reputation, with a number of domestic and foreign technology patent certification, product quality inspection certification and TUV, BV, SGS, ISO9001: 2015 quality management system certification.


Warranty:
    All products have been tested before the shipment and it was packaged in good condition. Please tested the products at first before you assemble it, if any problem here, please inform us within 3 days of receipt. We can arrange the replacement for you if the situation is confirmed.





Product Tags: Mitsubishi Laser Diode , Red Laser Diode , 638nm Laser Diode , 500mw Laser Diode , TO56 Laser Diode , ML501P75 Laser Diode
