High Quality Rohm 780nm 5mw IR Wavelength Laser Diode for Lidar

High Quality Rohm 780nm 5mw IR Wavelength Laser Diode for Lidar thumbnail-1
High Quality Rohm 780nm 5mw IR Wavelength Laser Diode for Lidar thumbnail-2
High Quality Rohm 780nm 5mw IR Wavelength Laser Diode for Lidar thumbnail-3
High Quality Rohm 780nm 5mw IR Wavelength Laser Diode for Lidar photo-1

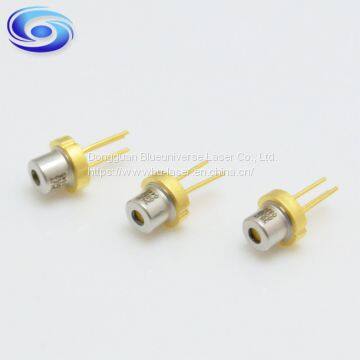

High Quality Rohm 780nm 5mw IR Wavelength Laser Diode for Lidar photo-2

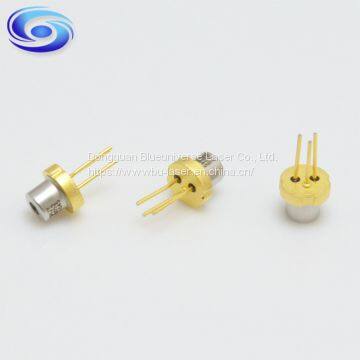

High Quality Rohm 780nm 5mw IR Wavelength Laser Diode for Lidar photo-3
US$ 4 - 6 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
Rohm
Place of Origin:
Japan
Model Number:
RLD78MYA1
Contact Supplier Request Quote Chat Now
Dongguan Blueuniverse Laser Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Rohm
Place of Origin Japan
Model Number RLD78MYA1
Type Laser Diode
Max. Reverse Current Standard
Max. Forward Current Standard
Max. Reverse Voltage 2V
Max. Forward Voltage Standard
Package Type Through Hole

Features:

1.Optical output power:5mw

2.Wavelength:780nm

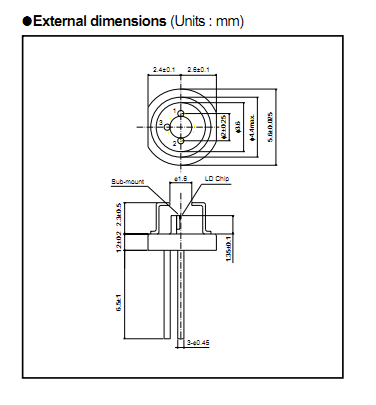

3.Package type:TO18-5.6mm



High Quality Rohm 780nm 5mw IR wavelength Laser Diode for Lidar

Excellent beam quality   High stability   Advanced technology   Long Lifetime


Absolute Maximum Ratings (Tc=25℃)

Parameter

 Symbols

  Ratings

  Units

Optical Output

 Po(CW)

   5

  mW

Reverse

Voltage

Laser

   Vr

    2

   V

Photodiode

 Vr (PIN)

   30

   V

Operating Temperature

  Top

 -10 ~ +70

   ℃

Storage Temperature

  Tstg

 -40 ~ +85

   ℃

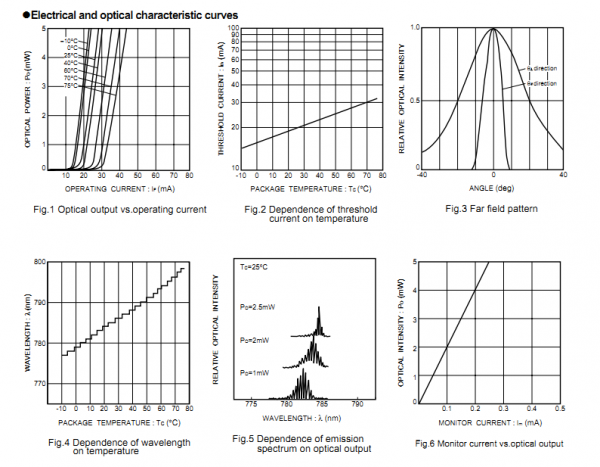

Electrical and optical Characteristics(Tc=25℃)


Parameter

  Symbols

  Conditions

  Min

  Typ

  Max

 Units

Threshold   Current

    Ith

      -

   -

  35

  60

  mA

Operating   Current

    Iop

  Po=5mW

   -

  45

  70

  mA

Operating   Voltage

    Vop

  Po=5mW

   -

  1.9

  2.3

  Volts


Differential Efficiency



    η

-



  0.1



  0.25



   0.6



mW/mA

2mW/(I(3mW)-I(1mW))

Monitor   Current

    Im

  Po=5mW,VR(PIN)=15V

 0.05

  0.15

  0.3

  mA

Divergence

angle

Parallel

   θ‖

  Po=5mW

   8

  11

  15

  deg

Perpendicular

   θ⊥

  Po=5mW

   20

  37

  45

  deg

Parallel   Deviation Angle

  △θ‖

  Po=5mW

   -

   0

   ±2

  deg

Perpendicular   Deviation Angle

  △θ⊥

  Po=5mW

   -

   0

   ±3

  deg

Emission   Point Accuracy

△X,△Y,△Z

  -

  -

   -

  ±100

  um

Peak emission wavelength

    λp

  Po=5mW

  770

  785

  810

  nm




Description:

1. Multi Transverse Mode laser diode.

 2. High quality Rohm TO56 780nm 5mw IR wavelength laser diode.


3. Plastic box,standard and normal package.



Welcome your inquiry

TO: Ms. Elin

Mob: +86 18002689266

Dongguan BU Laser Co., Ltd


Shipping:


1.1-3 days after receiving the payment by T/T, PAYPAL.


2. It will be shipped by DHL/FedEx/UPS/TNT or other special ways, please contact us to choose the best one.


3. Delivery time will be usually 3~5 working days.




Company Information&Services:

A. Main products: Semiconductor laser diode, laser module, bicycle laser light.

B.  Since the establishment, DongguanBlueuniverse Laser Co., Ltd has its own brand "LANJI, VIAN", access to China's outstanding semiconductor laser supplier reputation, with a number of domestic and foreign technology patent certification, product quality inspection certification and TUV, BV, SGS, ISO9001: 2015 quality management system certification.




FAQ:

Q: How to contact us?

A: You can send messages to us on trade messenger directly, or send us an email.


Warranty:

    All products have been tested before the shipment and it was packaged in good condition. Please tested the products at first before you assemble it, if any problem here, please inform us within 3 days of receipt. We can arrange the replacement for you if the situation is confirmed.






Product Tags: High quality Laser Diode , 780nm Laser Diode , IR wavelength Laser Diode , ROHM Laser Diode , 5mw Laser Diode , Laser Diode for lidar
