High Quality C-Mount 808nm 2W Infrared Laser Diode

High Quality C-Mount 808nm 2W Infrared Laser Diode thumbnail-1
High Quality C-Mount 808nm 2W Infrared Laser Diode thumbnail-2
High Quality C-Mount 808nm 2W Infrared Laser Diode thumbnail-3
High Quality C-Mount 808nm 2W Infrared Laser Diode photo-1
High Quality C-Mount 808nm 2W Infrared Laser Diode photo-2
High Quality C-Mount 808nm 2W Infrared Laser Diode photo-3
US$ 21 - 25 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Lanji
Place of Origin:
China
Model Number:
JLD80200Z-CF
Contact Supplier Request Quote Chat Now
Dongguan Blueuniverse Laser Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Lanji
Place of Origin China
Model Number JLD80200Z-CF
Type Laser Diode
Max. Reverse Current Standard
Max. Forward Current Standard
Max. Reverse Voltage Standard
Max. Forward Voltage Standard
Package Type Through Hole

Features:

1.Wavelength:808nm

2.C-Mount package type

3.High quality laser diode



High Quality C-Mount  808nm 2W infrared Laser Diode

Excellent beam quality   High stability   Advanced technology   Long Lifetime


Absolute Maximum Ratings (Tc = 25ºC)
ItemSymbolRatingsUnit
Optical output powerPo2000mW
LD Reverse VoltageVR(LD)2V
Operating TemperatureTopr  10~ +30°C
Storage TemperatureTstg  10~ +85°C


Optical and Electrical Characteristics (Tc=25°C)

ParameterSymbolTest ConditionMinTypMaxUnit
Optical Output PowerPoCW-2000-mW
Peak WavelengthλpPo=2000mW805808810nm
Threshold currentIthCW--500mA
Operating currentIopPo=2000mW--2500mA
Operating voltageVopPo=2000mW1.8-2.4V
Slope EfficiencyCWη-1.01.2mW/mA





Description:

1. Can Type: C-mount Floating Mounted with Protection device.

2. High quality 808nm 2w infrared laser diode


3. Plastic box,standard and normal package.


Welcome your inquiry

TO: Ms. Elin

Mob: +86 18002689266

Dongguan BU Laser Co., Ltd


Shipping:


1.1-3 days after receiving the payment by T/T, PAYPAL.


2. It will be shipped by DHL/FedEx/UPS/TNT or other special ways, please contact us to choose the best one.


3. Delivery time will be usually 3~5 working days.



Company Information&Services:

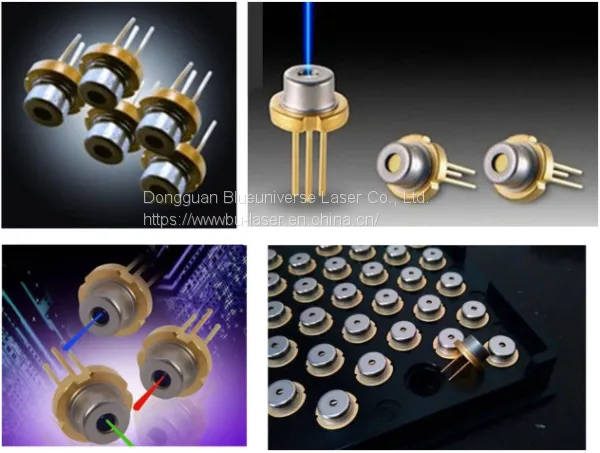

A. Main products: Semiconductor laser diode, laser module, bicycle laser light.

B.  Since the establishment, DongguanBlueuniverse Laser Co., Ltd has its own brand "LANJI, VIAN", access to China's outstanding semiconductor laser supplier reputation, with a number of domestic and foreign technology patent certification, product quality inspection certification and TUV, BV, SGS, ISO9001: 2015 quality management system certification.



FAQ:

Q: How to contact us?

A: You can send messages to us on trade messenger directly, or send us an email.


Warranty:

    All products have been tested before the shipment and it was packaged in good condition. Please tested the products at first before you assemble it, if any problem here, please inform us within 3 days of receipt. We can arrange the replacement for you if the situation is confirmed.




Product Tags: High quality Laser Diode , C-Mount Laser Diode , 808nm Laser Diode , 2W Laser Diode , infrared Laser Diode
