Help CenterHot Selling TO18-5.6mm 980nm 100mw Infrared Laser Diode
Related Products
-
High Quality C-Mount 808nm 2W Infrared Laser DiodeUS$ 21 - 25MOQ: 1 Piece -
In Stock C-Mount 808nm 1W 1000mw Infrared Laser DiodeUS$ 12 - 16MOQ: 1 Piece
-
Low Price 650nm 10mw TO56 Red Laser DiodeUS$ 1 - 2MOQ: 10 Pieces
-
Wholesale 808nm 300mw TO56 IR Wavelength Laser DiodeUS$ 1 - 2MOQ: 1 Piece
-
Best Selling Rohm 635nm 10mw Red Laser DiodeUS$ 2 - 4MOQ: 1 Piece
Features:
1.Wavelength:980nm
2.Light Output:100mw

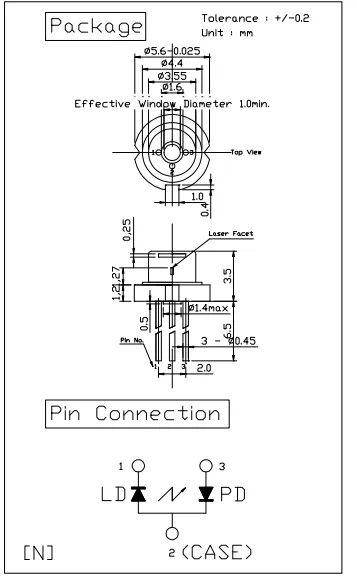

3.Package type:TO18-5.6mm
Hot Selling TO18-5.6mm 980nm 100mw infrared Laser Diode
Excellent beam quality High stability Advanced technology Long Lifetime
Absolute Maximum Ratings (Tc=25℃)
Parameter |
Symbols |
Ratings |
Units |
|
Optical Output |
Po(CW) |
100 |
mW |
|
|
Reverse Voltage |
Laser |
Vr |
2 |
V |
PIN PD |
Vr (PIN) |
30 |
V |
|
Operating Temperature |
Top |
-10 ~ +40 |
℃ |
|
Storage Temperature |
Tstg |
-40 ~ +80 |
℃ |
|
Electrical and optical Characteristics(Tc=25℃)
Parameter |
Symbols |
Conditions |
Min |
Typ |
Max |
Units |
|
Threshold Current |
Ith |
- |
- |
35 |
55 |
mA |
|
Operating Current |
Iop |
Po=100mW |
- |
160 |
180 |
mA |
|
Operating Voltage |
Vop |
Po=100mW |
- |
1.6 |
2.1 |
Volts |
|
|
Slope Efficiency |
η |
- |
0.5 |
0.8 |
- |
mW/mA |
|
- | |||||||
Monitor Current |
Im |
Po=100mW |
- |
0.2 |
0.8 |
mA |
|
|
Beam Divergence (FWHM) |
Parallel |
θ‖ |
Po=100mW |
8 |
12 |
14 |
deg |
Perpendicular |
θ⊥ |
Po=100mW |
30 |
35 |
40 |
deg |
|
Parallel Deviation Angle |
△θ‖ |
Po=100mW |
-3 |
- |
3 |
deg |
|
Perpendicular Deviation Angle |
△θ⊥ |
Po=100mW |
-3 |
- |
3 |
deg |
|
Emission Point Accuracy |
△X,△Y,△Z |
Po=100mW |
-80 |
- |
80 |
um |
|
Lasing Wavelength |
λp |
Po=100mW |
965 |
980 |
995 |
nm |
|
Description:
1. Multi Transverse Mode laser diode.
2. HOT SELLING TO56 980nm 100mw infrared laser diode.
3. Plastic box,standard and normal package.
Welcome your inquiry
TO: Ms. Elin
Mob: +86 18002689266
Dongguan BU Laser Co., Ltd
Shipping:
1.1-3 days after receiving the payment by T/T, PAYPAL.
2. It will be shipped by DHL/FedEx/UPS/TNT or other special ways, please contact us to choose the best one.
3. Delivery time will be usually 3~5 working days.
Company Information&Services:
A. Main products: Semiconductor laser diode, laser module, bicycle laser light.
B. Since the establishment, DongguanBlueuniverse Laser Co., Ltd has its own brand "LANJI, VIAN", access to China's outstanding semiconductor laser supplier reputation, with a number of domestic and foreign technology patent certification, product quality inspection certification and TUV, BV, SGS, ISO9001: 2015 quality management system certification.
FAQ:
Q: How to contact us?
Warranty:
All products have been tested before the shipment and it was packaged in good condition. Please tested the products at first before you assemble it, if any problem here, please inform us within 3 days of receipt. We can arrange the replacement for you if the situation is confirmed.
