High Quality and Cheap 808nm 200mw Infrared Laser Diode

High Quality and Cheap 808nm 200mw Infrared Laser Diode thumbnail-1
High Quality and Cheap 808nm 200mw Infrared Laser Diode thumbnail-2
High Quality and Cheap 808nm 200mw Infrared Laser Diode thumbnail-3

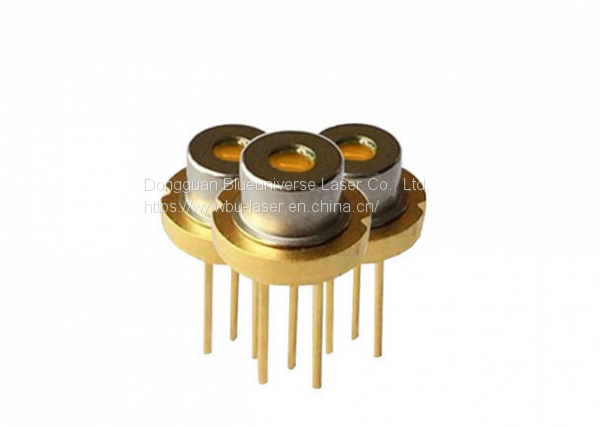

High Quality and Cheap 808nm 200mw Infrared Laser Diode photo-1

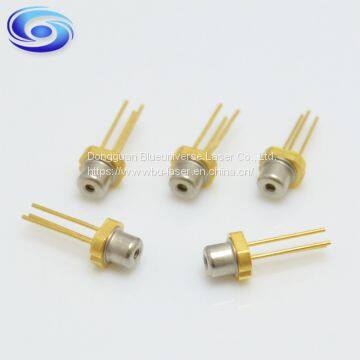

High Quality and Cheap 808nm 200mw Infrared Laser Diode photo-2

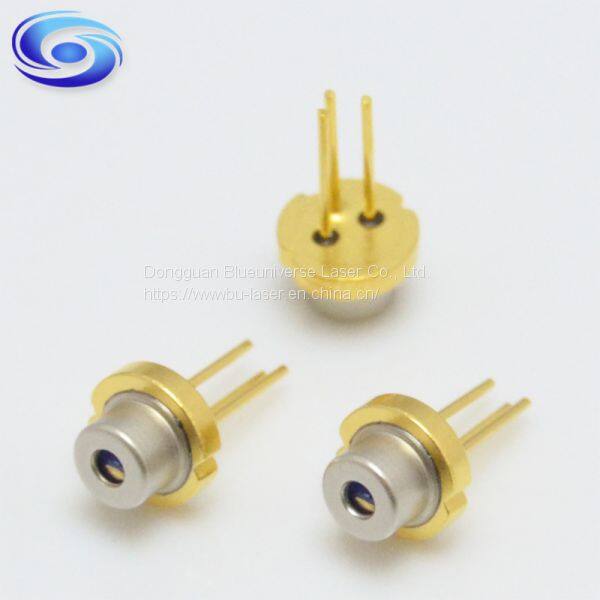

High Quality and Cheap 808nm 200mw Infrared Laser Diode photo-3
US$ 1 - 2 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
LanJi
Place of Origin:
China
Model Number:
LJ808LD200N4T
Contact Supplier Request Quote Chat Now
Dongguan Blueuniverse Laser Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name LanJi
Place of Origin China
Model Number LJ808LD200N4T
Type Laser Diode
Max. Reverse Current Standard
Max. Forward Current Standard
Max. Reverse Voltage 2V
Max. Forward Voltage Standard
Package Type Through Hole

Features:

1.Wavelength: 808nm

2.Light Output: 200mW(CW)

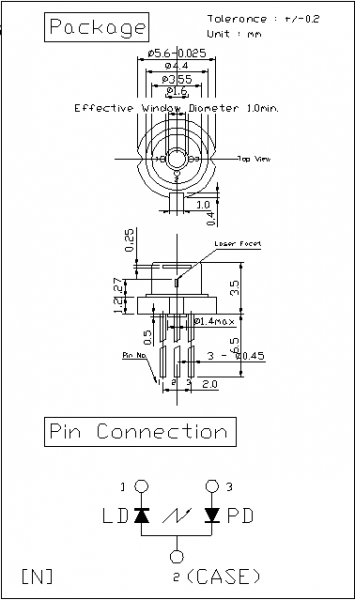

3.Package Type: TO-18(Φ5.6mm)



High Quality and cheap 808nm 200mw infrared Laser Diode

Excellent beam quality   High stability   Advanced technology   Long Lifetime




Absolute Maximum Ratings (Tc=25℃)

Parameter

 Symbols

  Ratings

  Units

Optical Output

 Po(CW)

   350

  mW

Reverse

Voltage

Laser

   Vr

    2

   V

PIN PD

 Vr (PIN)

   30

   V

Operating Temperature

  Top

 -10 ~ +40

   ℃

Storage Temperature

  Tstg

 -40 ~ +80

   ℃




Electrical and optical Characteristics(Tc=25℃)

Parameter

  Symbols

  Conditions

  Min

  Typ

  Max

 Units

Threshold   Current

    Ith

      -

   -

  50

  60

  mA

Operating   Current

    Iop

  Po=200mW

   -

  260

  280

  mA

Operating   Voltage

    Vop

  Po=200mW

   -

  1.8

  2.1

  Volts

Slope

Efficiency



    η

-



  0.5



  0.8



   -



mW/mA

-

Monitor   Current

    Im

  Po=200mW

   -

  0.2

  0.8

  mA

Beam   Divergence

(FWHM)

Parallel

   θ‖

  Po=200mW

   8

  10

  14

  deg

Perpendicular

   θ⊥

  Po=200mW

   30

  35

  40

  deg

Parallel   Deviation Angle

  △θ‖

  Po=200mW

   -3

   -

   3

  deg

Perpendicular   Deviation Angle

  △θ⊥

  Po=200mW

   -3

   -

   3

  deg

Emission   Point Accuracy

△X,△Y,△Z

  Po=200mW

  -80

   -

  80

  um

Lasing   Wavelength

    λp

  Po=200mW

  805

  808

  815

  nm




Description:

1. Small Package 5.6mm Diameter.

2. High quality 808nm infrared laser diode 200mw.


3.   Package details: Plastic box package, it depends on different kinds of laser diodes with different sizes.Normally 100pcs in one tray, 10 trays in one bag ,then 10 bags in one carton box.



Welcome your inquiry

TO: Ms. Elin

Mob: +86 18002689266

Dongguan BU Laser Co., Ltd



Shipping:


1.1-3 days after receiving the payment by T/T, PAYPAL.


2. It will be shipped by DHL/FedEx/UPS/TNT or other special ways, please contact us to choose the best one.


3. Delivery time will be usually 3~5 working days.


Company Information&Services:

A. Main products: Semiconductor laser diode, laser module, bicycle laser light.

B.  Since the establishment, DongguanBlueuniverse Laser Co., Ltd has its own brand "LANJI, VIAN", access to China's outstanding semiconductor laser supplier reputation, with a number of domestic and foreign technology patent certification, product quality inspection certification and TUV, BV, SGS, ISO9001: 2015 quality management system certification.



FAQ:

Q: How to contact us?

A: You can send messages to us on trade messenger directly, or send us an email.


Warranty:

    All products have been tested before the shipment and it was packaged in good condition. Please tested the products at first before you assemble it, if any problem here, please inform us within 3 days of receipt. We can arrange the replacement for you if the situation is confirmed.








Product Tags: Cheap Laser Diode , 808nm Laser Diode , 200mw Laser Diode , infrared Laser Diode , High quality Laser Diode
