Help CenterLow Power ROHM 635nm 5mw Salable Laser Diode
Related Products
-
Cheap and Small Power ROHM 635nm 5mw Laser DiodeUS$ 1 - 2MOQ: 10 Pieces -
Salable QSI 635nm 10mw Orange Red Color Laser DiodeUS$ 2 - 4MOQ: 1 Piece
-
Low Power Rohm TO56 780nm 5mw Infrared Laser DiodeUS$ 4 - 6MOQ: 10 Pieces
-
High Quality Rohm 780nm 5mw IR Wavelength Laser Diode for LidarUS$ 4 - 6MOQ: 10 Pieces
-
Hot Selling TO18-5.6mm 980nm 100mw Infrared Laser DiodeUS$ 4 - 6MOQ: 1 Piece
Features：
1.Wavelength: 635nm
2.Output power: 5mw

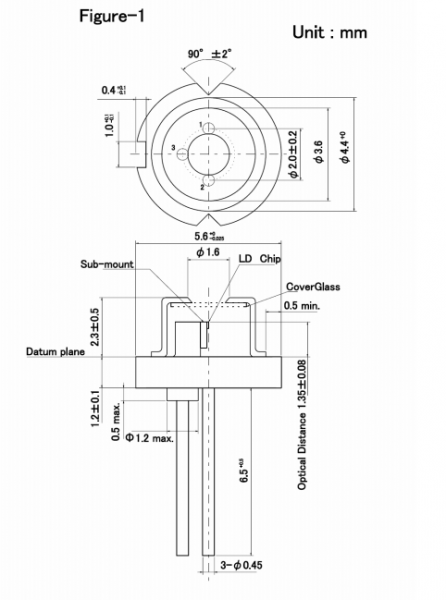

3.Package Type: TO-18(Φ5.6mm)

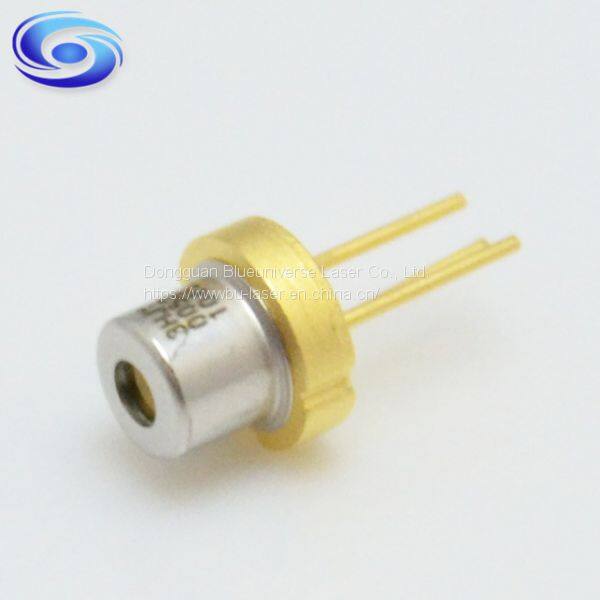

Low power ROHM 635nm 5mw salable Laser Diode
Excellent beam quality High stability Advanced technology Long Lifetime
Absolute Maximum Ratings (Tc=25℃)
| Parameter | Symbol | Ratings | Unit |
| Optical Output Power | Po | 6 | mW |
| LD Reverse Voltage | Vr (LD) | 2 | V |
| Operating Temperature | Tc | -10~+40 | ºC |
| Storage Temperature | Tstg | -40~+85 | ºC |
Electrical and optical Characteristics(Tc=25℃)
Parameter | Symbols | Conditions | Min | Typ | Max | Units | |
Threshold Current | Ith | - | - | 23 | 35 | mA | |
Operating Current | Iop | Po=5mW | - | 33 | 45 | mA | |
Operating Voltage | Vop | Po=5mW | - | 2.2 | 2.7 | Volts | |
Output Efficiency |
η |
0.2 |
0.5 |
0.8 |
mW/mA | ||
| 2mW/I(5mW)-I(3mW) | |||||||
Monitor Current | Im | Po=5mW | 0.08 | 0.27 | 0.40 | mA | |
Beam Divergence | Parallel | θ‖ | Po=5mW | 6 | 8 | 12 | deg |
Perpendicular | θ⊥ | Po=5mW | 28 | 33 | 40 | deg | |
Beam tolerance | △θ‖ | Po=5mW | -2 | - | +2 | deg | |
Beam tolerance | △θ⊥ | Po=5mW | -3 | - | +3 | deg | |
Emission Point Accuracy | △X,△Y,△Z | Po=5mW | -100 | - | +100 | um | |
Lasing Wavelength | λp | Po=5mW | 630 | 635 | 640 | nm | |
Description:
1. Small Package 5.6mm Diameter.
2. Low power 635nm 5mw salable red laser diode .

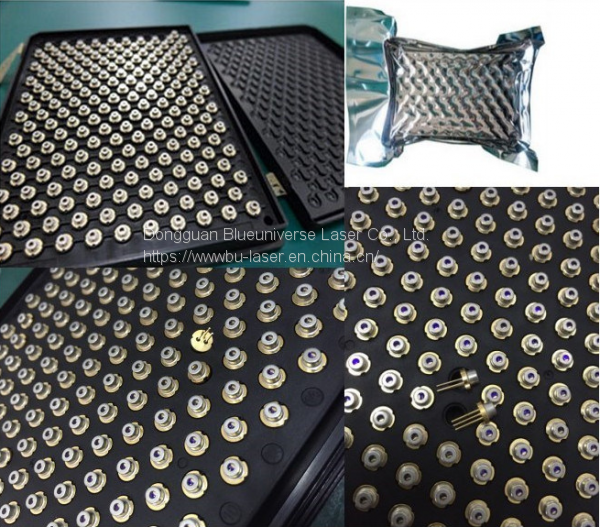

3. Plastic box,standard and normal package.
Welcome your inquiry
TO: Ms. Elin
Mob: +86 18002689266
Dongguan BU Laser Co., Ltd
Shipping:
1.1-3 days after receiving the payment by T/T, PAYPAL.
2. It will be shipped by DHL/FedEx/UPS/TNT or other special ways, please contact us to choose the best one.
3. Delivery time will be usually 3~5 working days.
Company Information&Services:
A. Main products: Semiconductor laser diode, laser module, bicycle laser light.
B. Since the establishment, DongguanBlueuniverse Laser Co., Ltd has its own brand "LANJI, VIAN", access to China's outstanding semiconductor laser supplier reputation, with a number of domestic and foreign technology patent certification, product quality inspection certification and TUV, BV, SGS, ISO9001: 2015 quality management system certification.
FAQ:
Q: How to contact us?
Warranty:
All products have been tested before the shipment and it was packaged in good condition. Please tested the products at first before you assemble it, if any problem here, please inform us within 3 days of receipt. We can arrange the replacement for you if the situation is confirmed.
