Help CenterBest Selling 850nm 300mw Infrared JDSU Laser Diode
Related Products
-
In Stock JDSU TO56 850nm 200mw Infrared Laser DiodeUS$ 6 - 8MOQ: 10 Pieces -
High Quality and Cheap 808nm 200mw Infrared Laser DiodeUS$ 1 - 2MOQ: 10 Pieces
-
QSI TO56 808nm 200mw Infrared Laser DiodeUS$ 1 - 2MOQ: 10 Pieces
-
Low Power Rohm 635nm 10mw Red Color Laser DiodeUS$ 2 - 4MOQ: 1 Piece
-
SHARP 635nm 638nm 180mw Red Laser DiodeUS$ 15 - 18MOQ: 1 Piece
Features:
1.Wavelength:850nm
2.Light Output:300mW (CW)

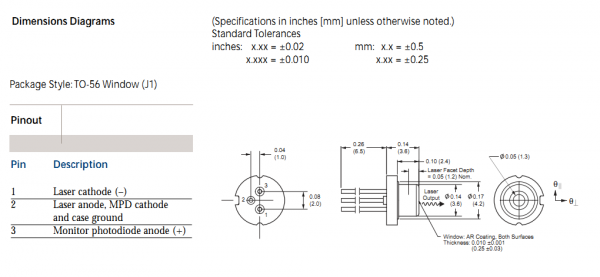

3.Package Type:TO-18(φ5.6mm)
Best Selling 850nm 300mw infrared JDSU Laser Diode
Excellent beam quality High stability Advanced technology Long Lifetime

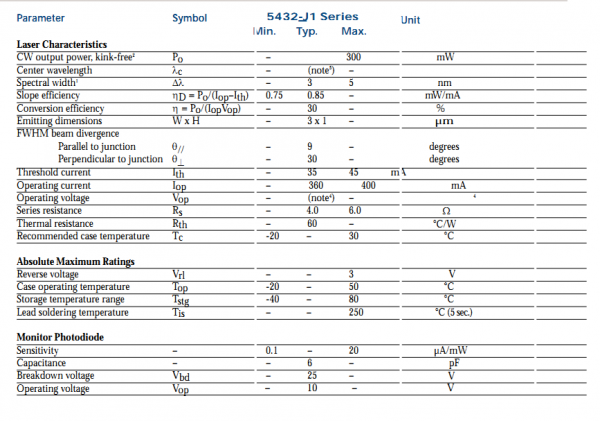

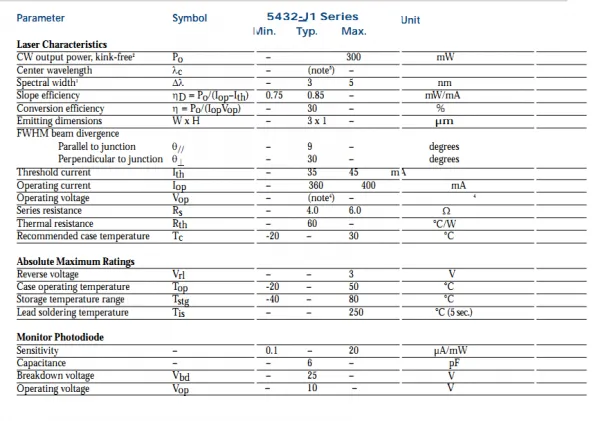

Absolute Maximum Ratings (Tc = 25ºC)
| Parameter | Symbol | Ratings | Unit |
| Optical Output Power | Po(CW) | 300 | mW |
| Reverse Voltage | Vr | 2 | V |
| Operating Temperature | Top | -20~+50 | ºC |
| Storage Temperature | Tstg | -40~+80 | ºC |
Optical and Electrical Characteristics (Tc=25°C)
| Parameter | Symbols | Conditions | Min | Typ | Max | Units | |
| Threshold Current | Ith | - | - | 35 | 45 | mA | |
| Operating Current | Iop | Po=300mW | - | 360 | 400 | mA | |
| Operating Voltage | Vop | Po=300mW | - | 1.8 | 2.1 | Volts | |
| Slope Efficiency |
η |
- | 0.75 |
0.78 |
- |
mW/mA |
|

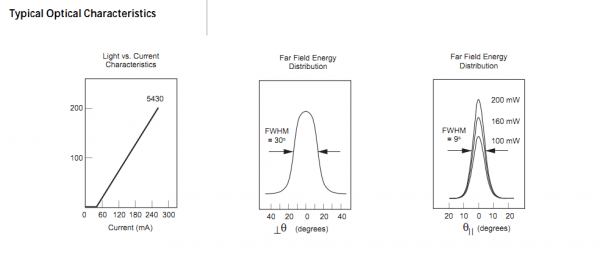

| Beam Divergence (FWHM) |
Parallel | θ∥ | Po=300mW | - | 9 | - | deg |
| Perpendicular | θ⊥ | Po=300mW | - | 30 | - | deg |
|
Description:
1. Small Package 5.6mm Diameter.
2. High quality 850nm infrared laser diode 300mw.
3. Package details: Plastic box package, it depends on different kinds of laser diodes with different sizes.Normally 100pcs in one tray, 10 trays in one bag ,then 10 bags in one carton box.
Welcome your inquiry
TO: Ms. Elin
Mob: +86 18002689266
Dongguan BU Laser Co., Ltd
Shipping:
1.1-3 days after receiving the payment by T/T, PAYPAL.
2. It will be shipped by DHL/FedEx/UPS/TNT or other special ways, please contact us to choose the best one.
3. Delivery time will be usually 3~5 working days.
Company Information&Services:
A. Main products: Semiconductor laser diode, laser module, bicycle laser light.
B. Since the establishment, DongguanBlueuniverse Laser Co., Ltd has its own brand "LANJI, VIAN", access to China's outstanding semiconductor laser supplier reputation, with a number of domestic and foreign technology patent certification, product quality inspection certification and TUV, BV, SGS, ISO9001: 2015 quality management system certification.
Warranty:
All products have been tested before the shipment and it was packaged in good condition. Please tested the products at first before you assemble it, if any problem here, please inform us within 3 days of receipt. We can arrange the replacement for you if the situation is confirmed.
