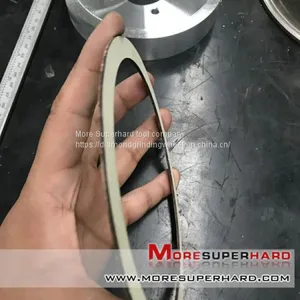

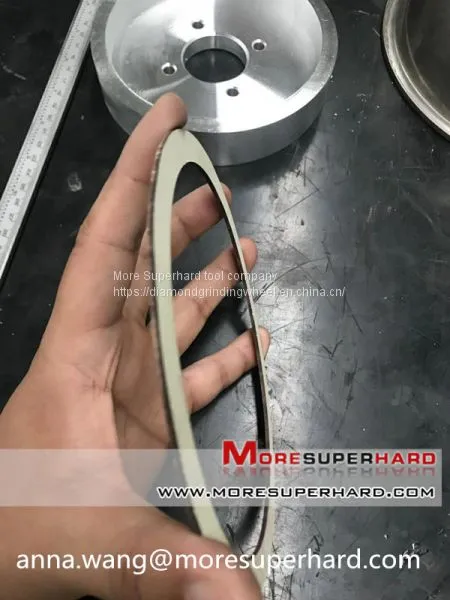

PCD Super-finish Grinding,vitrified diamond grinding wheel

PCD Super-finish Grinding,vitrified diamond grinding wheel

Especially for super finish grinding of PCD/PCBN tools

Fast Grinding

Good self-sharpening and rigidity

Superior insert edge quality

Good tool shape retention

Long tool lifespan

PRODUCT DETAILS

Application:

Especially for super finish grinding of PCD/PCBN tools. Usually for finish grinding, grits choose 3000# and 4000#, some even use 6000#.

Advantages:

1. Fast Grinding

2. Good self-sharpening and rigidity

3. Superior insert edge quality

4. Good tool shape retention

5. Long tool lifespan

DRAWING&SPECIFICATION

Type	D(mm)	T(mm)	H(mm)	W(mm)	X(mm)
6A2	100	40	32,40	3,5,10,20	10
	125	40	32,40	3,5,10	10
	150	40	32,40	3,5,10,15,20	10
Grit: 325/400, W40(500#), W28(600#), W20(800#), W10(1500#), W7(2000),W5(3000#), W3.5(4000#),6000#...

Suitable Grinding Machines:COBORN,EWAG, FARMAN,MYTECH...

Grain Size Selection:

Grain Size	Machining Type	Application
W40(400-500#,D35)W28(600-700#,D20)	rough	Regrinding a blade edge profile and sharpening of much worn inserts
W20(800-1000#,D20)	universal	Standard grain size also can get a high sharpening efficiency, good quality surfaces
W10 (1500#, D15A) W7(2000#,D15B)	finish	Finishing grinding - getting a very good quality of machined surfaces
W5 (3000#, D7) W3.5 (4000#,D3)	super finish	Super finish grinding - getting a brilliant quality of machined surfaces
