Diamond Dresser tools
1. Terminology
A. Dressing: The process of exposing new abrasive grain and new sharp cuting edge.
B. Truing: The process of forming the working face of the grinding wheel so thatitis
concentric to the axis of the grinding wheel.
C. Forming : The process of the shaping precise form to the grinding wheel, screw grind wheels and geared grind wheels into the required shape.
If you need any products, do not hesitate to contact
Skype:Annawng
WhatsApp:+8615617785923
@moresuperhard.com
2. Dresser's Type
1) Single-point Dresser
Dressers with one diamond mounted in one shank.

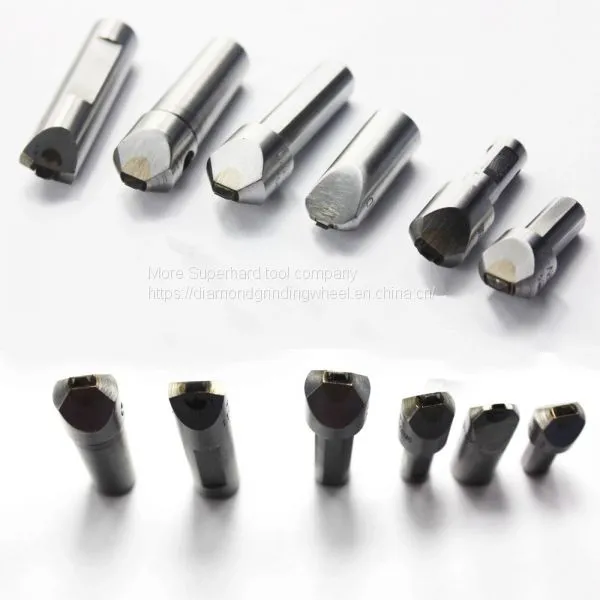

2) Forming Dresser
Dressers with a single diamond that has been polished to the required shape and dimensions
mounted in one shank.
- Chisel Type: Chisel edge tools for dressing concave and convex radii on all wheel sizes;
for contour dressing on centerless grinders; and for angle head dressing
- Cone Type: The cone type dresser contains an elongated diamond cut to a conical point.
The included angle of the cone should be as large as possible for maximum
point life.
3. Multipoint Dresser
Dressers with multiple diamonds mounted in one shank.
Type |
Size of Diamonds |
Application |
Characteriste |
|
Bearing Type |
Big Grit(1/20-1/2 ct) |
Cylindrical Grinding Inner surface Grinding
|
1.Do not need a repair |
|
Blade Type |
Small Grit(1/40 - 1/50 ct) |
Straight line or Step Wheel |
1.Do not need a repair 2.Due to the less wear-out, 3.More than 2 grits need to be contacted |
