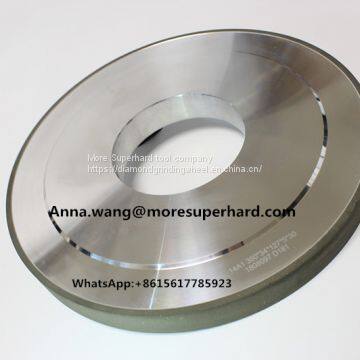

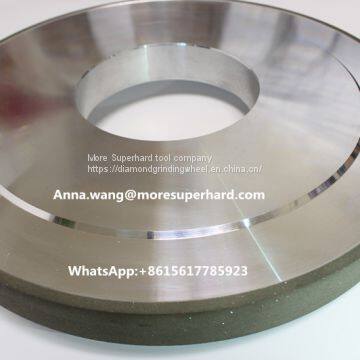

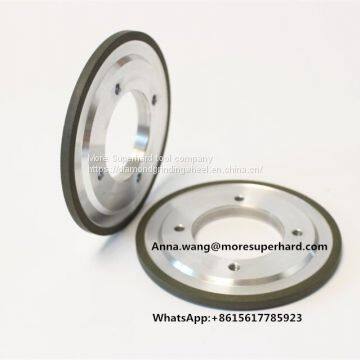

14A1 Diamond grinding wheel be used for machining of conical,cylindrical and flat surface,cylindrical and conical aperatures.
If you need any products, do not hesitate to contact
Skype:Annawng
WhatsApp:+8615617785923
@moresuperhard.com
The 14A1 grinding wheel also used for sharpening and finishing of hard alloyed tools.
Type |
D(mm) |
T(mm) |
H(mm) |
W(mm) |
X(mm) |
|
|
150 |
24 |
20 31.75 |
4 6 |
2 3 |
200 |
20 |
20 31.75 |
6 |
3 6 |
|
250 |
20 |
20 31.75 |
8 |
6 8 |
|
|
80 |
6 |
20 25 31.75 40 |
10 |
6 |
100 |
8 |
20 31.75 |
10 |
6 |
|
150 |
8 |
20 31.75 |
10 |
6 |
|
Type |
D(mm) |
T(mm) |
H(mm) |
X(mm) |
U (mm) |
|
100 |
6 |
20 31.75 |
6 |
1 4 |
125 |
8 |
20 31.75 |
6 8 |
4 1.5 |
|
150 |
6 8 |
20 31.75 |
6 8 |
4 2 |
|
Other sizes can be customized. | |||||
More SuperHard resin diamond wheels are widely used for grinding carbide HVOF coated. The diameter from 25mm (1") to 915mm (36")
More SuperHard services include fluting, gashing clear edge and relief angle, OD grinding of the tungsten carbide, HSS, milling cutter, reamer and drill, etc
* Vitrified Diamond and CBN Wheel
* Metal bonded Diamond and CBN Wheel
* Resin Diamond and CBN Wheel
* Electroplated Diamond and CBN Wheel
* Vacuum Brazed Diamond Tools
* Diamond Dicing Blade, Diamond Cutting Wheel
