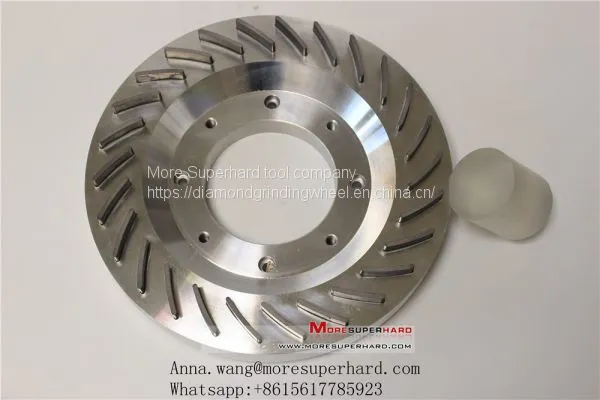

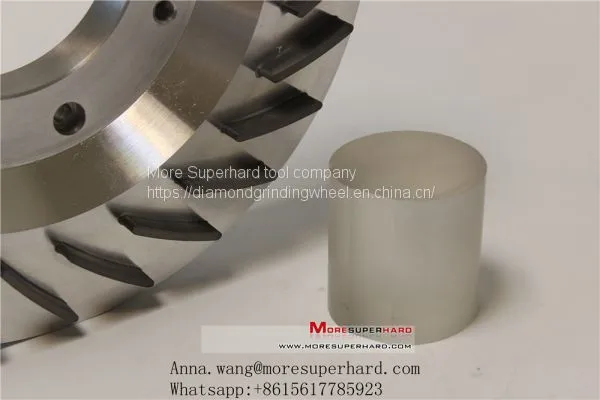

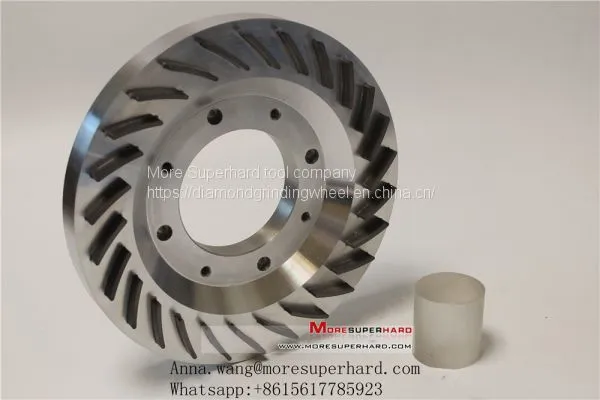

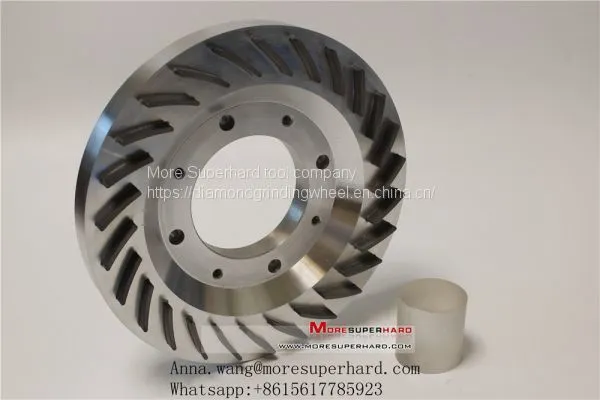

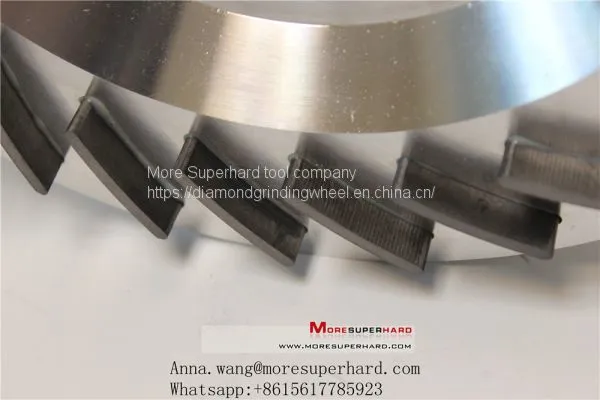

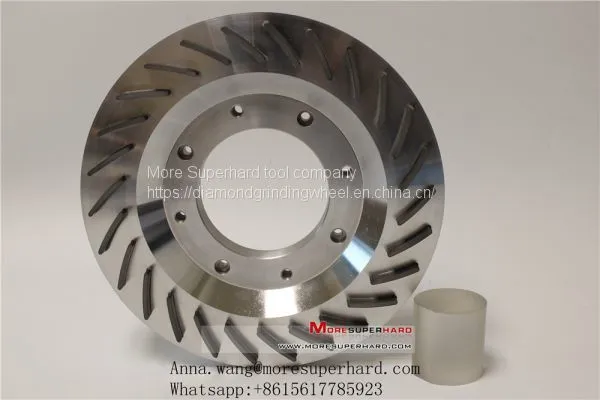

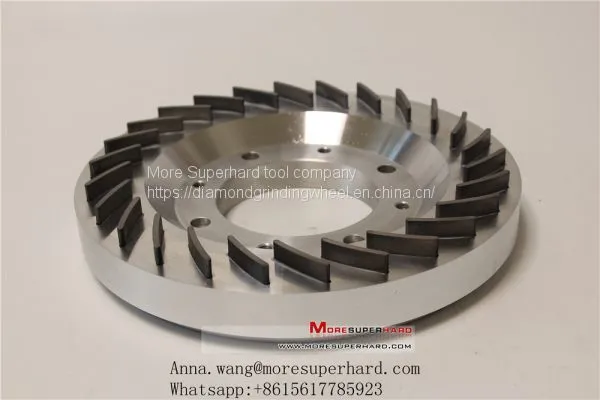

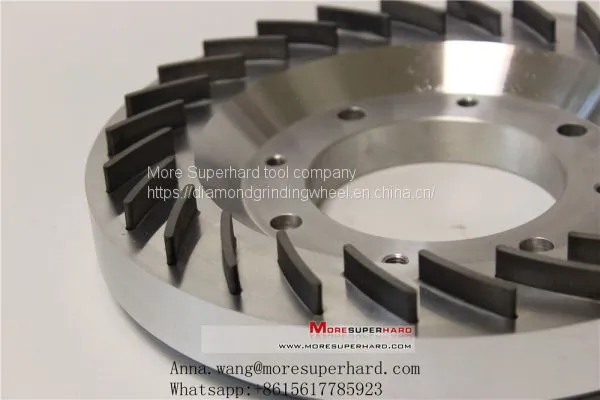

Back side grinding wheel,Diamond Wheel for Back-side-grinding Of Silicon Wafer,grinding back wheel
- 1000 Piece / Pieces per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 7 days
- Diamond Dresser tools,Single-point Dresser tools,Forming Dresser tools,Chisel Type dresser tool
- Diamond Dresser tools,Single-point Dresser tools,Forming Dresser tools,Chisel Type dresser tool
- Electroplated Diamond parallel slant grinding wheels
- Solid Cbn Insert Price,CBN Turning Inserts,Full Solid CBN Insert for Processing Grey Cast
- Resin Bond Diamond Cup Squaring Wheel,Resin Bond Diamond Dry-Squaring Wheel Manufacturer
- CBN Brazing Inserts BNK30 Brazing CBN/PCBN Turning Inserts for Continuous Cutting Turning Brake Disc
Product Details
Brand Name: | MORE SUPER HARD | Model Number: | 1A1 | Size: | all |
Type: | Abrasive Disc |
Product Description

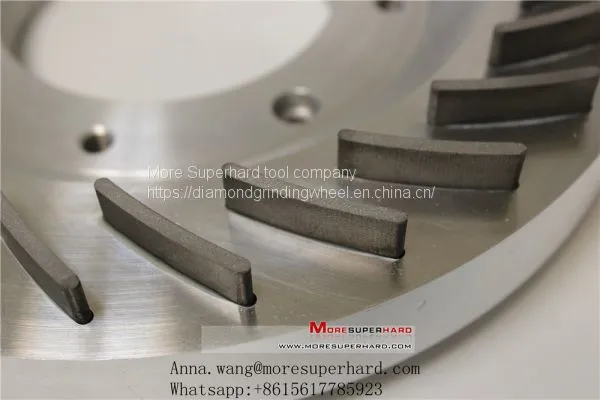

Silicon wafer back grinding wheels are mainly used for the thinning and fine grinding of the silicon wafer.
Coolant: Oil, emulsion
workpiece processed: silicon wafer of discrete devices, integrated chips (IC) and virgin,ATM, Melchiorre, Peter Wolters, Diskus, Viotto, Wendt
Material of workpiece: monocrystalline silicon and some other semiconductor materials.
Grinders: SHUWA SGM-6301, NTS Nanosurface-180G, NTS Nanosurface 250/NC-VDM
If you need any products, do not hesitate to contact
Skype:Annawng
WhatsApp:+8615617785923
@moresuperhard.com
In the middle of the pre-production process, thick silicon wafer can reduce damage; before assembly, silicon wafer is thinned, which is conducive to heat dissipation; reduce package volume; improve mechanical strength (softer after thinning, softer after thinning, minus Small stress); improve electrical performance (short connection); reduce the workload of dicing wafer
Vitrified bond suitable for silicon wafer back grinding wheel
Vitrified bond diamond grinding wheel bond agent has higher strength; good wear resistance, sharp cutting Grinding efficiency is high, and easy to trim; generally suitable for silicon wafers, such as rough grinding, semi-finishing grinding, etc.
The diamond grinding wheel has good self-sharpening performance and is not easy to clog; the grinding efficiency is high, the grinding force is small, and the grinding temperature is low The bonding agent itself has good elasticity and polishing performance; the workpiece has high surface finish and good surface quality; it is suitable for fine grinding and polishing of silicon wafers.
The Specification Of Diamond Back Grinding Wheels:
Model | Diameter (Mm) | Thickness (Mm) | Hole (Mm) |
6A2 | 175 | 30, 35 | 76 |
200 | 35 | 76 | |
350 | 45 | 127 | |
6A2T | 195 | 22.5, 25 | 170 |
280 | 30 | 228.6 | |
6A2T(Three Ellipses) | 350 | 35 | 235 |
209 | 22.5 | 158 | |
Other Size Can Ba Made According To Customers Requirements Email: @Moresuperhard.Com |
silicon wafer back grinding wheel features:
1, surface quality: require grinding lines evenly, without chipping, debris, scribe, etc.;
2, processing accuracy: TTV <5 μm etc. (Total thinning veracity);
3, processing quality: surface roughness: <10 nm; damage layer thickness: <10 μm;
Application of back grinding wheelThe grinding wheels for LED substrate are mainly used for back thinning of sapphire epitaxial wafer, silicon wafer, gallium arsenide and GaN wafer.
Workpiece processed: sapphire epitaxial wafer, silicon wafer, gallium arsenide and GaN wafer.
Material of workpiece: synthetic sapphire, single crystal silicon, gallium arsenide and GaN materials.
The LED substrate thinning grinding wheel is mainly used for the back surface thinning of the sapphire epitaxial wafer, silicon wafer, gallium arsenide and gallium nitride wafer in the LED industry. The grinding LED substrate grinding wheel developed by our company has superior grinding performance and high cost performance. It can be used stably in European, American, Japanese and domestic grinding machines, and can replace imported products.
