PCD Bearing Parts Grinding Of Vitrified Diamond Internal Grinding Wheel,Internal Grinding Wheel
- 1000 Piece / Pieces per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 7 days
- Back side grinding wheel,Diamond Wheel for Back-side-grinding Of Silicon Wafer,grinding back wheel
- Diamond Dresser tools,Single-point Dresser tools,Forming Dresser tools,Chisel Type dresser tool
- Diamond Dresser tools,Single-point Dresser tools,Forming Dresser tools,Chisel Type dresser tool
- Electroplated Diamond parallel slant grinding wheels
- Solid Cbn Insert Price,CBN Turning Inserts,Full Solid CBN Insert for Processing Grey Cast
- Resin Bond Diamond Cup Squaring Wheel,Resin Bond Diamond Dry-Squaring Wheel Manufacturer
Product Details
Brand Name: | MORE SUPER HARD | Model Number: | 1A1 | Size: | all |
Type: | Abrasive Disc |
Product Description

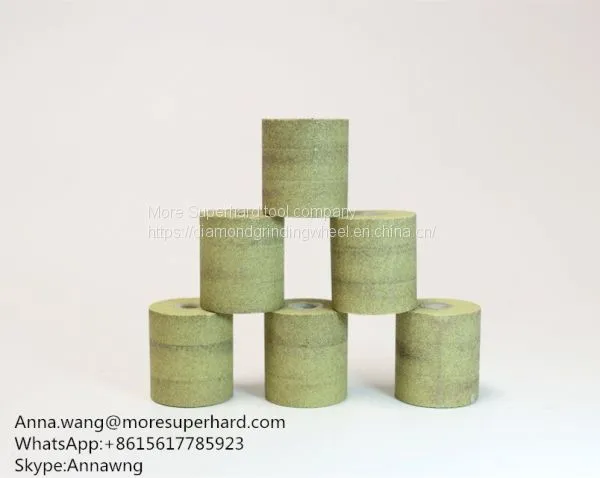

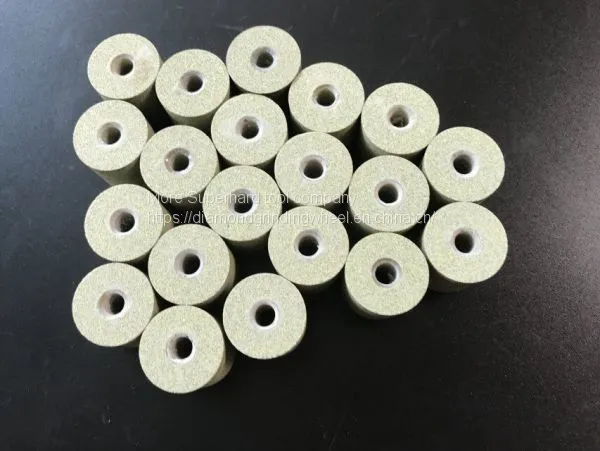

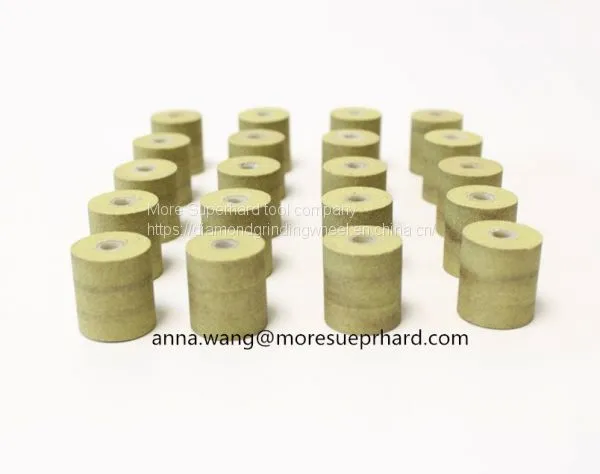

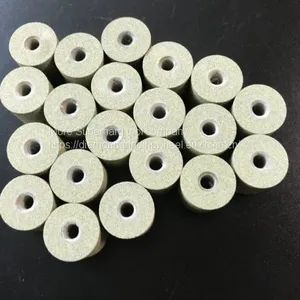

CBN Grinding Wheel For Internal Grinding
Model: 1A8, 1A1W, 1A1
Bonded: Vitrified bond (ceramic bond)
Abrasive: CBN and Diamond
Shape: cylindrical
Suitable: inner surface
Application: internal grinding of of hydraulic tappets, universal joint, stator and rotor , etc
If you need any products, do not hesitate to contact
Skype:Annawng
WhatsApp:+8615617785923
@moresuperhard.com
Internal grinding Wheels for pump nozzle
Shape:1A8W.
Diameter:D4-30mm.
Bond:Vitrified
Abrasives:CBN
Machines:UVA Nomyline.
Aplication:Hole grinding of pump nozles.
Internal grinding Wheels for universal Joint
Shape:1A8 1A8W
Diameter:6 30mm.
Bond:Vitrified.
Abrasives:CBN.
Grinders:EX-CELL-O XG692 XG662、MECCANORA.
Applications of internal grinding wheel
Mainly in the filed of Automobile,such as CV joint,Starlike Sleeve,Inner and out race,Case etc.
Features of internal grinding wheel
Good sharpening and shape holding,higher removal rate and ficiece 6 races ground by only 60-80 seconds the qainy has reached to that imported.
Specification Of CBN Grinding Wheel For Internal Grinding
Models & Profile Diagram | Details Size | |
1A8 D * T * H (mm) | ||
D | 4mm - 45mm | |
H | 1.5mm - 30mm | |
T | 5mm - 50mm | |
1A1W D * T * H * L * M (mm) | ||
D | 7.5mm - 50mm | |
H | 4mm - 45mm | |
T | 15mm - 50mm | |
1A1 D * T * H * X (mm) | ||
D | 18mm - 50mm | |
H | 10mm - 40mm | |
T | 15mm - 50mm |
The two types of vit CBN grinding wheel for inner grinding: ID Wheel with Shank, ID Wheel without Shank
Hydraulic Industry. 1A1W Vit CBN Internal Grinding Wheel
Cylinder Sleeve Grinding Of Vitrified CBN Inner Wheel
CVJ Ball Cage Grinding Of Vit CBN Grinding Wheel For Inner Grinding
Rotary Vane Compressor Stator Grinding Of CBN Grinding Wheel For Inner Grinding
We can also produce Vitrified Diamond Inner Wheel, Resin Diamond Internal Wheel and Metal Diamond Internal Wheel (1A1, 1A8, 1A1W, 1B1)
PCD Bearing Parts Grinding Of Vitrified Diamond Internal Grinding Wheel
