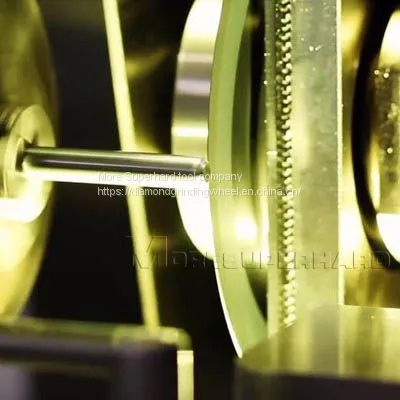

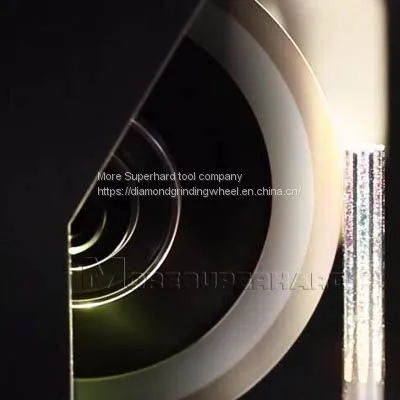

Diamond & CBN Grinding Wheels For Optical Profile Grinding Wheels
Optical Profile grinding is employed to grind various precision moulds such as die & punch for press which have complicated forms of irregular lines and curves, forming cutting tools, cutting tools, high precision plate gauge, electrode for electric discharge grinding and formed precision parts such as template. Structurally optical profile grinding wheels are used in dry, which is a big feature and handled by manual system as well as Numerical Control full automatic system. Lately NC machines are widely employed in various industries and increasing rapidly. Rigidity, horsepower and machining accuracy of latest machines have been much improved where optical profile grinding wheels are required more under this condition to generate high precision machining.
If you need any products, do not hesitate to contact
Skype:Annawng
WhatsApp:+8615617785923
@moresuperhard.com
The abrasive grits of profile grinding wheels
Diamond |
For grinding hard materials such as tungsten carbide, cermet, ceramics. |
CBN |
For grinding ferrous materials such as SKH, SKD, SKS, SUS & Etc |
Concentration （100, 125, 150） |
In general we recommend you to choose concentration at 100 or more. |
Nose angle and nose strength of profile grinding wheels
Nose angle is available from 5°. Depending on the grit size of diamond or CBN employed, nose width and nose radius change as below. Nose strength is high at wider angle (i.e. an obtuse angle), and is strong against the load given vertically, while it is weak against parallel load.
Grit Size |
140 |
170 |
200 |
230 |
270 |
325 |
360 |
400 |
600 |
800 |
1000 |
1500 |
Nose width |
0.2 |
0.18 |
0.16 |
0.15 |
0.14 |
0.12 |
0.11 |
0.10 |
0.08 |
0.08 |
0.06 |
0.03 |
Nose radius |
0.09 ~ 10 |
0.08 ~ 9 |
0.07 ~ 8 |
0.07 ~ 8 |
0.06 ~ 7 |
0.05 ~ 6 |
0.05 ~ 6 |
0.04 ~ 5 |
0.03 ~ 4 |
0.03 ~ 4 |
0.02 ~ 3 |
0.015 ~ 2 |
Finished Surface
Depending on the grinding conditions, surface finished differs at great deal.
For instance, when you set cross feed at smaller number, particularly good surface can be achieved.
（＃200MVD=0.5S/1mm/min、automatic feeding）
There are several wheels using abrasives of rough sizes. We recommend you to select a wheel depending on grinding efficiency, precision level achieved, and appearance.
Grit size |
140 |
170 |
200 |
230 |
270 |
325 |
360 |
400 |
600 |
800 |
1000 |
1500 |
||
Surface roughness S |
Metal bond |
4 |
3.3 |
2.8 |
2.3 |
2 |
1.7 |
1.4 |
1 |
0.8 |
0.6 |
0.4 |
0.2 |
|
Resin bond |
3.3 |
2.8 |
2.4 |
2 |
1.6 |
1.4 |
1 |
0.8 |
0.6 |
0.4 |
0.3 |
0.2 |
||
Surface finished |
Rough |
Middle |
Precision |
Ultra precision |
||||||||||
Workpiece=V type peripheral speed=1500m/min stroke=38 strokes/min cross feed=2.4mm/min |
||||||||||||||
* Special size can be customized on request.
A large range of high quality diamond/CBN optical profile grinding wheels can be manufactured for customers specific applications. These OPG Wheels are manufactured on a relatively short lead time.
Type 3A1 OPG Wheels | ||
CODE |
DESCRIPTION |
|
ROP |
Resinoid OPG Wheels |
|
D |
U |
X |
125 |
1.5 |
6.0 |
125 |
2.5 |
6.0 |
125 |
3.0 |
3.2/6.0 |
125 |
5.0 |
3.2/6.0 |
150 |
1.5 |
6.0 |
150 |
2.5 |
6.0 |
150 |
3.0 |
3.2/6.0 |
150 |
5.0 |
3.2/6.0 |
Please state part number when ordering. When ordering any of these items please advise us of the bore size ('H') you require. All measurements in tables are in mm.
