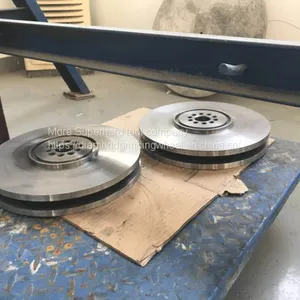

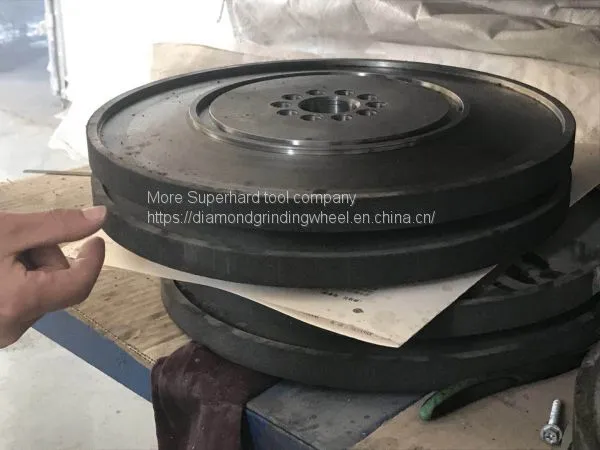

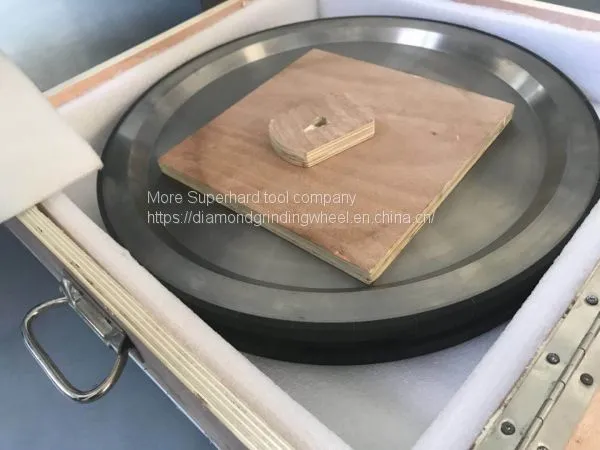

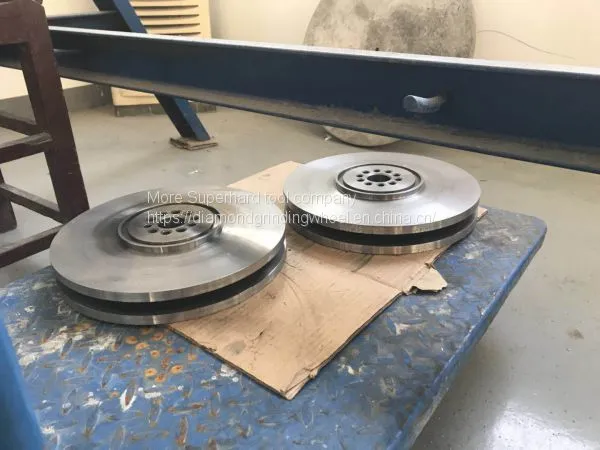

Help CenterVitrified CBN Grinding Wheel for Camshaft, Crankshaft, Bear Shaft
Related Products
-
Resin Bond Diamond Grinding Discs, Diamond Lapping DiscsUS$ 0.1 - 0.5MOQ: 1 Piece -
Diamond Grinding Wheel for Chainsaw Sharpening,CBN Chainsaw Sharpening WheelsUS$ 0.1 - 0.5MOQ: 1 Piece
-
2A2T Peripheral Diamond Grinding Wheel for PCD&CBN Cutting ToolsUS$ 0.1 - 0.5MOQ: 1 Piece
-
PCD Super-finish Grinding,vitrified Diamond Grinding WheelUS$ 0.1 - 0.5MOQ: 1 Piece
-
PCD Finish Grinding,pcd Grind Wheel Vitrified BondedUS$ 0.1 - 0.5MOQ: 1 Piece
PRODUCT DETAILS
Description:
Vitrified bond CBN Grinding Wheel is suitable for precise and high-speed grinding the camshaft, gear shaft and crankpin, main journal, flange neck, thrust face and end face.
Materials to grind:
Cast iron : Chilled cast iron, nodular cast iron, grey cast iron, alloy cast iron and etc
Steel: 20Cr, GCr15, CF53, 45# steel, 55# steel,80B high carbon steel and etc
Advantages:
1.High precision & good surface quality
2.High adhesion strength
3.Excellent performance
4.Reduced grinding forces
5.Easy dressing
DRAWING&SPECIFICATION
Models |
Profile Sketches |
Spec. |
|
|
1A1 |
|
1A1-D-T-H-X |
|
D |
200-750 |
||
T |
15-70 |
||
X |
3-10 |
||
|
3A1 |
|
3A1-D*T*H*X |
|
D |
300-950 |
||
T |
5-10 |
||
X |
10-500 |
||
Suitable machine:LANDIS: LT1, LT2SCHAUDT: CF41, CF61, ZEUSMX, ZXNAXOS: NAXOS-UNION, P310*1250, Gf70JUNKER: JUCAM5002/10, JUCAM500, JUCRANK5000,6000TOYODA: GCS63, GL5P-63, GL6P-100, GCH120B, GC32M-63, GCH63B, GL63M-T
If you need any products, do not hesitate to contact
Skype:Annawng
WhatsApp:+8615617785923
@moresuperhard.com
