Help Center200W Wide Input AC/DC Switching Power Supply
Related Products
-
50W Wide Input AC/DC Switching Power SupplyUS$ 0.17MOQ: 2147483647 Pieces -
35-38.4W Wide Input AC/DC Switching Power SupplyUS$ 0.17MOQ: 2147483647 Pieces
-
100W Wide Input AC/DC Switching Power SupplyUS$ 0.17MOQ: 2147483647 Pieces
-
300-312W Wide Input AC/DC Switching Power SupplyUS$ 0.17MOQ: 2147483647 Pieces
-
25W-30W Wide Input AC/DC Converter Power Supply Pcb MountUS$ 0.17MOQ: 2147483647 Pieces
Part Number |
Input |
Output |
Efficiency @25℃, （Typ）% |
|||||
Volatge（VAC) |
Voltage（VDC) |
Pre-set voltage @25℃(V) |
Rated current（A） |
Current range(A) |
Rated power(W) |
|||
Rated |
Range values |
|||||||
TPC/LR-150-12S |
220 |
90-264 |
12 |
12.00-12.10 |
12.5 |
0-12.5 |
150 |
85 |
TPC/LR-150-15S |
220 |
90-264 |
15 |
15.00-15.10 |
10 |
0-10 |
150 |
87 |
TPC/LR-150-24S |
220 |
90-264 |
24 |
24.00-24.10 |
6.25 |
0-6.25 |
150 |
89 |
TPC/LR-150-36S |
220 |
90-264 |
36 |
36.00-36.10 |
4.17 |
0-4.17 |
150 |
89 |
TPC/LR-150-48S |
220 |
90-264 |
48 |
48.00-48.10 |
3.125 |
0-3.125 |
150 |
90 |

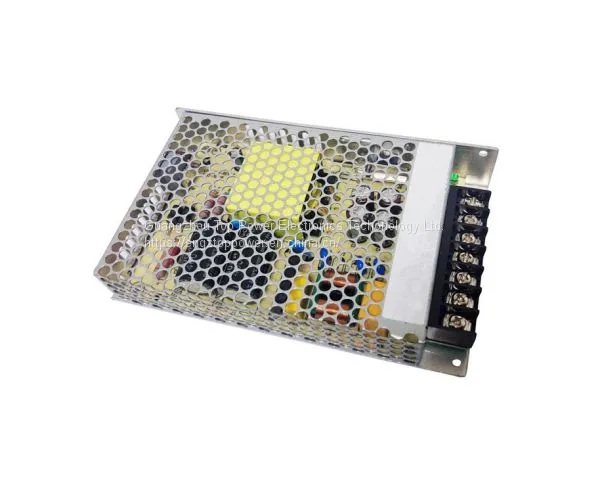

The rated output power of TPC/LR-150-XS series is 150W，input voltage range：90-264VAC,
output voltage : 12V,15V,24V,36V,48V,High reliability, precision,effificency , ultra-small size, no external heat sink required, stable output voltage and etc, with short circuit, over-load,over-voltage protection, Widely used in telecommunications, industrial control, instrument, data acquisition, signal control , New Energy, Security,and other electronic systems.
we,TOPPOWER can produce:
0.1W-40W DC-DC converters,3W-30W AC-DC converters,(SIP/DIP/SMD)
15W-1200W Enclosed /Open frame/DIN RAIL type AC-DC Switching Power supply,
TOPPOWER quality : ISO9001:2015, IATF16949:2016
Board Mount Encapsulated power supply
