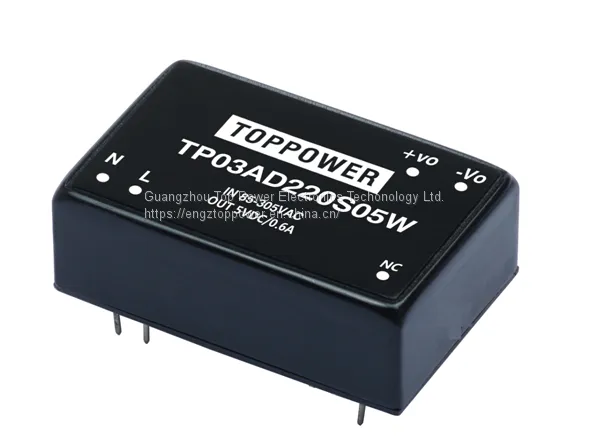

3W, 5W 3KVAC Isolation Wide Input AC/DC Converters Board Mount Encapsulated power supply
TP03(05)AD series is 3W ,5W with wide input voltage range, for both AC input and DC input application, come with Low power consumption low Leakage current @0.1mA ,miniature size:35*25.4*18mm ,and good EMC performance, can meet the EMC and safety specifications: IEC / EN61000-4 CISPR32 / EN55032, |
UL62368, EN62368, IEC62368 and other related standards. This series of power supplies have important applications in many fields such as LED, street light control, industry, office and civil industries ,etc.***please refer to the application circuit when the parts is applied in the environment with severe electromagnetic compatibility.
Universal input voltage range |
Low Ripple &Noise |
Wide input voltage: 4:1 |
|
Low power consumption
|
High efficiency, high power density, miniature |
Over load/short circuit protection |
Both for AC and DC input voltage |
RoHS compliant |
Operating temperature: -40℃ to 70℃ |
SELECTION GUIDE | |||||
Part Number |
Input |
Output |
Efficiency (Typ. ) % |
||
Voltage VAC |
Voltage VDC |
Voltage（VDC) |
Current（A） |
||
TP03AD220S03W |
85-305 |
120-430 |
3.3 |
0.70 |
66 |
TP03AD220S05W |
85-305 |
120-430 |
5 |
0.60 |
76 |
TP03AD220S09W |
85-305 |
120-430 |
9 |
0.33 |
78 |
TP03AD220S12W |
85-305 |
120-430 |
12 |
0.25 |
79 |
TP03AD220S15W |
85-305 |
120-430 |
15 |
0.20 |
80 |
TP03AD220S24W |
85-305 |
120-430 |
24 |
0.12 |
81 |
TP05AD220S03W |
85-305 |
120-430 |
3.3 |
1.00 |
68 |
TP05AD220S05W |
85-305 |
120-430 |
5 |
1.00 |
78 |
TP05AD220S09W |
85-305 |
120-430 |
9 |
0.56 |
79 |
TP05AD220S12W |
85-305 |
120-430 |
12 |
0.42 |
80 |
TP05AD220S15W |
85-305 |
120-430 |
15 |
0.33 |
81 |
TP05AD220S24W |
85-305 |
120-430 |
24 |
0.21 |
81 |
All specifications typical at TA=25°C, nominal input voltage and rated output current unless otherwise specified.
