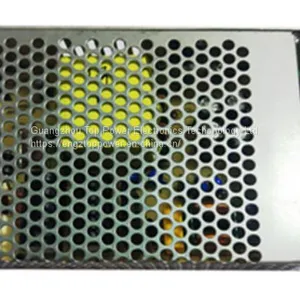

Help Center100W Wide Input AC/DC Switching Power Supply
Related Products
-
300-312W Wide Input AC/DC Switching Power SupplyUS$ 0.19MOQ: 2147483647 Pieces -
25W-30W Wide Input AC/DC Converter Power Supply Pcb MountUS$ 0.19MOQ: 2147483647 Pieces
-
50W 1.5KVAC Isolation Wide Input AC/DC ConvertersUS$ 0.19MOQ: 2147483647 Pieces
-
3W, 5W 3KVAC Isolation Wide Input AC/DC ConvertersUS$ 0.19MOQ: 2147483647 Pieces
-
10W 3KVAC Isolation Wide Input AC/DC ConvertersUS$ 0.19MOQ: 2147483647 Pieces

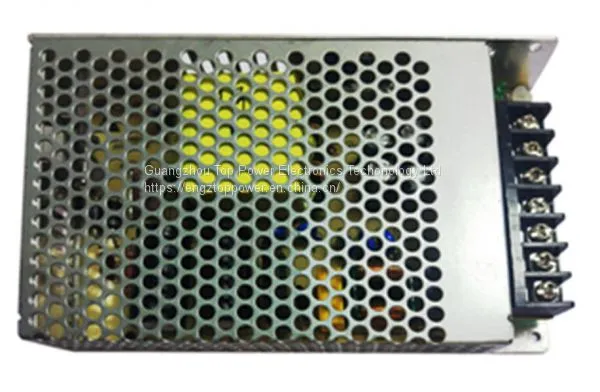

The rated output power of TPC/LPD-100-XS series is 90-110.4W，input voltage range：90-264VAC,
output voltage : 5V,12V,15V,24V,28V,36V,48V,High reliability, precision,effificency , ultra-small size, no external heat sink required, with short circuit, over-load,over-voltage protection, Widely used in telecommunications, industrial control, instrument, data acquisition, signal control , New Energy, Security,and other electronic systems.
Universal AC input ：90VAC-264VAC |
100% full load burn-in test |
short circuit, over-load,over-voltage protection
|
|
Operating temperature：-30℃~70℃
|
RoHS complaint |
Low standby power consumption
|
|
All using 105℃ long-life electrolytic capacitors
|
High reliability,effificency ,long life |
Can bear 300VAC for 5s, 1U low profile |
SELECTION GUIDE | ||||||||
Part Number |
Input |
Output |
Efficiency @25℃, （Typ）% |
|||||
Volatge（VAC) |
Voltage（VDC) |
Pre-set voltage @25℃(V) |
Rated current（A） |
Current range(A) |
Rated power(W) |
|||
Rated |
Range values |
|||||||
TPC/LPD-100-5S |
220 |
90-264 |
5 |
5.00-5.10 |
18.0 |
0-18 |
90 |
86 |
TPC/LPD-100-12S |
220 |
90-264 |
12 |
12.00-12.20 |
8.5 |
0-8.5 |
102 |
87 |
TPC/LPD-100-15S |
220 |
90-264 |
15 |
15.00-15.20 |
7.0 |
0-7.0 |
105 |
88 |
TPC/LPD-100-24S |
220 |
90-264 |
24 |
24.00-24.20 |
4.5 |
0-4.5 |
108 |
90 |
TPC/LPD-100-28S |
220 |
90-264 |
28 |
28.00-28.20 |
3.6 |
0-3.6 |
100.8 |
90 |
TPC/LPD-100-36S |
220 |
90-264 |
36 |
36.00-36.20 |
3.0 |
0-3.0 |
108 |
90.5 |
TPC/LPD-100-48S |
220 |
90-264 |
48 |
48.00-48.20 |
2.3 |
0-2.3 |
110.4 |
90.5 |
All specifications typical at TA=25°C, nominal input voltage and rated output current unless otherwise specified.
