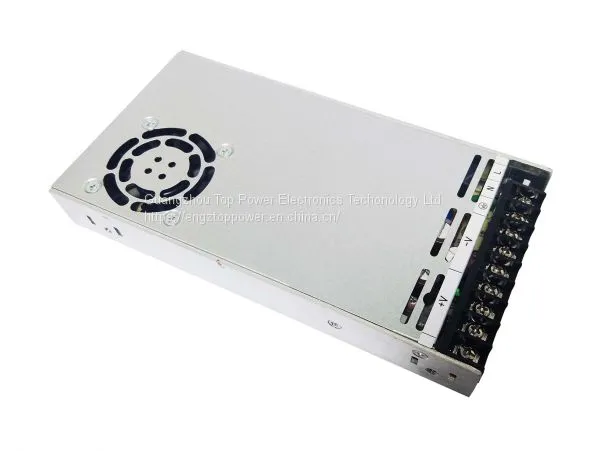

The rated output power of TPC/GKF-320-XS series is 300~312W，input voltage range：90-264VAC,
output voltage : 12V,24V. High reliability, precision,effificency , ultra-small size, no external heat sink required, stable output voltage and etc, with short circuit, over-load,over-Power protection,
Widely used in telecommunications, industrial control, instrument, data acquisition,
signal control , New Energy, Security,DC motor,CNC system and other electronic systems.
we,TOPPOWER can produce:
0.1W-40W DC-DC converters,3W-30W AC-DC converters,(SIP/DIP/SMD)
15W-1200W Enclosed /Open frame/DIN RAIL type AC-DC Switching Power supply,
TOPPOWER quality : ISO9001:2015, IATF16949:2016
|
AC input 90-264 VAC
|
Built-in cooling fan speed control
|
short circuit, over-load protection
|
|
Operating temperature：-20℃~65℃
|
RoHS complaint |
Withstand 300Vac surge input for 5 sec |
|
Altitude up to 5000m
|
High efficiency, long life and high reliability
|
Built-in active PFC,PF>0.95
|
SELECTION GUIDE | ||||||||
Part Number |
Input |
Output |
Efficiency @25℃, （Typ）% |
|||||
Volatge（VAC) |
Voltage（VDC) |
Pre-set voltage @25℃(V) |
Rated current（A） |
Current range(A) |
Rated power(W) |
|||
Rated |
Range |
|||||||
TPC/GKF-320-12S |
220 |
90-264 |
12 |
12.00-12.10 |
25 |
0-25 |
300 |
≥84.5 |
TPC/GKF-320-24S |
220 |
90-264 |
24 |
24.00-24.10 |
13 |
0-13 |
312 |
≥87 |
All specifications typical at TA=25°C, nominal input voltage and rated output current unless otherwise specified.
OUTPUT CHARACTERISTICS | ||
Conditions |
Conditions |
Parameter |
Ripple and noise,Ta is ambient 0＜Ta≤65℃ |
12V output voltage |
≤200mVp-p |
Ripple and noise,Ta is ambient -20＜Ta≤0℃ |
24V output voltage |
≤150mVp-p |
Dynamic load characterstics, -20＜Ta≤65℃ |
12V output voltage |
2.5A-25A：±600mV 2.5A-12.5A：±300mV 12.5A-25A：±300mV |
24V output voltage |
1.3A-13A：：： |
|
Output adjustment range @25℃ |
12V output voltage |
10V~15V |
24V output voltage |
20V-27V |
|
Voltage regulation accuracy@-20~65℃ |
±2%@12V(11.76-12.24) / ±1%@24V(23.76-24.24) |
|
Line regulation@-20~65℃ |
±0.5% |
|
Load regulation@-20~65℃ |
±2%@12V(11.76-12.24) / ±1%@24V(23.76-24.24) |
|
Temp. coefficient@-20~65℃ |
±0.03%/℃ |
|
Set-up time@25℃ |
≤2.0S ( 230Vac input, full load ) |
|
≤4.0S (120Vac input, full load ) | ||
Hold-up time@25℃ |
≥10mS( 230Vac/115Vac input, full load ) |
|
Overshoot&Undershoot@-20~65℃ |
5.0% |
|
