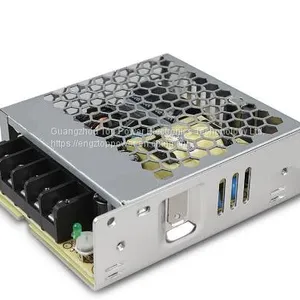

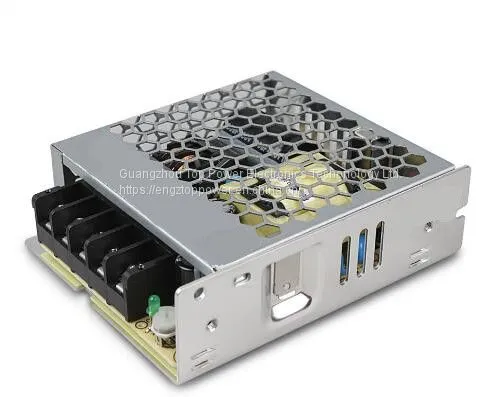

Help Center50W Wide Input AC/DC Switching Power Supply
Related Products
-
35-38.4W Wide Input AC/DC Switching Power SupplyUS$ 0.19MOQ: 2147483647 Pieces -
100W Wide Input AC/DC Switching Power SupplyUS$ 0.19MOQ: 2147483647 Pieces
-
300-312W Wide Input AC/DC Switching Power SupplyUS$ 0.19MOQ: 2147483647 Pieces
-
25W-30W Wide Input AC/DC Converter Power Supply Pcb MountUS$ 0.19MOQ: 2147483647 Pieces
-
50W 1.5KVAC Isolation Wide Input AC/DC ConvertersUS$ 0.19MOQ: 2147483647 Pieces
AC input ：90VAC-264VAC |
100% full load burn-in test |
short circuit, overload,over-voltage protection
|
|
Operating temperature：-30℃~70℃
|
RoHS complaint |
Low standby power consumption
|
|
All using 105℃ long-life electrolytic capacitors
|
High reliability,effificency |
Full compliance with safety regulation,EMC design |
SELECTION GUIDE | ||||||||
Part Number |
Input |
Output |
Efficiency @25℃, （Typ）% |
|||||
Volatge（VAC) |
Voltage（VDC) |
Pre-set voltage @25℃(V) |
Rated current（A） |
Current range(A) |
Rated power(W) |
|||
Rated |
Range values |
|||||||
TPC/LR-50-5S |
220 |
90-264 |
5 |
5.00-5.05 |
10.0 |
0-10.0 |
50.0 |
83 |
TPC/LR-50-12S |
220 |
90-264 |
12 |
12.00-12.10 |
4.20 |
0-4.20 |
50.4 |
86 |
TPC/LR-50-15S |
220 |
90-264 |
15 |
15.00-15.10 |
3.40 |
0-3.40 |
51.0 |
88 |
TPC/LR-50-24S |
220 |
90-264 |
24 |
24.00-24.10 |
2.20 |
0-2.20 |
52.8 |
88 |
TPC/LR-50-36S |
220 |
90-264 |
36 |
36.00-36.10 |
1.45 |
0-1.45 |
52.2 |
89 |
TPC/LR-50-48S |
220 |
90-264 |
48 |
48.00-48.10 |
1.10 |
0-1.10 |
52.8 |
90 |
The rated output power of TPC/LR-50-XS series is 50-52.8W，input voltage range：90-264VAC, output voltage : 5V,12V,15V,24V,36V,48V,High reliability, precision,effificency , ultra-small size, no external heat sink required, stable output voltage and etc, with over current protection, EMI filter circuit, the rectifier filter circuit, 3000V isolation voltage, short circuit, overload, internal thermal protection, Widely used in telecommunications, industrial control, instrument, data acquisition, signal control , New Energy, Security,and other electronic systems.
we,TOPPOWER can produce:
0.1W-40W DC-DC converters,3W-30W AC-DC converters,(SIP/DIP/SMD)
15W-1200W Enclosed /Open frame/DIN RAIL type AC-DC Switching Power supply,
TOPPOWER quality : ISO9001:2015, IATF16949:2016
