Home > Electrical & Electronics > Electric Motor > DC Motor > 14mm 2.5V / 6V / 12V Metal Gear-box Motor DC Gear Motor Low Noise AndHigh Precision Gear GM14-N30VA
14mm 2.5V / 6V / 12V Metal Gear-box Motor DC Gear Motor Low Noise AndHigh Precision Gear GM14-N30VA
US$ 3.7 - 4.2
MOQ: 2000 Pieces
Key Specifications
Get Latest Price
Brand Name:
Hofon
Place of Origin:
China
Model Number:
GM14-N30VA
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
35 days
Related Products
-
14mm 5V / 6V / 12V Metal Gear-box Motor DC Gear Motor Low Noise AndHigh Precision Gear GM14-N20VAUS$ 3.7 - 4.2MOQ: 2000 Pieces -
10mm 3V Plastic Gear-box Motor Low Speed Low Noise and Large Torque for Electronic Lock GM10-M10VAUS$ 2.6 - 3.2MOQ: 2000 Pieces
-
10mm 3V / 2.4V Metal Gear DC Gear Motor GM10-M10VAUS$ 11.6 - 13.1MOQ: 2000 Pieces
-
10mm 3V / 2.4V Metal Gear DC Gear Motor GM10-M20VAUS$ 11.6 - 13.1MOQ: 2000 Pieces
-
High Precision Gear 5V 6V 12V Small High Torque DC Motor GM12-N10VAUS$ 3.28 - 3.60MOQ: 2000 Pieces
Brand Name
Hofon
Place of Origin
China
Model Number
GM14-N30VA
Type
Gear Motor
Certification
ROHS
Torque
20000g.cm
Usage
Boat, Car, Electric Bicycle, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Other
Voltage(V)
6.0V Or Customized
Output Power
0.6W
Continuous Current(A)
0.07
Speed(RPM)
30
Commutation
Brush
Detailed Product Description
| Voltage Range: | 2.5V Or Customized | Material: | Metal Gear High Precision Gear |
|---|---|---|---|
| Diameter: | 14mm | No Load Speed: | 100RPM |
| No Load Current: | 80mA | Rated Load Torque: | 90g.cm |
| Rated Load Speed: | 76RPM | Rated Load Current: | 140mA |
| Gear Ratio: | 50:1 |

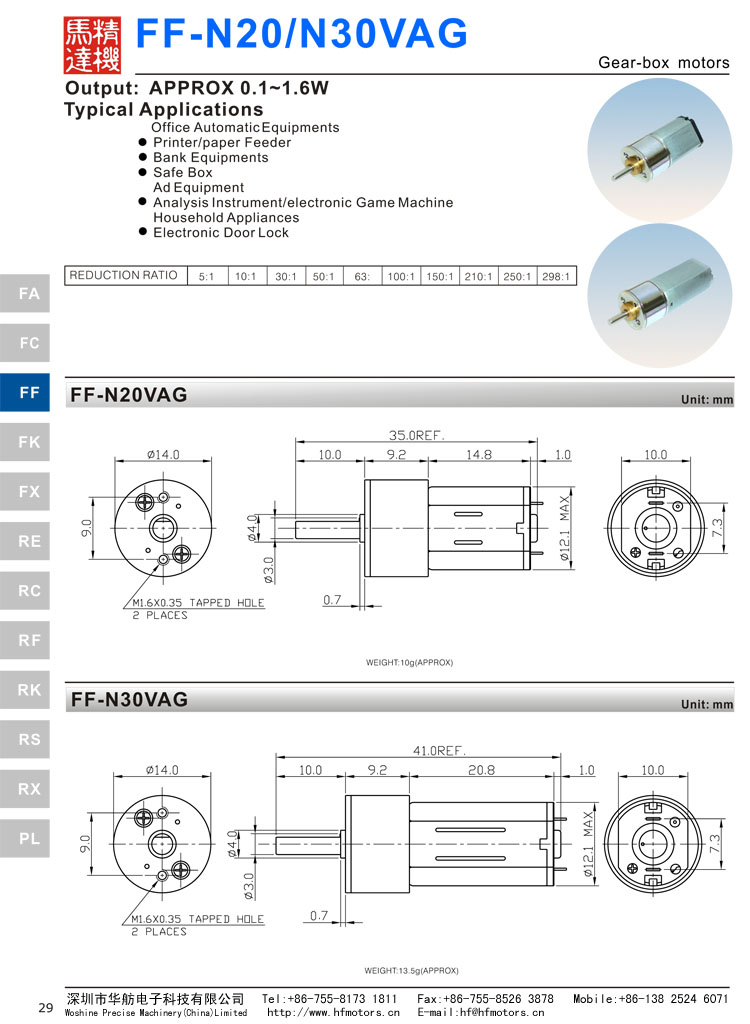

14mm 2.5V / 6V / 12V Metal Gear-box motor DC Gear Motor Low Noise andHigh precision gear
- DC Worm Gear-Box Motor
- Diameter : Φ14.0mm
- Output : APPROX 0.1~1.0W
- Noise Level : Less than 50dB
- Low noise, stable performance, quality assurance
Typical Applications
Fully automatic electronic door lock
- Office Automatic Equipments
- Printer/paper Feeder
- Bank Equipments Safe Box
- Ad Equipment
- Analysis Instrument/electronic
- Game Machine
- Household Appliances
- Electronic Door Lock
Specifications
The following specifications are only representative of one of our models. Other performance parameters can be customized according to customer requirements
| Reduction Ratio | 1 : 3 | 1 : 5 | 1 : 10 | 1 : 30 | 1 : 50 | 1 : 63 | 1 : 100 | 1 : 150 | 1 : 210 | 1 : 250 | 1 : 298 | 1 : 1000 | |
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| r/min | A | r/min | A | mN.m | g.cm | w | mN.m | g.cm | A | ||||
| GM14F-N30VA-09210-50 | 2.0-3.0 | 2.5V | 100 | 0.080 | 76 | 0.140 | 88.2 | 90 | 0.350 | 29.4 | 300 | 0.30 | |

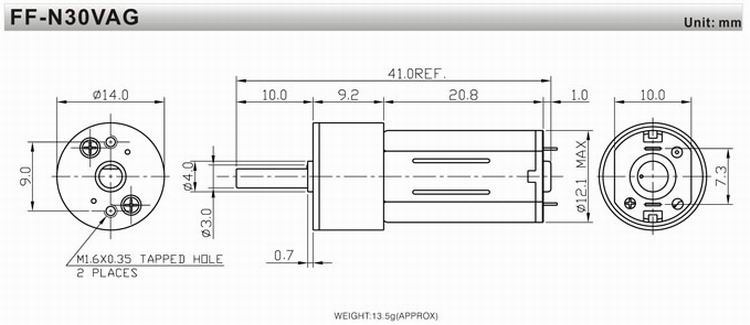

Drawing
Product Details Show
Competitive Advantage
- 16 years experience in manufacturing motor and gearbox motor
- Experienced Staff: average 12 years experience in R&D , ODM & OEM
- International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
- Competitive Price
- High Product Performance: Low noise, High efficiency, Long lifespan
- Prompt Delivery: 20-25 working days after payment
- Quality Approvals
- Small Orders Accepted
- Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc
Quality Cotrol Test
- Reliability Test & Laboratory
- Noise Test
- Water-proof Test
- Life Test
- Impact Test
- Storage Test
- Salt Spray Test
- Environmental Related Substance
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer
Year Established
2002
Overseas Office
Yes
Factory Size
3,000-5,000 square meters
