10mm 3V / 2.4V Metal Gear DC Gear Motor GM10-M10VA
US$ 11.6 - 13.1
MOQ: 2000 Pieces
Key Specifications
Get Latest Price
Brand Name:
Hofon
Place of Origin:
China
Model Number:
GM10F-M10VA-06230-100
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
35 days
Related Products
-
10mm 3V / 2.4V Metal Gear DC Gear Motor GM10-M20VAUS$ 11.6 - 13.1MOQ: 2000 Pieces -
High Precision Gear 5V 6V 12V Small High Torque DC Motor GM12-N10VAUS$ 3.28 - 3.60MOQ: 2000 Pieces
-
High Precision Gear 5V 6V 12V Small High Torque DC Motor / Gear Reduction Motor GM12-N20VAUS$ 3.28 - 3.60MOQ: 2000 Pieces
-
484RPM Rated Load Speed DC Gear Motor 12mm Diameter for Game Machine GM12-N30VAUS$ 3.28 - 3.60MOQ: 2000 Pieces
-
Small DC Gear Motor , Customized Voltage DC Motor Advertisement Equipment Use GM13-030SAUS$ 3.60 - 3.90MOQ: 2000 Pieces
Brand Name
Hofon
Place of Origin
China
Model Number
GM10F-M10VA-06230-100
Type
Gear Motor
Certification
ROHS
Torque
400g.cm
Usage
Boat, Car, Electric Bicycle, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Other
Voltage(V)
4.5V
Output Power
0.2
Continuous Current(A)
0.07
Speed(RPM)
230
Commutation
Brush
Detailed Product Description
| Voltage Range: | 4.5V Or Customized | Material: | Metal Gear High Precision Gear |
|---|---|---|---|
| Diameter: | 10mm | No Load Speed: | 90RPM |
| No Load Current: | 75mA | Rated Load Torque: | 250g.cm |
| Rated Load Speed: | 70RPM | Rated Load Current: | 160mA |
| Gear Ratio: | 250:1 |
10mm 4.5V / 1.5V Metal Gear-box motor DC Gear Motor Low Noise and Large Torque High precision gear
- DC Worm Gear-Box Motor
- Diameter : Φ10.0mm
- Output : APPROX 0.1~1.0W
- Noise Level : Less than 50dB
- Low noise, stable performance, quality assurance
Typical Applications
Fully automatic electronic door lock
- Office Automatic Equipments
- Printer/paper Feeder
- Bank Equipments Safe Box
- Ad Equipment
- Analysis Instrument/electronic
- Game Machine
- Household Appliances
- Electronic Door Lock

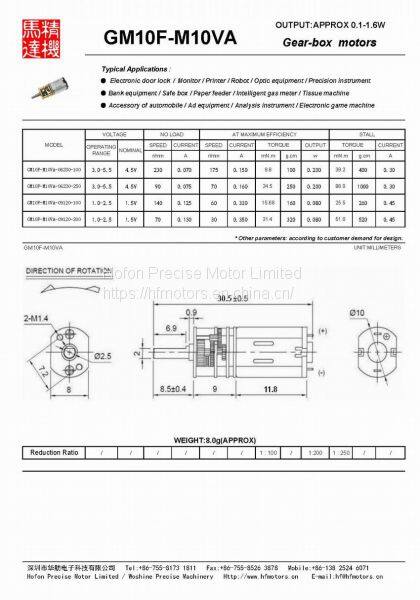

Specifications
The following specifications are only representative of one of our models. Other performance parameters can be customized according to customer requirements
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| r/min | A | r/min | A | mN.m | g.cm | w | mN.m | g.cm | A | ||||
| GM10F-M10VA-06230-100 | 3.0-5.5 | 4.5V | 230 | 0.070 | 175 | 0.150 | 9.8 | 100 | 0.200 | 39.2 | 400 | 0.30 | |
| GM10F-M10VA-06230-250 | 3.0-5.5 | 4.5V | 90 | 0.075 | 70 | 0.160 | 24.5 | 250 | 0.200 | 98.0 | 1000 | 0.30 | |
| GM10F-M10VA-09120-100 | 1.0-2.5 | 1.5V | 140 | 0.125 | 60 | 0.330 | 15.68 | 160 | 0.080 | 25.5 | 260 | 0.45 | |
| GM10F-M10VA-09120-200 | 1.0-2.5 | 1.5V | 70 | 0.130 | 30 | 0.350 | 31.4 | 320 | 0.080 | 51.0 | 520 | 0.45 | |
Competitive Advantage
- 16 years experience in manufacturing motor and gearbox motor
- Experienced Staff: average 12 years experience in R&D , ODM & OEM
- International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
- Competitive Price
- High Product Performance: Low noise, High efficiency, Long lifespan
- Prompt Delivery: 20-25 working days after payment
- Quality Approvals
- Small Orders Accepted
- Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc
Quality Cotrol Test
- Reliability Test & Laboratory
- Noise Test
- Water-proof Test
- Life Test
- Impact Test
- Storage Test
- Salt Spray Test
- Environmental Related Substance
