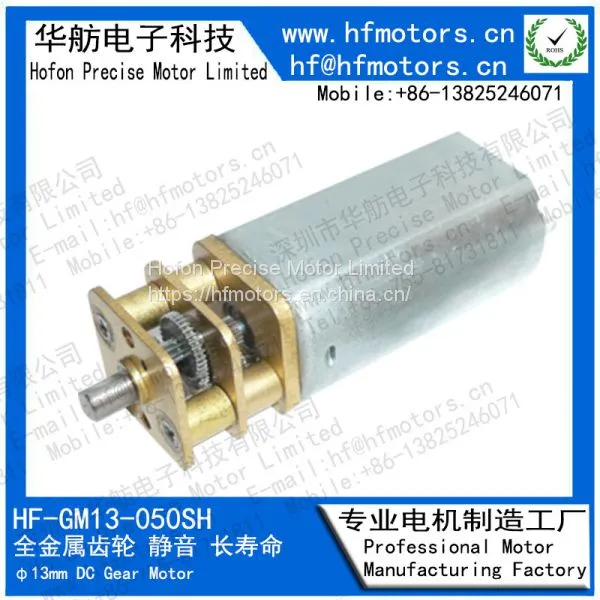

12 Volt Electric Motors With Gear Reduction RoHS / ISO / TS16949 Approval GM13-050SH
US$ 3.60 - 3.90
MOQ: 2000 Pieces
Key Specifications
Get Latest Price
Brand Name:
Hofon
Place of Origin:
China
Model Number:
GM12F-N10VA
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
35 days
Related Products
-
Plastic Geared Stepper Motor 15mm Diameter for Fusion Splicer Robot Toy PG15BY0150US$ 3.60 - 3.90MOQ: 2000 Pieces -
Fully Automatic Electronic Door Lock DC Worm Gear Motor 8V Voltage GM6558-390SAUS$ 3.60 - 3.90MOQ: 2000 Pieces
-
12V DC Motor With Gearbox , Worm Gear Motor 24V for Automobile Clutch GM4058-3162ZYUS$ 3.60 - 3.90MOQ: 2000 Pieces
-
Large Torque DC Gear Motor , 32mm Electric Curtain Intelligent Closes Tool Worm Motor GM4632-370CHUS$ 3.60 - 3.90MOQ: 2000 Pieces
-
Robot DC Gear Motor With Encoder 0.1 - 1.0W Output High Performance GM25-370CH+ENUS$ 3.60 - 3.90MOQ: 2000 Pieces
Brand Name
Hofon
Place of Origin
China
Model Number
GM12F-N10VA
Type
Gear Motor
Certification
ROHS
Torque
2000g.cm
Usage
Boat, Car, Electric Bicycle, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Other
Voltage(V)
6.0V Or Customized
Output Power
0.6W
Continuous Current(A)
0.07
Speed(RPM)
65
Commutation
Brush
Detailed Product Description
| Voltage Range: | 7V Or Customized | Material: | Metal Gear High Precision Gear |
|---|---|---|---|
| Diameter: | 13mm | No Load Speed: | 66RPM |
| No Load Current: | 96mA | Rated Load Torque: | 1300g.cm |
| Rated Load Speed: | 52RPM | Rated Load Current: | 280mA |
| Gear Ratio: | 150:1 |
13mm 5V / 6V / 12V Metal Gear-box motor DC Gear Motor Low Noise andHigh precision gear
- DC Worm Gear-Box Motor
- Diameter : Φ10.0mm
- Output : APPROX 0.1~1.0W
- Noise Level : Less than 50dB
- Low noise, stable performance, quality assurance
Typical Applications
Fully automatic electronic door lock
- Office Automatic Equipments
- Printer/paper Feeder
- Bank Equipments Safe Box
- Ad Equipment
- Analysis Instrument/electronic
- Game Machine
- Household Appliances
- Electronic Door Lock

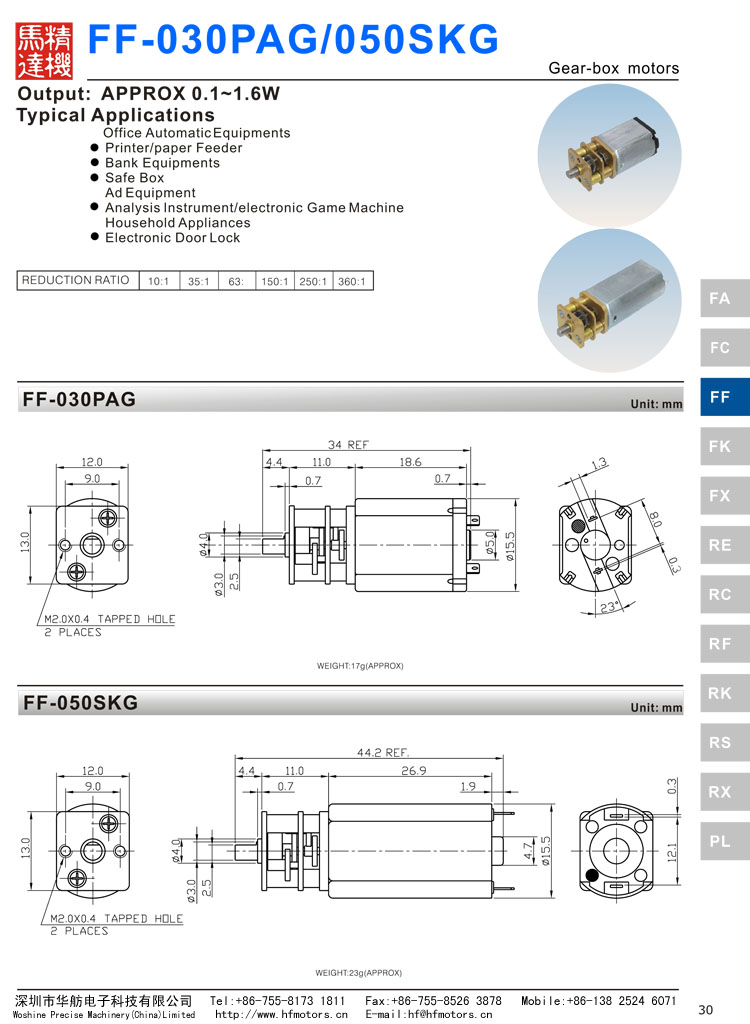

Specifications
The following specifications are only representative of one of our models. Other performance parameters can be customized according to customer requirements
| Reduction Ratio | 1 : 10 | 1 : 35 | 1 : 63 | 1 : 150 | 1 : 250 | 1 : 360 | / | / | / | / | / | / | |
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| r/min | A | r/min | A | mN.m | g.cm | w | mN.m | g.cm | A | ||||
| GM13F-050SH-11170-150 | 5.0-8.0 | 7.0V | 66 | 0.096 | 52 | 0.280 | 127.5 | 1300 | 1.960 | 392.2 | 4000 | 0.90 | |

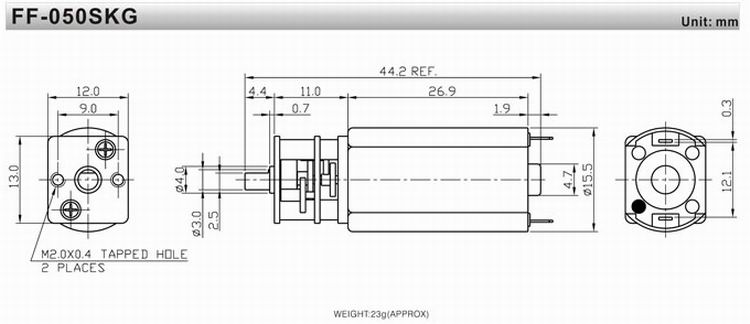

Drawing
Product Details Show
Competitive Advantage
- 16 years experience in manufacturing motor and gearbox motor
- Experienced Staff: average 12 years experience in R&D , ODM & OEM
- International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
- Competitive Price
- High Product Performance: Low noise, High efficiency, Long lifespan
- Prompt Delivery: 20-25 working days after payment
- Quality Approvals
- Small Orders Accepted
- Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc
Quality Cotrol Test
- Reliability Test & Laboratory
- Noise Test
- Water-proof Test
- Life Test
- Impact Test
- Storage Test
- Salt Spray Test
- Environmental Related Substance
