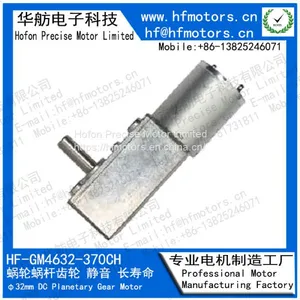

Large Torque DC Gear Motor , 32mm Electric Curtain Intelligent Closes Tool Worm Motor GM4632-370CH
US$ 3.60 - 3.90
MOQ: 2000 Pieces
Key Specifications
Get Latest Price
Brand Name:
Hofon
Place of Origin:
China
Model Number:
GM12F-N10VA
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
35 days
Related Products
-
Robot DC Gear Motor With Encoder 0.1 - 1.0W Output High Performance GM25-370CH+ENUS$ 3.60 - 3.90MOQ: 2000 Pieces -
12mm DC Gear Motor With Hall Encoder 5V / 6V / 12V Metal Gearbox Motor for Robot GM12-N30VA+ENUS$ 3.60 - 3.90MOQ: 2000 Pieces
-
Hall Encoder 5V DC Gear Motor , 12 Volt Motor With Gearbox Low Noise GM12-N20VA+ENUS$ 3.60 - 3.90MOQ: 2000 Pieces
-
Show Stand Robot Toy Plastic Gear Motor 50dB Maximum Noise Level PG50F500CHUS$ 3.60 - 3.90MOQ: 2000 Pieces
-
Customized Plastic 24V Gear Reduction Motor 12 Volt DC Motor With Gearbox PG32F300CHUS$ 3.60 - 3.90MOQ: 2000 Pieces
Brand Name
Hofon
Place of Origin
China
Model Number
GM12F-N10VA
Type
Gear Motor
Certification
ROHS
Torque
2000g.cm
Usage
Boat, Car, Electric Bicycle, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Other
Voltage(V)
12.0V Or Customized
Output Power
0.6W
Continuous Current(A)
0.07
Speed(RPM)
65
Commutation
Brush
Detailed Product Description
| Voltage Range: | 12V Or Customized | Material: | Metal Gear |
|---|---|---|---|
| Diameter: | 32mm | No Load Speed: | 20RPM |
| No Load Current: | 75mA | Rated Load Torque: | 7000g.cm |
| Rated Load Speed: | 15RPM | Rated Load Current: | 250mA |
| Gear Ratio: | 337:1 |
32mm Metal 12V DC Worm Gear motor Large Torque For Electric curtain Intelligent closestool
- DC Worm Gear-Box Motor
- Diameter : Φ32.0mm
- Output : APPROX 0.1~5.0W
- Noise Level : Less than 50dB
- Low noise, stable performance, quality assurance
Typical Applications
Electric curtain Office Automatic Equipments Printer/paper Feeder Bank Equipments Safe Box Ad Equipment Analysis Instrument/electronic Game Machine Household Appliances Electronic Door Lock
Specifications
The following specifications are only representative of one of our models. Other performance parameters can be customized according to customer requirements
| REDUCTION RATIO | 1:32 | 1:65 | 1:158 | 1:200 | 1:337 | 1:564 | 1:1019 | / | / | / | / | ||
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| r/min | A | r/min | A | mN.m | g.cm | w | mN.m | g.cm | A | ||||
| GM4632-370CH-16250-337-18.5D | 5.0-14.0 | 12.0V | 20 | 0.075 | 15 | 0.250 | 686 | 7000 | 3.000 | 1274MAX | 13000MAX | 1.60 | |
Drawing
Product Details Show
For more information, please contact us directly or through our sales and representative offices.
Quality Cotrol Test
Reliability Test & Laboratory
Noise Test
Water-proof Test
Life Test
Impact Test
Storage Test
Salt Spray Test
Environmental Related Substance
Competitive Advantage
- 16 years experience in manufacturing motor and gearbox motor
- Experienced Staff: average 12 years experience in R&D , ODM & OEM
- International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
- Competitive Price
- High Product Performance: Low noise, High efficiency, Long lifespan
- Prompt Delivery: 20-25 working days after payment
- Quality Approvals
- Small Orders Accepted
- Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc
