Home > Electrical & Electronics > Electric Motor > DC Motor > High Precision Gear 5V 6V 12V Small High Torque DC Motor / Gear Reduction Motor GM12-N20VA
High Precision Gear 5V 6V 12V Small High Torque DC Motor / Gear Reduction Motor GM12-N20VA
US$ 3.28 - 3.60
MOQ: 2000 Pieces
Key Specifications
Get Latest Price
Brand Name:
Hofon
Place of Origin:
China
Model Number:
GM12F-N10VA
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
35 days
Related Products
-
484RPM Rated Load Speed DC Gear Motor 12mm Diameter for Game Machine GM12-N30VAUS$ 3.28 - 3.60MOQ: 2000 Pieces -
Small DC Gear Motor , Customized Voltage DC Motor Advertisement Equipment Use GM13-030SAUS$ 3.60 - 3.90MOQ: 2000 Pieces
-
12 Volt Electric Motors With Gear Reduction RoHS / ISO / TS16949 Approval GM13-050SHUS$ 3.60 - 3.90MOQ: 2000 Pieces
-
Plastic Geared Stepper Motor 15mm Diameter for Fusion Splicer Robot Toy PG15BY0150US$ 3.60 - 3.90MOQ: 2000 Pieces
-
Fully Automatic Electronic Door Lock DC Worm Gear Motor 8V Voltage GM6558-390SAUS$ 3.60 - 3.90MOQ: 2000 Pieces
Brand Name
Hofon
Place of Origin
China
Model Number
GM12F-N10VA
Type
Gear Motor
Certification
ROHS
Torque
2000g.cm
Usage
Boat, Car, Electric Bicycle, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Other
Voltage(V)
6.0V Or Customized
Output Power
0.6W
Continuous Current(A)
0.07
Speed(RPM)
65
Commutation
Brush
Detailed Product Description
| Voltage Range: | 5V Or Customized | Material: | Metal Gear High Precision Gear |
|---|---|---|---|
| Diameter: | 12mm | No Load Speed: | 98RPM |
| No Load Current: | 32mA | Rated Load Torque: | 422g.cm |
| Rated Load Speed: | 77RPM | Rated Load Current: | 122mA |
| Gear Ratio: | 150:1 |
12mm 5V / 6V / 12V Metal Gear-box motor DC Gear Motor Low Noise and Large Torque High precision gear
- DC Worm Gear-Box Motor
- Diameter : Φ10.0mm
- Output : APPROX 0.1~1.0W
- Noise Level : Less than 50dB
- Low noise, stable performance, quality assurance
Typical Applications
Fully automatic electronic door lock
- Office Automatic Equipments
- Printer/paper Feeder
- Bank Equipments Safe Box
- Ad Equipment
- Analysis Instrument/electronic
- Game Machine
- Household Appliances
- Electronic Door Lock
Specifications
The following specifications are only representative of one of our models. Other performance parameters can be customized according to customer requirements
| Reduction Ratio | 1 : 3 | 1 : 5 | 1 : 10 | 1 : 30 | 1 : 50 | 1 : 63 | 1 : 100 | 1 : 150 | 1 : 210 | 1 : 250 | 1 : 298 | 1 : 1000 | |
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| r/min | A | r/min | A | mN.m | g.cm | w | mN.m | g.cm | A | ||||
| GM12F-N20VA-08260-150 | 3.0-6.0 | 5.0V | 98 | 0.032 | 77.4 | 0.122 | 41.4 | 422.1 | 0.335 | 197.1 | 2010 | 0.46 | |
| GM12F-N20VA-10155-298 | 4.0-7.0 | 6.0V | 75 | 0.045 | 62.3 | 0.224 | 144.0 | 1469 | 0.938 | 847.3 | 8642 | 1.10 | |
| GM12F-N30VA-12120-1000 | 3.0-6.0 | 5.0V | 15 | 0.080 | 11.9 | 0.303 | 642.4 | 6552 | 0.800 | 3058.8 | 31200 | 1.14 | |
| GM12F-N30VA-11130-30 | 4.0-7.0 | 6.0V | 590 | 0.050 | 484 | 0.225 | 15.9 | 162 | 0.800 | 88.2 | 900 | 1.02 | |

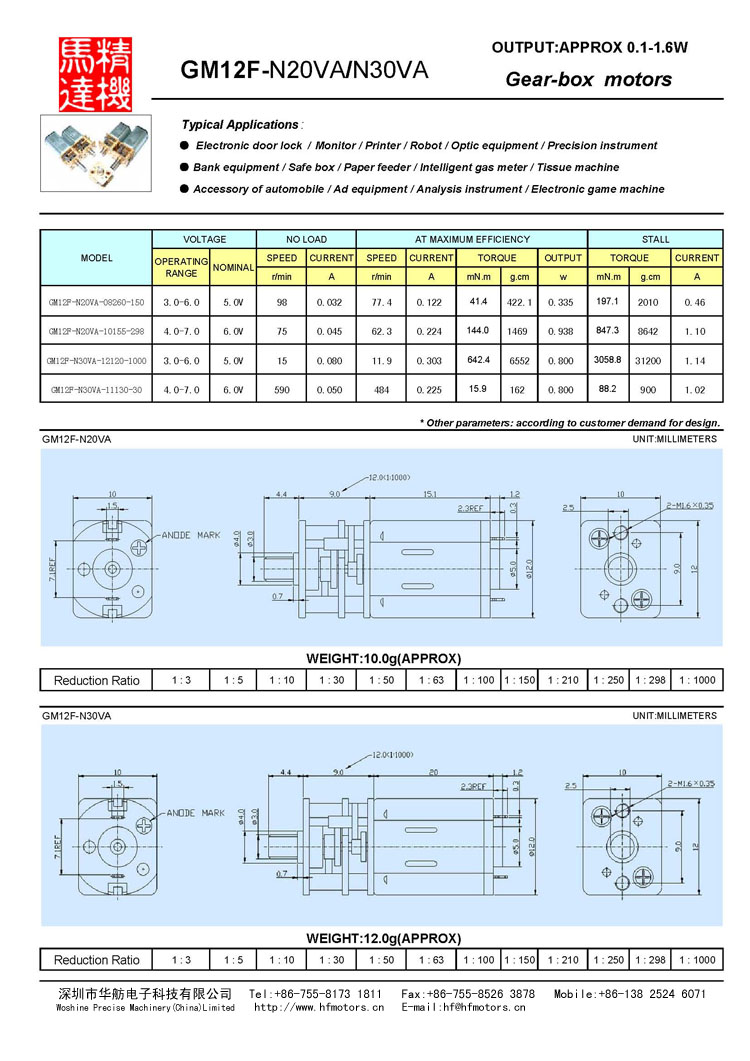

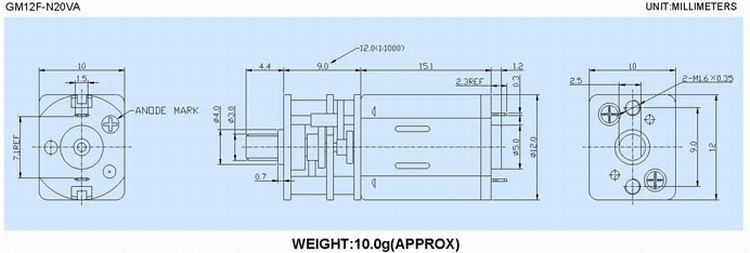

Drawing
Product Details Show
For more information, please contact us directly or through our sales and representative offices.
Competitive Advantage
- 16 years experience in manufacturing motor and gearbox motor
- Experienced Staff: average 12 years experience in R&D , ODM & OEM
- International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
- Competitive Price
- High Product Performance: Low noise, High efficiency, Long lifespan
- Prompt Delivery: 20-25 working days after payment
- Quality Approvals
- Small Orders Accepted
- Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc
Quality Cotrol Test
- Reliability Test & Laboratory
- Noise Test
- Water-proof Test
- Life Test
- Impact Test
- Storage Test
- Salt Spray Test
- Environmental Related Substance
