Help CenterFully Automatic Electronic Door Lock DC Worm Gear Motor 8V Voltage GM6558-390SA
Related Products
-
12V DC Motor With Gearbox , Worm Gear Motor 24V for Automobile Clutch GM4058-3162ZYUS$ 3.60 - 3.90MOQ: 2000 Pieces -
Large Torque DC Gear Motor , 32mm Electric Curtain Intelligent Closes Tool Worm Motor GM4632-370CHUS$ 3.60 - 3.90MOQ: 2000 Pieces
-
Robot DC Gear Motor With Encoder 0.1 - 1.0W Output High Performance GM25-370CH+ENUS$ 3.60 - 3.90MOQ: 2000 Pieces
-
12mm DC Gear Motor With Hall Encoder 5V / 6V / 12V Metal Gearbox Motor for Robot GM12-N30VA+ENUS$ 3.60 - 3.90MOQ: 2000 Pieces
-
Hall Encoder 5V DC Gear Motor , 12 Volt Motor With Gearbox Low Noise GM12-N20VA+ENUS$ 3.60 - 3.90MOQ: 2000 Pieces
Detailed Product Description
| Voltage Range: | 8V Or Customized | Material: | Metal Gear |
|---|---|---|---|
| Diameter: | 58mm | No Load Speed: | 80RPM |
| No Load Current: | 280mA | Rated Load Torque: | 10000g.cm |
| Rated Load Speed: | 64RPM | Rated Load Current: | 1200mA |
| Gear Ratio: | 91:1 |
58mm 8V Metal DC Worm Gear motor Large Torque Low Noise For Fully Automatic Electronic Door Lock
DC Worm Gear-Box Motor
Diameter : Φ58.0mm
Output : APPROX 0.1~30.0W
Noise Level : Less than 50dB
Low noise, stable performance, quality assurance
Typical Applications
Fully automatic electronic door lock
Office Automatic Equipments
Printer/paper Feeder
Bank Equipments Safe Box
Ad Equipment
Analysis Instrument/electronic
Game Machine
Household Appliances
Electronic Door Lock

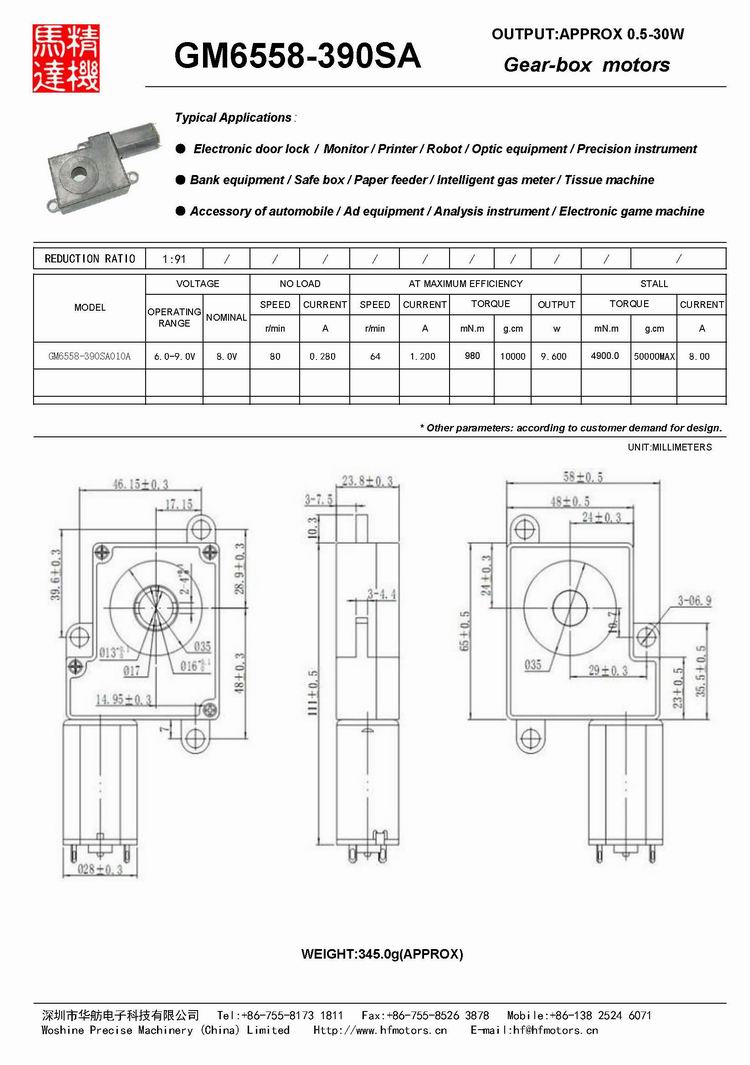

Specifications
The following specifications are only representative of one of our models. Other performance parameters can be customized according to customer requirements
| REDUCTION RATIO | 1:91 | / | / | / | / | / | / | / | / | / | / | ||
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| r/min | A | r/min | A | mN.m | g.cm | w | mN.m | g.cm | A | ||||
| GM6558-390SA010A | 6.0-9.0V | 8.0V | 80 | 0.280 | 64 | 1.200 | 980 | 10000 | 9.600 | 4900.0 | 50000MAX | 8.00 | |

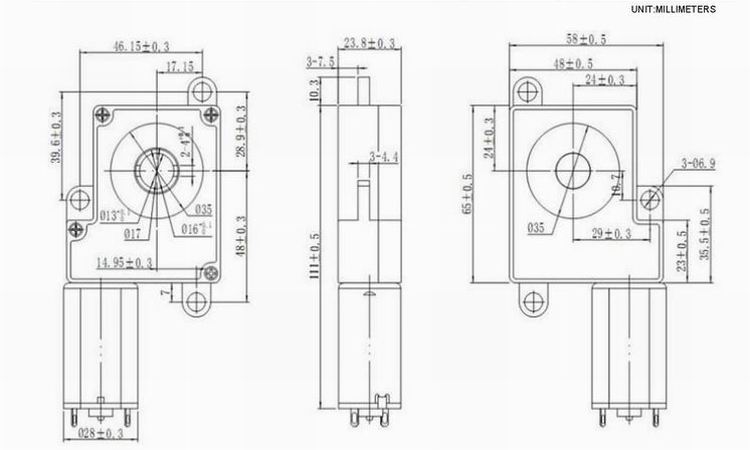

Drawing

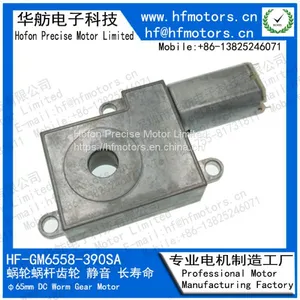

Product Details Show
For more information, please contact us directly or through our sales and representative offices.
Competitive Advantage
16 years experience in manufacturing motor and gearbox motor
Experienced Staff: average 12 years experience in R&D , ODM & OEM
International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
Competitive Price
High Product Performance: Low noise, High efficiency, Long lifespan
Prompt Delivery: 20-25 working days after payment
Quality Approvals
Small Orders Accepted
Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc
Quality Cotrol Test
Reliability Test & Laboratory
Noise Test
Water-proof Test
Life Test
Impact Test
Storage Test
Salt Spray Test
Environmental Related Substance
