Home > Electrical & Electronics > Electric Motor > DC Motor > Robot DC Gear Motor With Encoder 0.1 - 1.0W Output High Performance GM25-370CH+EN
Robot DC Gear Motor With Encoder 0.1 - 1.0W Output High Performance GM25-370CH+EN
US$ 3.60 - 3.90
MOQ: 2000 Pieces
Key Specifications
Get Latest Price
Brand Name:
Hofon
Place of Origin:
China
Model Number:
GM12F-N10VA
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
35 days
Related Products
-
12mm DC Gear Motor With Hall Encoder 5V / 6V / 12V Metal Gearbox Motor for Robot GM12-N30VA+ENUS$ 3.60 - 3.90MOQ: 2000 Pieces -
Hall Encoder 5V DC Gear Motor , 12 Volt Motor With Gearbox Low Noise GM12-N20VA+ENUS$ 3.60 - 3.90MOQ: 2000 Pieces
-
Show Stand Robot Toy Plastic Gear Motor 50dB Maximum Noise Level PG50F500CHUS$ 3.60 - 3.90MOQ: 2000 Pieces
-
Customized Plastic 24V Gear Reduction Motor 12 Volt DC Motor With Gearbox PG32F300CHUS$ 3.60 - 3.90MOQ: 2000 Pieces
-
High Precision Gear DC Gear Motor 24mm Diameter Printer / Paper Feeder Use GM1024-N30VAUS$ 3.60 - 3.90MOQ: 2000 Pieces
Brand Name
Hofon
Place of Origin
China
Model Number
GM12F-N10VA
Type
Gear Motor
Certification
ROHS
Torque
2000g.cm
Usage
Boat, Car, Electric Bicycle, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Other
Voltage(V)
12.0V Or Customized
Output Power
0.6W
Continuous Current(A)
0.07
Speed(RPM)
65
Commutation
Brush
Detailed Product Description
| Voltage Range: | 6V Or Customized | Material: | Metal Gear High Precision Gear |
|---|---|---|---|
| Diameter: | 25mm | No Load Speed: | 14RPM |
| No Load Current: | 50mA | Rated Load Torque: | 4100g.cm |
| Rated Load Speed: | 11RPM | Rated Load Current: | 220mA |
| Gear Ratio: | 286:1 |

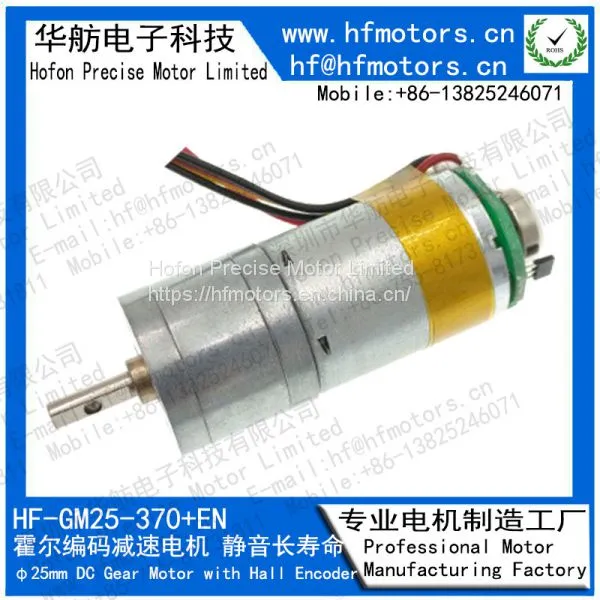

25mm With Hall Encoder 5V / 6V / 12V Metal Gear-box motor DC Gear Motor For Robot
- DC Worm Gear-Box Motor
- Diameter : Φ25.0mm
- Output : APPROX 0.1~1.0W
- Noise Level : Less than 50dB
- Low noise, stable performance, quality assurance
Typical Applications
Fully automatic electronic door lock
- Office Automatic Equipments
- Printer/paper Feeder
- Bank Equipments Safe Box
- Ad Equipment
- Analysis Instrument/electronic
- Game Machine
- Household Appliances
- Electronic Door Lock
Specifications
The following specifications are only representative of one of our models. Other performance parameters can be customized according to customer requirements
| Reduction Ratio | 1 : 9.6 | 1 : 26.9 | 1 :35 | 1 : 47 | 1 : 78 | 1 : 103 | 1:130 | 1:172 | 1:227 | 1:286 | 1:378 | 1:499 | |
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| r/min | A | r/min | A | mN.m | g.cm | w | mN.m | g.cm | A | ||||
| GM25-370CH-16240-286+EN | 5.0-8.0 | 6.0V | 14 | 0.050 | 11 | 0.220 | 401 | 4100 | 0.480 | 2196.0 | 22400 | 0.93 | |
Drawing
Product Details Show
For more information, please contact us directly or through our sales and representative offices.
Competitive Advantage
- 16 years experience in manufacturing motor and gearbox motor
- Experienced Staff: average 12 years experience in R&D , ODM & OEM
- International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
- Competitive Price
- High Product Performance: Low noise, High efficiency, Long lifespan
- Prompt Delivery: 20-25 working days after payment
- Quality Approvals
- Small Orders Accepted
- Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc
Quality Cotrol Test
- Reliability Test & Laboratory
- Noise Test
- Water-proof Test
- Life Test
- Impact Test
- Storage Test
- Salt Spray Test
- Environmental Related Substance
