37mm Geared Motor With Encoder 3V 6V 12V Robot DC Gear Motor 0.1 - 100.0W Output High Performance GM37-3429SA+EN

37mm Geared Motor With Encoder 3V 6V 12V Robot DC Gear Motor 0.1 - 100.0W Output High Performance GM37-3429SA+EN thumbnail-1
37mm Geared Motor With Encoder 3V 6V 12V Robot DC Gear Motor 0.1 - 100.0W Output High Performance GM37-3429SA+EN photo-1
US$ 11.5 - 12.6 MOQ: 2000 Pieces
Key Specifications
Get Latest Price
Brand Name:
Hofon
Place of Origin:
China
Model Number:
GM37-3429SA+EN
Contact Supplier Request Quote Chat Now
Hofon Precise Motor Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
35 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Hofon
Place of Origin China
Model Number GM37-3429SA+EN
Type Gear Motor
Certification ROHS
Torque 20000g.cm
Usage Boat, Car, Electric Bicycle, Home Appliance
Construction Permanent Magnet
Efficiency IE 1
Protect Feature Other
Voltage(V) 6.0V Or Customized
Output Power 0.6W
Continuous Current(A) 0.07
Speed(RPM) 30
Commutation Brush

Detailed Product Description

Voltage Range: 6V Or Customized Material: Metal Gear High Precision Gear
Diameter: 37mm No Load Speed: 14RPM
No Load Current: 50mA Rated Load Torque: 4100g.cm
Rated Load Speed: 11RPM Rated Load Current: 220mA
Gear Ratio: 286:1



25mm With Hall Encoder 5V / 6V / 12V Metal Gear-box motor DC Gear Motor For Robot



  • DC Worm Gear-Box Motor

  • Diameter : Φ25.0mm

  • Output : APPROX 0.1~1.0W

  • Noise Level : Less than 50dB

  • Low noise, stable performance, quality assurance


Typical Applications


  • Fully automatic electronic door lock

  • Office Automatic Equipments

  • Printer/paper Feeder

  • Bank Equipments Safe Box

  • Ad Equipment

  • Analysis Instrument/electronic

  • Game Machine

  • Household Appliances

  • Electronic Door Lock


Specifications

The following specifications are only representative of one of our models. Other performance parameters can be customized according to customer requirements



Reduction Ratio 1 : 9.6 1 : 26.9 1 :35 1 : 47 1 : 78 1 : 103 1:130 1:172 1:227 1:286 1:378 1:499



MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A mN.m g.cm w mN.m g.cm A
GM25-370CH-16240-286+EN 5.0-8.0 6.0V 14 0.050 11 0.220 401 4100 0.480 2196.0 22400 0.93
　 　 　 　 　 　 　 　 　 　 　 　 　
　 　 　 　 　 　 　 　 　 　 　 　 　

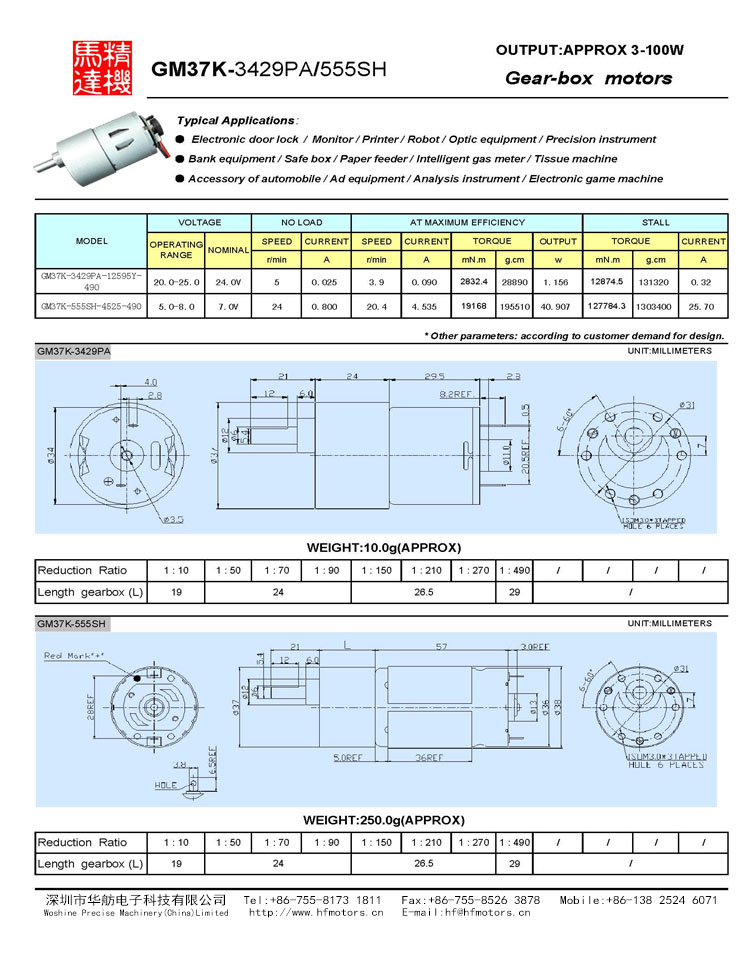

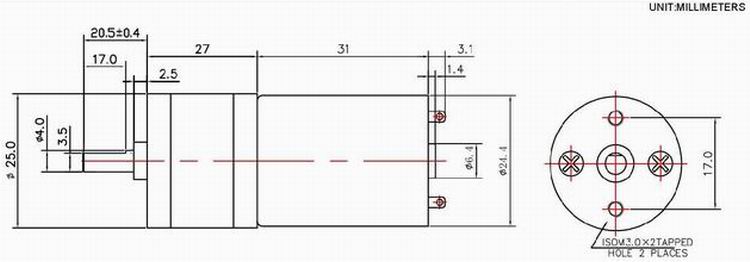

Drawing


37mm Geared Motor with Encoder 3V 6V 12V Robot DC Gear Motor 0.1 - 100.0W Output High Performance


Product Details Show


37mm Geared Motor with Encoder 3V 6V 12V Robot DC Gear Motor 0.1 - 100.0W Output High Performance



Competitive Advantage


  • 16 years experience in manufacturing motor and gearbox motor

  • Experienced Staff: average 12 years experience in R&D , ODM & OEM

  • International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949

  • Competitive Price

  • High Product Performance: Low noise, High efficiency, Long lifespan

  • Prompt Delivery: 20-25 working days after payment

  • Quality Approvals

  • Small Orders Accepted

  • Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc



Quality Cotrol Test


  • Reliability Test & Laboratory

  • Noise Test

  • Water-proof Test

  • Life Test

  • Impact Test

  • Storage Test

  • Salt Spray Test

  • Environmental Related Substance
