Piping Machine
NAEC was established in year 2001, and has been devoting to research and development of Piping Machines, which consist of automatic pipe cutting machine, automatic pipe end beveling machine, pipe conveyor system, multi-function pipe fitting up machine and automatic pipe welding machine.
Applicable Industries: Oil & Gas Plants, Oil Refinery &Petrochemical Facilities, Onshore & Offshore Facilities, Nuclear Power Plants, Shipbuilding, Power Plants, etc.
Highlights：
l realize 80% automated fabrication rate
l matched with pipe spool lean fabrication software management system realize 0.25manhour/DI productivity
l reduce client's fabrication cost
l guarantee client's fabrication quality
l improve client's competitiveness
Technical Description
Suit for Pipe Diameter: |
2 to 24inch, 4-32inch, 12-48inch, 24-60inch |
Suit for Pipe Material: |
CS, SS, ALS |
Suit for Pipe Wall Thickness: |
Max. 70mm |
Suit for Pipe Length: |
12M |
Cutting mode: |
Thermal cutting or cold cutting |
Cutting Precision: |
1mm |
Cutting Self Measuring Function |
Included |
Conveying Speed: |
2-20 m/min |
Fitting-up Mode: |
Motorized fitting up |
Welding Type: |
Automatic root pass, fill and cap pass |
Welding Process: |
GTAW, SAW, GMAW, GMAW-P, FCAW are available in one station |
Management software: |
Pipe Spool Lean Fabrication Software Management System |
Average Productivity: |
0.25manhour/DI |

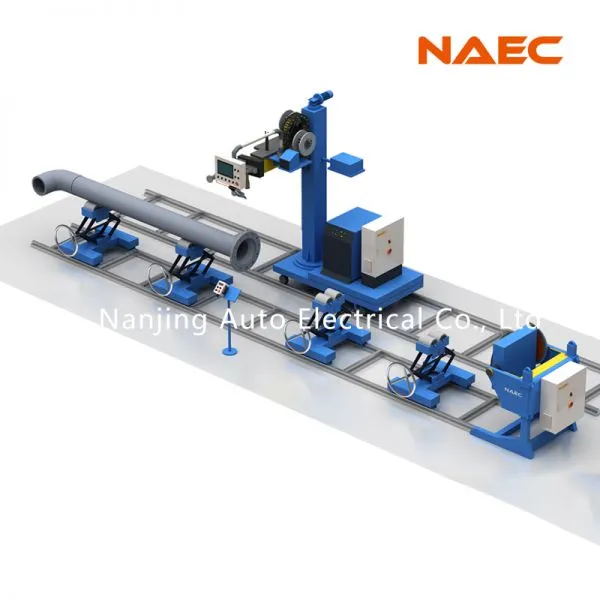

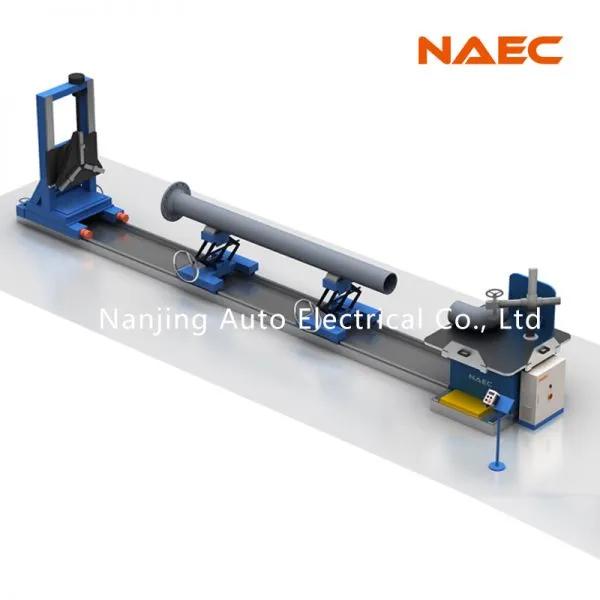

Piping Machine configuration:
Fabrication Procedure |
Machines/stations |
Cutting: |
5-axis flame/plasma cutting machine Band cutting machine All-in-one pipe cutting and beveling machine |
Beveling: |
Pipe end beveling machine |
Conveying: |
Conveying system |
Pipe/fittings storage: |
Pipes rack/ fittings rack |
Pipe hoist: |
Jib crane/ overhead crane |
Fitting-up |
Multi-function fitting up station |
Welding |
Automatic pipe welding station |
Q&A:
Q:Can Piping Machine process compound V bevel?
A: Yes, it can process single V, compound V and U type bevel.
Q: How to control the misalignment?
A: Several steps can control the misalignment and get good welding quality.
1.Precise cutting & beveling prepare better welding condition.
2.Control misalignment during fitting-up.
3. Our automatic welding station can allow 0-3mm misalignment and get good welding quality.
Q: What's the root pass method?
A: Usually we recommend automatic GTAW or RMD for root pass. While RMD is not acceptable by some users, we can support client to do PQR for different welding methods.
Q:What's the welding power brand?
A: It's USA MILLER.
Q: How to control welding quality?
A: Except to control every step processing quality before welding, we have programmed 40 sets WPS in our welding station for operate choose suitable WPS.
Q:How to deal with heavy thick wall pipes?
A: We have heavy duty type pipe welding station which can weld heavy thick wall pipes, such as power plant pipe spools.
Q: Can this Piping Machines process SS pipes?
A: We have Piping Machine designed for SS pipe, such as band saw cutting machine for SS pipe cutting. And for all our designed Piping Machine, the contact surface of machine and pipe pieces is steel plate covered or rubber material to avoid contamination.
