Help CenterBottom-to-top Tank Construction Solution
Related Products

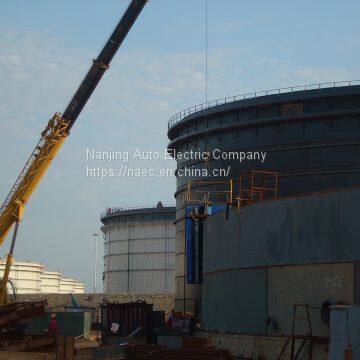

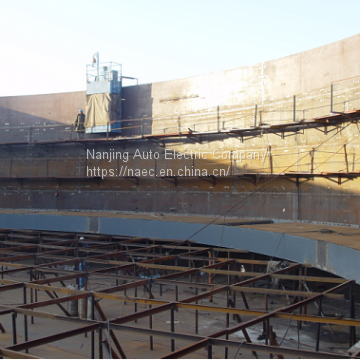

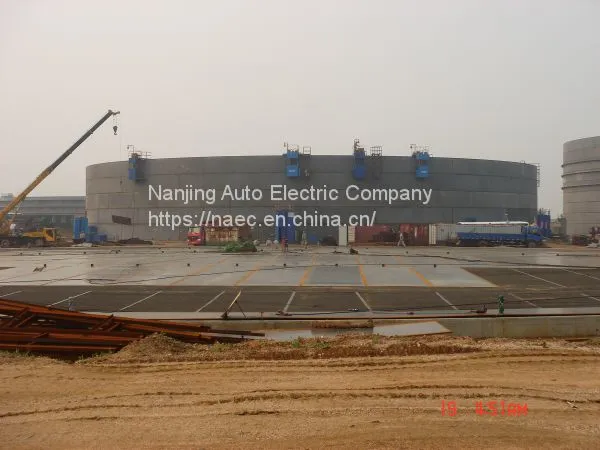

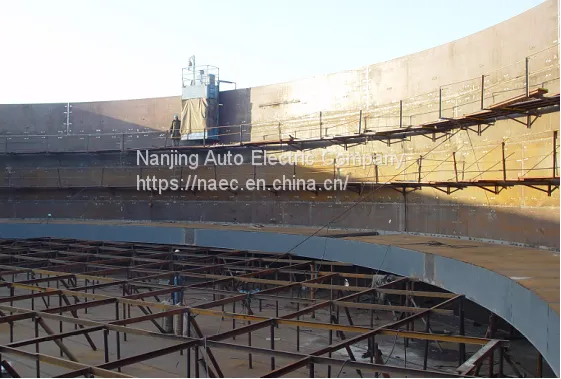

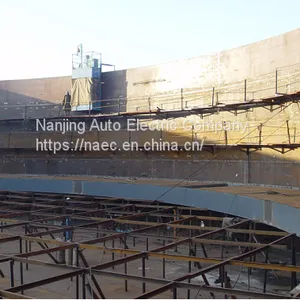

Bottom-to-top Tank Construction Solution is designed for tank farm, storage tanks construction. What we provide include plate fabrication machines, tank welding machines, tank girth seam grinder and welding consumables, etc. The solution we provide adopts flow construction method, support client to finish one tank body construction in one month.
Highlights：
l 3 or 4 tanks to be constructed in one stage
l adopt flow construction method, support client to finish one tank body construction in one month
l X-ray first qualification rate:≥99.5%
l mechanical performance meets low-temperature impact test requirements
l project implementation follows API650, ASME, AWS and other international standards
Technical Description
Suit for Tank Diameter: |
≥9M |
Suit for Tank Material: |
CS/ SS/ ALS |
Suit for Tank Thickness: |
≥6mm |
Suit for Tank Shell Width: |
General tank:1.5M-2.8M LNG tank: up to 4.8M |
Power Source: |
Miller/ Lincoln/ MIA |
AGW Welding Efficiency: |
400-700mm/min |
EGW Welding Efficiency: |
80-150mm/min |
SADW Welding Efficiency: |
350-600mm/min(if it's10*10corner seam) |
System Configuration:
Construction Procedure |
Machines |
Plate cutting: |
CNC flame/plasma plate cutting machine |
Plate beveling: |
Plate edge high efficient milling machine |
Girth seam welding: |
AGW |
Recommend wire of AGW: |
1.6mm;2.0mm;2.4mm;3.2mm |

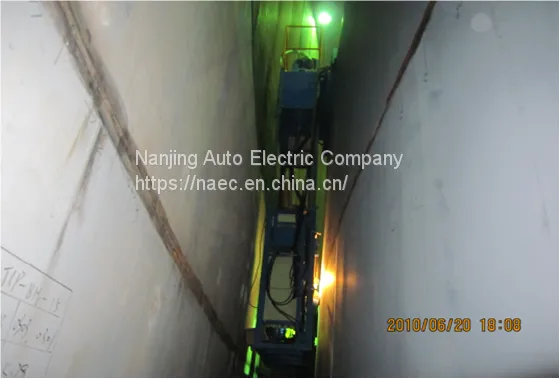

Vertical seam welding: |
EGW |
Recommend wire of EGW: |
1.6mm |
Butt/ corner seam welding: |
SADW |
Recommend wire of SADW: |
3.2-4.0mm |

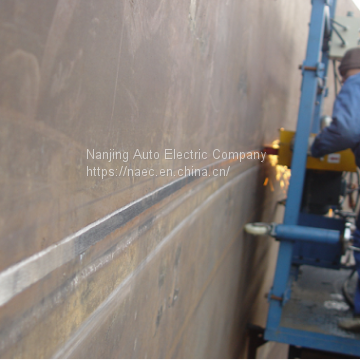

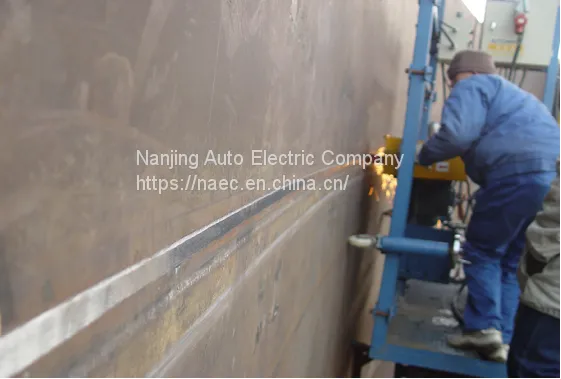

Girth seam grinding: |
Girth seam grinding machine/ grinder |
