Stainless Steel/ Alloy Steel Pipe Spool Fabrication Solution 24-60" is designed for big pipe spool/piping fabrication.
Applicable Industries: Oil & Gas Plants, Oil Refinery &Petrochemical Facilities, Onshore & Offshore Facilities, Power Plants, etc.
Highlights：
l realize 80% automated fabrication rate
l matched with pipe spool lean fabrication software management system realize 0.25manhour/DI productivity
l reduce client's fabrication cost
l guarantee client's fabrication quality
l improve client's competitiveness
Technical Description
Production Line Type: |
Fixed in workshop |
Suit for Pipe Diameter: |
24 to 60inch |
Suit for Pipe Material: |
SS/ALS |
Suit for Pipe Wall Thickness: |
2-70mm |
Suit for Pipe Length: |
12M |
Cutting & Beveling Speed: |
6 mins to finish 2 bevels |
Cutting Precision: |
1mm |
Cutting Self Measuring Function |
Included |
Conveying Speed: |
2-20 m/min |
Fitting-up Mode: |
Motorized fitting up |
Welding Type: |
Automatic root pass, fill and cap pass |
Welding Process: |
TIG/MIG/SAW are available in one station |
Management software: |
Pipe Spool Lean Fabrication Software Management System |
Average Productivity: |
0.25manhour/DI |
System Configuration:
Fabrication Procedure |
Machines/stations |
Cutting: |

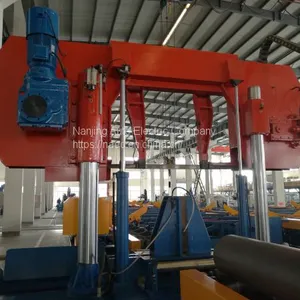

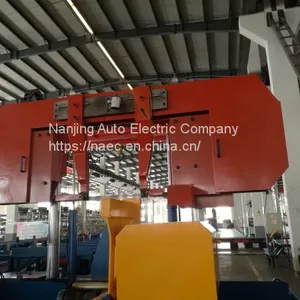

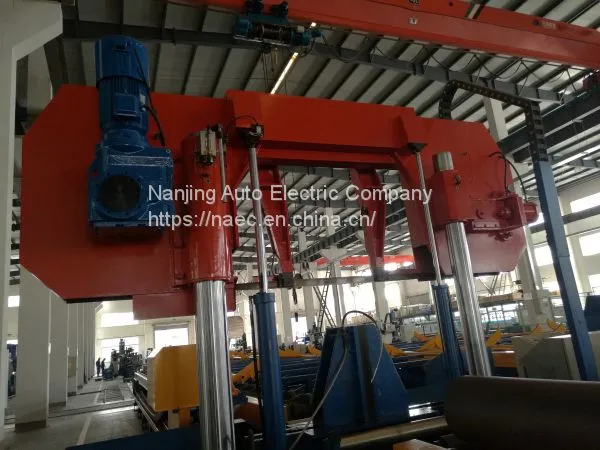

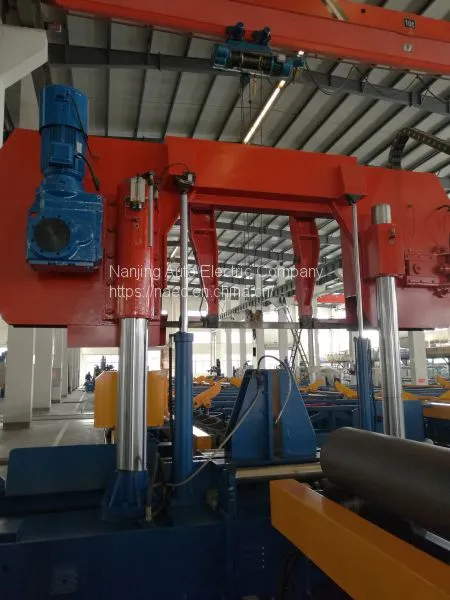

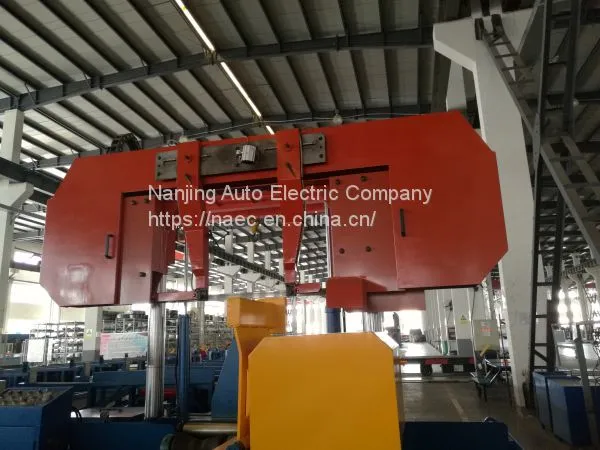

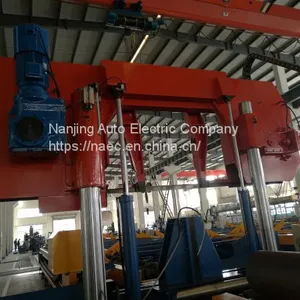

Band Saw cutting machine |
Beveling: |

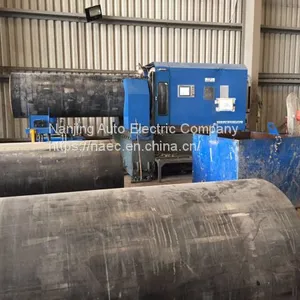

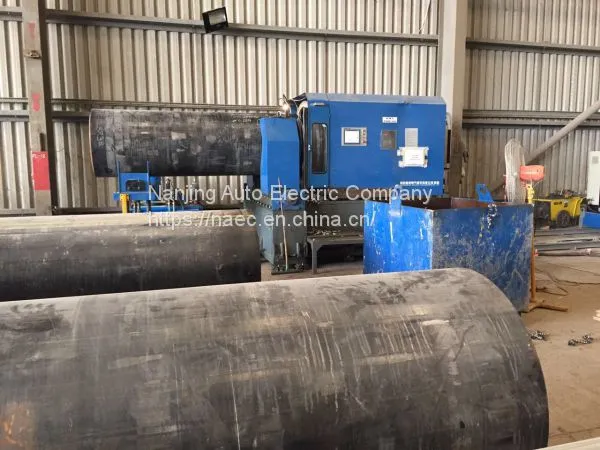

Pipe end beveling machine |
Conveying: |
Pipe moving machine & Conveying system |
Pipe/fittings storage: |
Pipes rack/ fittings rack |
Pipe hoist: |
Overhead crane |
Fitting-up |
Multi-function fitting up station |
Welding |

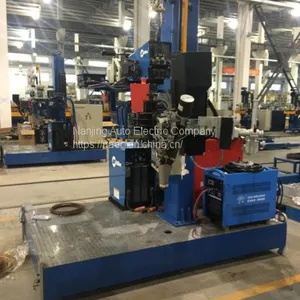

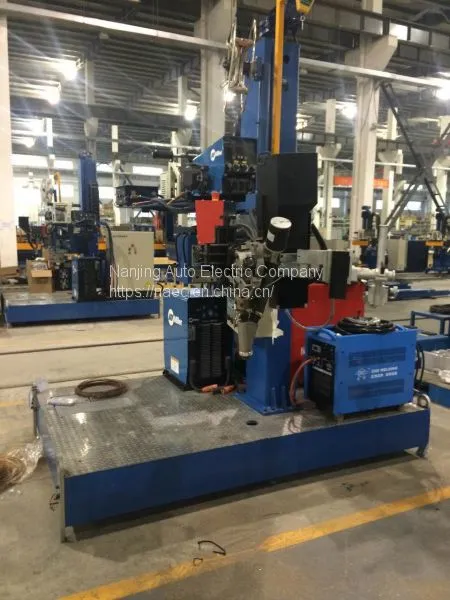

Automatic pipe welding station (heavy-duty) |
